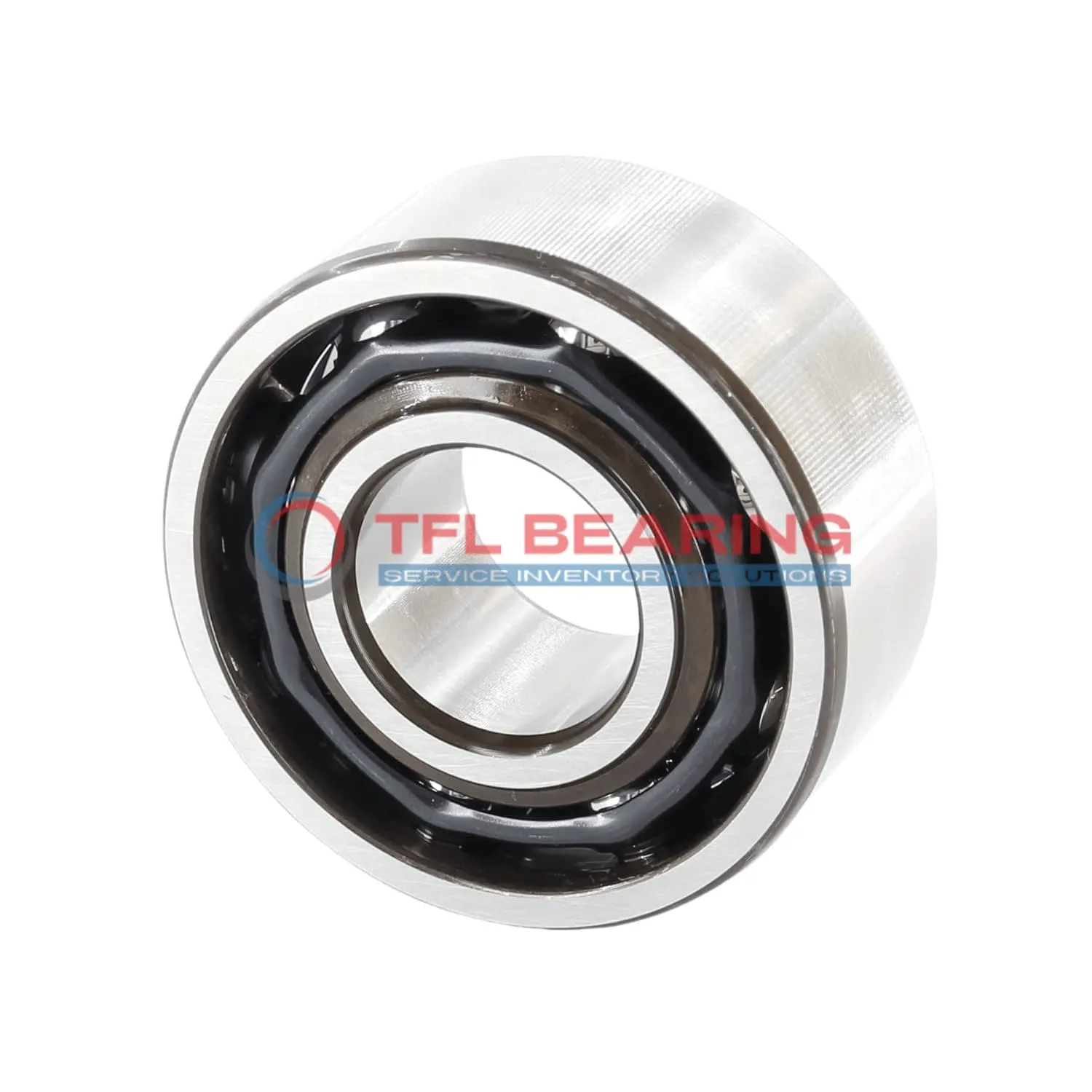

Super Precision Angular Contact Ball Bearings 7032 CD/P4ADGA

Brand: TFL Bearing Interchangeable: SKF 7032 CD/P4ADGA 160 mm × 240 mm × 76 mm Metric Open
Part number: 7032 CD/P4ADGA
Super Precision Angular Contact Ball Bearings 7032 CD/P4ADGA
In Stock
US$1,869.68 / piece
Reference price · volume pricing on request
Get a Quote WhatsApp
  • ISO 9001 quality system
  • Pre-shipment inspection
  • Lead time confirmed with your quote
Dimensions
Bore Dia160 mm
Bore Dia Tolerance-0.004mm to 0
Outer Dia240 mm
Outer Dia Tolerance-0.004mm to 0
Width76 mm
Width Tolerance-0.2mm to 0
Ball Dia25.4 mm
Performance
PreloadExtra light / Class A
Dynamic Radial Load71,775 lbf
Static Radial Load96,750 lbf
Temperature Range- 30°C to 110 °C
Max Speed11,000 rpm
Characteristics
Ball Qty22
Contact Angle15°
Tolerance ClassP4A
System of MeasurementMetric
Seal TypeOpen
Matched ArrangementUniversal matching
Number Of Bearings In Matched Set2
Universal Matching BearingYes, back-to-back (<>), face-to-face (><) or tandem (>>)
For Load DirectionAngular Contact
LubricationLubricated
Weight10.3 kg
Material
Ring MaterialChrome Steel
Ball MaterialChrome Steel
Cage MaterialPhenolic
Dimension drawing · click to enlarge

Description

The 7032 CD/P4ADGA is a super precision angular contact ball bearing with a 160mm bore and 240mm outer diameter, crafted from high-quality chrome steel. It handles radial loads up to 71775 lbf and operates smoothly at speeds up to 11000 RPM.

Its 15° contact angle and universal matching design allow flexible arrangements like back-to-back or face-to-face, ideal for high-precision applications. The phenolic cage ensures durability and reduces friction.

This bearing comes pre-lubricated and works in temperatures from -30°C to 110°C. Weighing 10.3kg, it’s robust yet suitable for precision machinery like spindles or CNC equipment.

Sold as a matched set of two, it’s interchangeable with SKF bearings, offering reliable performance for demanding industrial uses. Compliant with P4A tolerance class for exceptional accuracy.

Features

Performance Features of 7032 CD/P4ADGA Bearing

7032 CD/P4ADGA Bearing is designed with a 15° contact angle, optimising load distribution for angular contact applications.
Its chrome steel rings and balls enhance durability, while the phenolic cage ensures smooth operation at high speeds.

With a dynamic radial load capacity of 71775 lbf, 7032 CD/P4ADGA Bearing handles demanding conditions effortlessly.
The extra light preload (Class A) ensures precision performance, ideal for high-speed applications up to 11,000 rpm.

7032 CD/P4ADGA Bearing operates reliably in temperatures from -30°C to 110°C, maintaining consistent performance.
Its universal matching design allows flexible arrangements, including back-to-back, face-to-face, or tandem configurations.

Application

Industrial Uses of 7032 CD/P4ADGA Bearing
This bearing is commonly used in high-precision machine tools, where its 15° contact angle ensures accurate radial and axial load handling. The phenolic cage offers quiet operation, ideal for environments where noise reduction matters.

Where Is 7032 CD/P4ADGA Bearing Used?
You’ll find it in automotive transmissions, supporting smooth gear shifts thanks to its extra-light preload. Its universal matching design makes it versatile for various mounting configurations.

Built for Heavy-Duty Use: 7032 CD/P4ADGA Bearing
In robotics, 7032 CD/P4ADGA Bearing handles repetitive motions with ease, thanks to its chrome steel construction. The P4A tolerance class ensures consistent performance in demanding applications.

Automotive vs Aerospace: Applications of 7032 CD/P4ADGA Bearing
While it’s great for car transmissions, this bearing also suits aerospace actuators due to its high dynamic load capacity. The lubricated design helps maintain performance even at high speeds.

Perfect Fit for Automation: 7032 CD/P4ADGA Bearing
In automated production lines, 7032 CD/P4ADGA Bearing’s tandem arrangement supports high-speed spindles reliably. Its temperature range makes it suitable for both hot and cold working environments.
