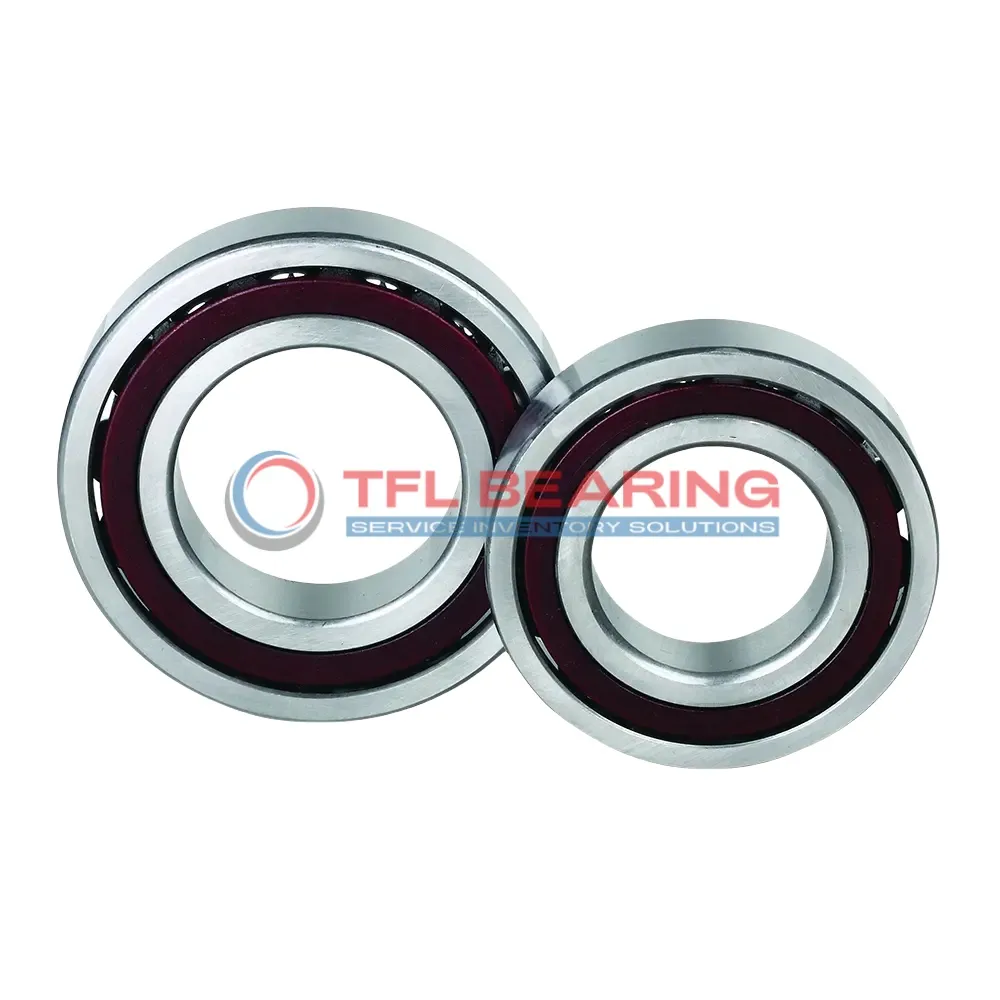

Super Precision Angular Contact Ball Bearings 7032 CD/HCP4AH1

Brand: TFL Bearing Interchangeable: SKF 7032 CD/HCP4AH1 160 mm × 240 mm × 38 mm Metric Open
Part number: 7032 CD/HCP4AH1
Super Precision Angular Contact Ball Bearings 7032 CD/HCP4AH1
In Stock
Price on request
Send your part number and quantity for a quote
Get a Quote WhatsApp
  • ISO 9001 quality system
  • Pre-shipment inspection
  • Lead time confirmed with your quote
Dimensions
Bore Dia160 mm
Bore Dia Tolerance-0.004mm to 0
Outer Dia240 mm
Outer Dia Tolerance-0.004mm to 0
Width38 mm
Width Tolerance-0.2mm to 0
Ball Dia25.4 mm
Performance
PreloadAvailable
Dynamic Radial Load43,875 lbf
Static Radial Load48,600 lbf
Temperature Range- 30°C to 110 °C
Max Speed11,000 rpm
Characteristics
Ball Qty22
Contact Angle15°
Tolerance ClassP4A
System of MeasurementMetric
Seal TypeOpen
Matched ArrangementAvailable
Number Of Bearings In Matched Set2
Universal Matching BearingNo
For Load DirectionAngular Contact
LubricationLubricated
Weight4.26 kg
Material
Ring MaterialChrome Steel
Ball MaterialCeramic
Cage MaterialPhenolic
Dimension drawing · click to enlarge

Description

The 7032 CD/HCP4AH1 is a super precision angular contact ball bearing with a 160mm bore and 240mm outer diameter, crafted from high-quality chrome steel. It features a 15° contact angle and ceramic balls for smooth operation.

This bearing handles radial loads up to 43875 lbf and reaches speeds of 11000 RPM, making it suitable for high-performance applications. Its phenolic cage ensures durability and reduced friction.

Designed for angular contact loads, it comes with preload options and matched arrangements for precise alignment. The open seal allows easy lubrication and maintenance.

Ideal for machine tools or precision equipment, it operates in temperatures from -30°C to 110°C. Weighing 4.26kg, it’s robust yet efficient for industrial use. Compliant with P4A tolerance standards for accuracy.

Features

How Is 7032 CD/HCP4AH1 Bearing Engineered for Reliability?

7032 CD/HCP4AH1 Bearing features a 15° contact angle, optimised for angular contact loads and high-speed applications.
The chrome steel rings and ceramic balls enhance durability while reducing friction for smoother operation.

With a dynamic radial load capacity of 43875 lbf, it handles demanding conditions with ease.
The phenolic cage ensures stable performance, even at speeds up to 11,000 rpm.

Its precision P4A tolerance class guarantees consistent accuracy in critical applications.
The open design allows for easy lubrication, maintaining performance over extended periods.

Application

Industrial Uses of 7032 CD/HCP4AH1 Bearing
7032 CD/HCP4AH1 Bearing is commonly used in high-precision machine tools, where its angular contact design ensures accurate spindle rotation. The ceramic balls reduce friction, making it suitable for high-speed operations.

What Makes 7032 CD/HCP4AH1 Bearing a Preferred Choice?
In automotive applications, 7032 CD/HCP4AH1 Bearing supports wheel hubs and transmission systems, offering reliable performance under heavy loads. Its phenolic cage provides stability in varying temperatures.

Perfect Fit for Automation: 7032 CD/HCP4AH1 Bearing
For robotic arms and automated systems, 7032 CD/HCP4AH1 Bearing delivers smooth motion control with minimal vibration. The P4A tolerance class ensures consistent precision in repetitive tasks.

Medical vs Industrial: Where 7032 CD/HCP4AH1 Bearing Excels
In medical imaging devices, 7032 CD/HCP4AH1 Bearing’s chrome steel rings and ceramic balls ensure quiet, long-lasting operation. Industrial pumps benefit from its ability to handle both radial and axial loads.
