Super Precision Angular Contact Ball Bearings 7026 CD/P4ADGC

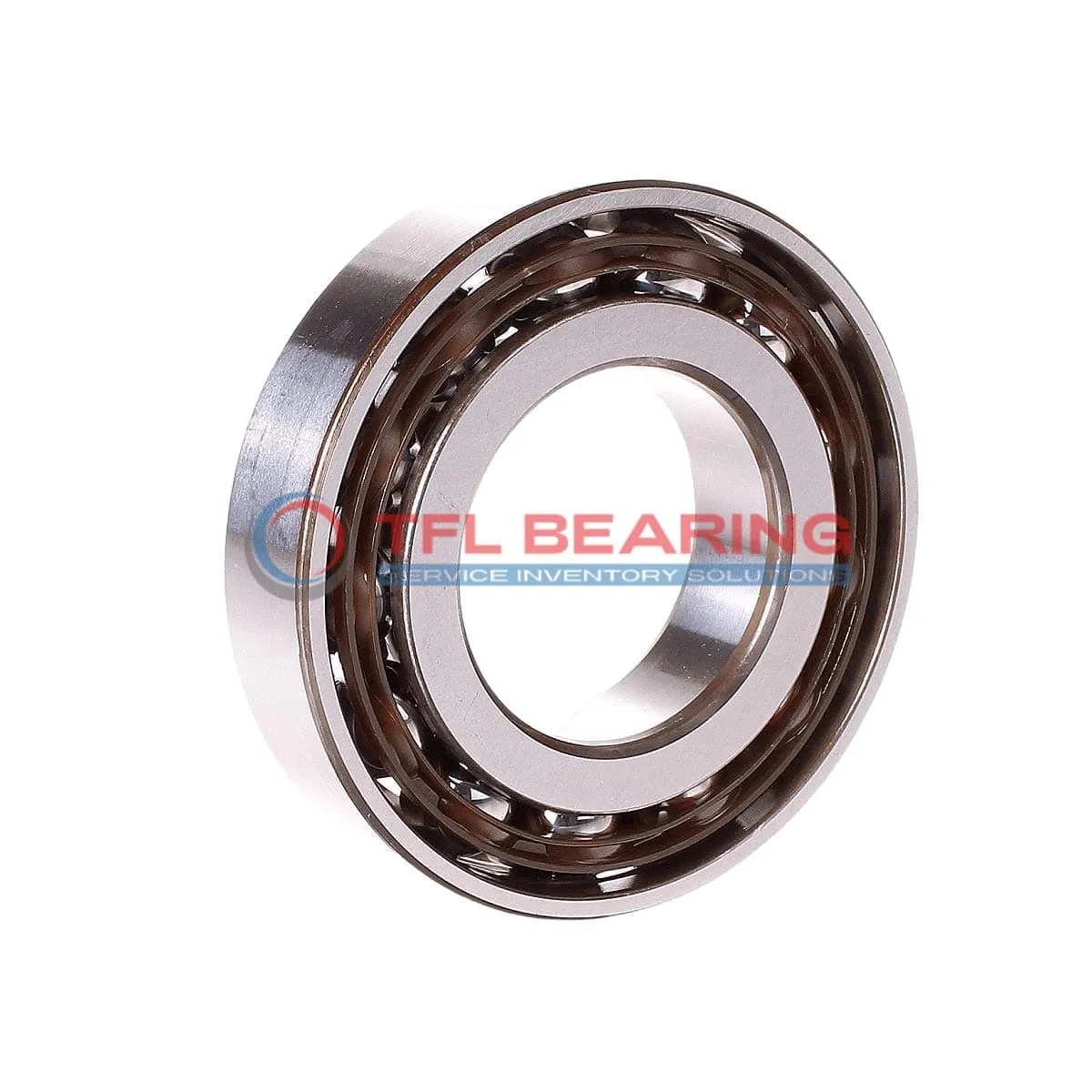

Super Precision Angular Contact Ball Bearings 7026 CD/P4ADGC

The 7026 CD/P4ADGC is a super precision angular contact ball bearing with a 130mm bore and 200mm outer diameter, crafted from durable chrome steel. It handles radial loads up to 54450 lbf and operates smoothly at speeds up to 11000 RPM.

With a 15° contact angle and moderate preload, it offers excellent stability for high-precision applications. The open design and phenolic cage ensure reliable performance and easy maintenance.

This bearing is part of a matched set, suitable for universal arrangements like back-to-back or face-to-face mounting. Ideal for machine tools or spindles where precision and durability are key.

Weighing 6.47kg, it’s robust yet manageable for its size. Compliant with P4A tolerance standards, it’s a top choice for demanding industrial environments.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 7026 CD/P4ADGC
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 130 mm
  • Bore Dia Tolerance -0.004mm to 0
  • Outer Dia 200 mm
  • Outer Dia Tolerance -0.004mm to 0
  • Width 66 mm
  • Width Tolerance -0.2mm to 0
  • Ball Dia 22.225 mm
  • Ball Qty 21
  • Contact Angle 15°
  • Tolerance Class P4A
  • System of Measurement Metric
  • Seal Type Open
  • Matched Arrangement Universal matching
  • Number Of Bearings In Matched Set 2
  • Universal Matching Bearing Yes, back-to-back (<>), face-to-face (><) or tandem (>>)
  • Preload Moderate / Class C
  • For Load Direction Angular Contact
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Phenolic
  • Dynamic Radial Load 54450 lbf
  • Static Radial Load 69750 lbf
  • Lubrication Lubricated
  • Temperature Range - 30°C to 110 °C
  • Max Speed 11000 rpm
  • Weight 6.47 kg
  • Price（$） 1144.125
Super Precision Angular Contact Ball Bearings 7026 CD/P4ADGC dimension drawing
Download DWG Download PDF

Features

Performance Features of 7026 CD/P4ADGC Bearing

7026 CD/P4ADGC Bearing is designed with a 15° contact angle, offering precise angular contact performance.
Its chrome steel rings and balls provide high resistance to radial loads, with a dynamic capacity of 54450 lbf.
The phenolic cage ensures smooth operation at speeds up to 11,000 rpm, reducing friction and wear.
Universal matching allows flexible arrangements like back-to-back or face-to-face, adapting to various applications.

Application

Key Fields for 7026 CD/P4ADGC Bearing
In industrial settings, 7026 CD/P4ADGC Bearing is commonly used in high-precision machine tools, where its moderate preload and universal matching enhance stability. The open design and phenolic cage make it suitable for applications requiring frequent lubrication.

Where Is 7026 CD/P4ADGC Bearing Used?
You’ll often find 7026 CD/P4ADGC Bearing in automotive transmissions, where its angular contact design handles combined loads efficiently. The chrome steel construction ensures durability even under high-speed conditions.

Optimized for Performance: 7026 CD/P4ADGC Bearing
For robotics and automation, 7026 CD/P4ADGC Bearing offers reliable support in robotic arms and CNC machinery. Its P4A tolerance class guarantees precision in repetitive tasks.

Medical vs Industrial: Where 7026 CD/P4ADGC Bearing Excels
In medical imaging devices, 7026 CD/P4ADGC Bearing provides smooth, quiet operation essential for diagnostic accuracy. Meanwhile, in industrial pumps, its high dynamic load capacity ensures long service life.
