Super Precision Angular Contact Ball Bearings 7022 ACE/HCP4ADGA

Super Precision Angular Contact Ball Bearings 7022 ACE/HCP4ADGA

The 7022 ACE/HCP4ADGA is a super precision angular contact ball bearing with a 110mm bore and 170mm outer diameter, crafted from durable chrome steel and ceramic balls. It handles radial loads up to 16380 lbf and operates smoothly at speeds up to 16250 RPM.

With a 25° contact angle and universal matching design, it offers flexibility for back-to-back, face-to-face, or tandem arrangements. The phenolic cage ensures quiet performance and longevity, even in demanding conditions.

This bearing is lubricated for easy maintenance and works in temperatures from -30°C to 110°C. Its extra light preload (Class A) makes it ideal for high-precision applications like machine tools or spindle drives.

Weighing 3.86kg, it comes as a matched set of two bearings, interchangeable with SKF models. Perfect for setups requiring tight tolerances (P4A) and reliable angular contact performance.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 7022 ACE/HCP4ADGA
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 110 mm
  • Bore Dia Tolerance -0.004mm to 0
  • Outer Dia 170 mm
  • Outer Dia Tolerance -0.004mm to 0
  • Width 56 mm
  • Width Tolerance -0.2mm to 0
  • Ball Dia 12.7 mm
  • Ball Qty 30
  • Contact Angle 25°
  • Tolerance Class P4A
  • System of Measurement Metric
  • Seal Type Open
  • Matched Arrangement Universal matching
  • Number Of Bearings In Matched Set 2
  • Universal Matching Bearing Yes, back-to-back (<>), face-to-face (><) or tandem (>>)
  • Preload Extra light / Class A
  • For Load Direction Angular Contact
  • Ring Material Chrome Steel
  • Ball Material Ceramic
  • Cage Material Phenolic
  • Dynamic Radial Load 16380 lbf
  • Static Radial Load 19125 lbf
  • Lubrication Lubricated
  • Temperature Range - 30°C to 110 °C
  • Max Speed 16250 rpm
  • Weight 3.86 kg

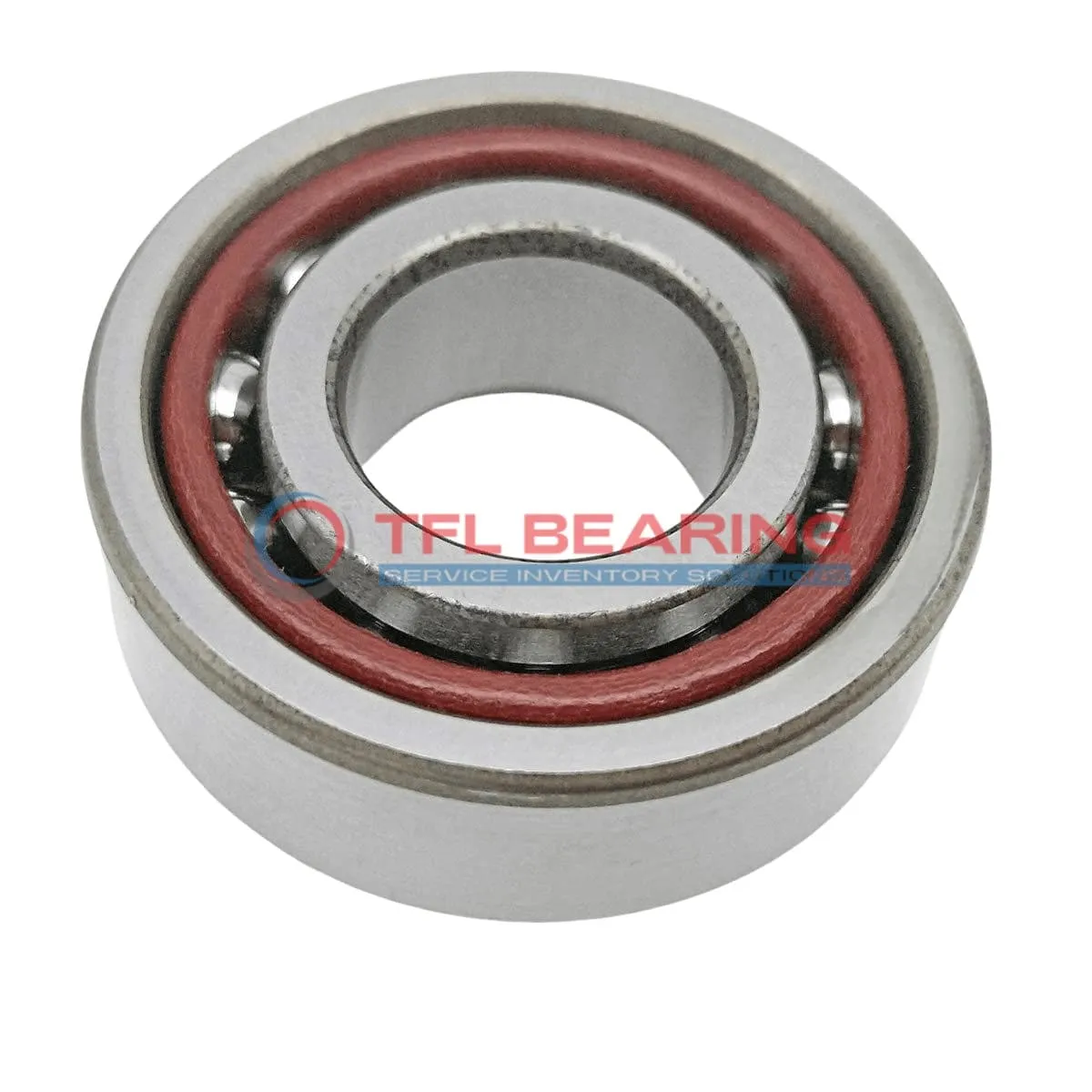

Super Precision Angular Contact Ball Bearings 7022 ACE/HCP4ADGA dimension drawing
Download DWG Download PDF

Features

How Is 7022 ACE/HCP4ADGA Bearing Engineered for Reliability?

7022 ACE/HCP4ADGA Bearing features a 25° contact angle, optimised for handling combined radial and axial loads.
The ceramic balls reduce friction, enhancing speed capabilities up to 16,250 rpm.

Its phenolic cage ensures smooth operation, even at high speeds, while the chrome steel rings provide durability.
With universal matching, it offers flexibility in back-to-back, face-to-face, or tandem arrangements.

The extra light preload (Class A) minimises vibration, making it ideal for precision applications.
Its P4A tolerance class guarantees consistent performance in demanding conditions.

Application

Practical Applications of 7022 ACE/HCP4ADGA Bearing
In high-speed machine tools, 7022 ACE/HCP4ADGA Bearing handles angular contact loads with precision, thanks to its ceramic balls and P4A tolerance class. The universal matching design allows flexible arrangements for back-to-back or face-to-face setups.

Where Is 7022 ACE/HCP4ADGA Bearing Used?
You’ll often find 7022 ACE/HCP4ADGA Bearing in aerospace applications, where its extra-light preload ensures smooth operation in flight control systems. The phenolic cage adds durability while reducing friction at high RPMs.

Optimized for Performance: 7022 ACE/HCP4ADGA Bearing
For robotics and automation, 7022 ACE/HCP4ADGA Bearing offers reliable angular contact support in robotic arms and CNC spindles. Its chrome steel rings and ceramic balls provide a balanced mix of strength and speed.

Automotive vs Aerospace: Applications of 7022 ACE/HCP4ADGA Bearing
In automotive turbochargers, 7022 ACE/HCP4ADGA Bearing manages thrust and radial loads efficiently. Meanwhile, in aerospace gyroscopes, its precision and temperature stability make it a trusted choice.

Essential Roles of 7022 ACE/HCP4ADGA Bearing
Medical imaging devices benefit from 7022 ACE/HCP4ADGA Bearing’s low vibration and high accuracy. The lubricated design ensures quiet operation, critical for sensitive diagnostic equipment.
