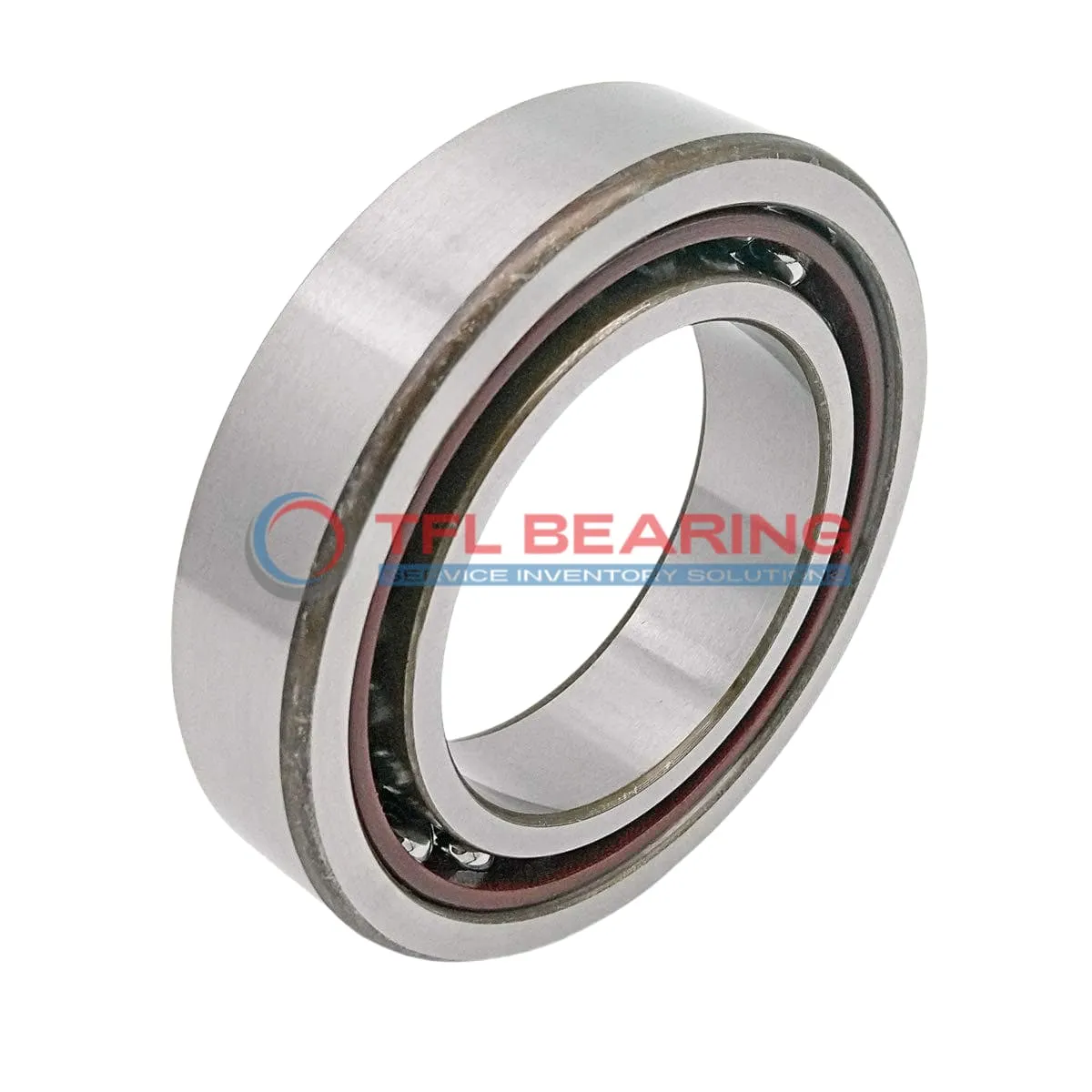

Super Precision Angular Contact Ball Bearings 7022 ACD/P4ALTBTA

Brand: TFL Bearing Interchangeable: SKF 7022 ACD/P4ALTBTA 110 mm × 170 mm × 84 mm Metric Open
Part number: 7022 ACD/P4ALTBTA
Super Precision Angular Contact Ball Bearings 7022 ACD/P4ALTBTA
In Stock
Price on request
Send your part number and quantity for a quote
Get a Quote WhatsApp
  • ISO 9001 quality system
  • Pre-shipment inspection
  • Lead time confirmed with your quote
Dimensions
Bore Dia110 mm
Bore Dia Tolerance-0.004mm to 0
Outer Dia170 mm
Outer Dia Tolerance-0.004mm to 0
Width84 mm
Width Tolerance-0.2mm to 0
Ball Dia19.05 mm
Performance
PreloadExtra light / Class A
Dynamic Radial Load50,625 lbf
Static Radial Load69,750 lbf
Temperature Range- 30°C to 110 °C
Max Speed10,000 rpm
Characteristics
Ball Qty20
Contact Angle25°
Tolerance ClassP4A
System of MeasurementMetric
Seal TypeOpen
Matched Arrangement3 bearings <>> TBT
Number Of Bearings In Matched Set3
Universal Matching BearingNo
For Load DirectionAngular Contact
LubricationLubricated
Weight5.92 kg
Material
Ring MaterialChrome Steel
Ball MaterialChrome Steel
Cage MaterialPhenolic
Dimension drawing · click to enlarge

Description

The 7022 ACD/P4ALTBTA is a super precision angular contact ball bearing with a 110mm bore and 170mm outer diameter, crafted from durable chrome steel. It handles radial loads up to 50625 lbf and spins smoothly at speeds up to 10000 RPM.

Its 25° contact angle and extra light preload ensure smooth operation, while the phenolic cage offers stability. The open design allows for easy lubrication and maintenance.

This set includes three matched bearings arranged in a TBT configuration, ideal for high-precision applications. Suitable for machine tools or spindle systems where accuracy is key.

Weighing 5.92kg, it operates in temperatures from -30°C to 110°C. Compliant with P4A tolerance standards for reliable performance.

Features

Why Choose 7022 ACD/P4ALTBTA Bearing for Precision Tasks?

7022 ACD/P4ALTBTA Bearing features a 25° contact angle, ideal for handling combined radial and axial loads with precision.
Its chrome steel rings and balls ensure durability and consistent performance under high dynamic radial loads of 50,625 lbf.

The phenolic cage maintains ball alignment, reducing friction and enhancing operational smoothness.
With a maximum speed of 10,000 rpm, it excels in high-speed applications while maintaining accuracy.

The extra light preload (Class A) minimises deflection, making it suitable for precision machinery.
Its matched arrangement of three bearings (TBT) ensures balanced load distribution and extended service life.

Operating within a temperature range of -30°C to 110°C, 7022 ACD/P4ALTBTA Bearing performs reliably in varied conditions.
The open design allows for easy lubrication, further enhancing its efficiency and longevity.

Application

Common Applications of 7022 ACD/P4ALTBTA Bearing
7022 ACD/P4ALTBTA Bearing is widely used in high-precision machine tools, where its angular contact design ensures accurate spindle rotation. The extra light preload makes it ideal for applications demanding minimal friction and high-speed performance.

In aerospace systems, 7022 ACD/P4ALTBTA Bearing supports critical components like turbine shafts, thanks to its robust chrome steel construction. The matched arrangement of three bearings enhances stability under heavy radial loads.

For automation equipment, 7022 ACD/P4ALTBTA Bearing’s phenolic cage reduces wear in high-speed robotic arms. Its P4A tolerance class guarantees consistent performance in precision-driven tasks.

Medical imaging devices benefit from 7022 ACD/P4ALTBTA Bearing’s reliable operation and low maintenance needs. The open seal design allows for easy lubrication, extending service life in demanding environments.
