Super Precision Angular Contact Ball Bearings 7022 ACD/HCP4ADBC

Brand: TFL Bearing Interchangeable: SKF 7022 ACD/HCP4ADBC 110 mm × 170 mm × 56 mm Metric Open
Part number: 7022 ACD/HCP4ADBC
Super Precision Angular Contact Ball Bearings 7022 ACD/HCP4ADBC
In Stock
Price on request
Send your part number and quantity for a quote
Get a Quote WhatsApp
  • ISO 9001 quality system
  • Pre-shipment inspection
  • Lead time confirmed with your quote
Dimensions
Bore Dia110 mm
Bore Dia Tolerance-0.004mm to 0
Outer Dia170 mm
Outer Dia Tolerance-0.004mm to 0
Width56 mm
Width Tolerance-0.2mm to 0
Ball Dia19.05 mm
Performance
PreloadModerate / Class C
Dynamic Radial Load37,800 lbf
Static Radial Load46,800 lbf
Temperature Range- 30°C to 110 °C
Max Speed10,000 rpm
Characteristics
Ball Qty20
Contact Angle25°
Tolerance ClassP4A
System of MeasurementMetric
Seal TypeOpen
Matched Arrangement2 bearings <> DB
Number Of Bearings In Matched Set2
Universal Matching BearingNo
For Load DirectionAngular Contact
LubricationLubricated
Weight3.27 kg
Material
Ring MaterialChrome Steel
Ball MaterialCeramic
Cage MaterialPhenolic

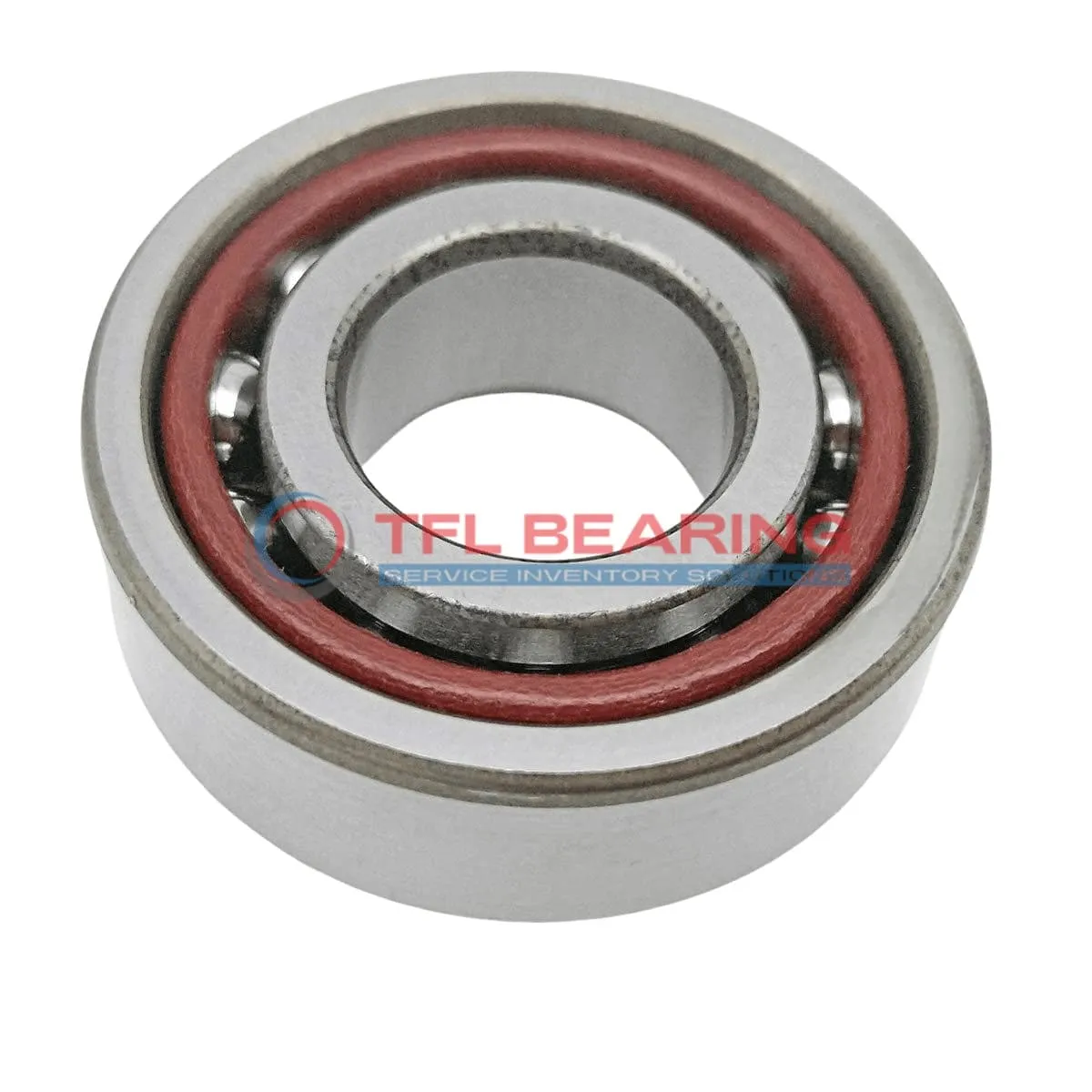

Dimension drawing · click to enlarge

Description

The 7022 ACD/HCP4ADBC is a super precision angular contact ball bearing with a 110mm bore and 170mm outer diameter, designed for high-performance applications. Made from chrome steel and ceramic balls, it offers excellent durability and smooth operation.

With a 25° contact angle and moderate preload, it handles both radial and axial loads efficiently, up to 37800 lbf dynamically. Its phenolic cage ensures stability at speeds up to 10000 RPM, making it suitable for demanding environments.

The open design allows easy lubrication, while the matched pair arrangement (DB configuration) enhances load distribution. Ideal for machine tools or high-speed spindles where precision is key.

Weighing 3.27kg, it operates reliably in temperatures from -30°C to 110°C. Compliant with P4A tolerance standards for consistent performance.

Features

How Does 7022 ACD/HCP4ADBC Bearing Achieve Super Precision?

7022 ACD/HCP4ADBC Bearing features a 25° contact angle, optimised for high-precision angular contact applications.
The ceramic balls and phenolic cage reduce friction, ensuring smooth operation at speeds up to 10,000 rpm.

With a dynamic radial load capacity of 37,800 lbf, it handles demanding tasks reliably.
The chrome steel rings and precise P4A tolerance class contribute to its long service life.

Its matched arrangement (DB) and moderate preload enhance stability in high-performance settings.
The open design allows for easy lubrication, maintaining efficiency in varied temperatures (-30°C to 110°C).

Application

Industrial Uses of 7022 ACD/HCP4ADBC Bearing
This bearing is commonly used in high-precision machine tools, where its angular contact design ensures accurate spindle rotation. The ceramic balls reduce friction, making it suitable for high-speed operations.

In automotive applications, 7022 ACD/HCP4ADBC Bearing supports performance gearboxes and electric motor systems. Its moderate preload helps maintain stability under varying loads.

For robotics, 7022 ACD/HCP4ADBC Bearing’s matched arrangement provides balanced performance in articulated arms. The phenolic cage offers durability in continuous operation.

Medical imaging devices benefit from 7022 ACD/HCP4ADBC Bearing’s precision and smooth operation. The P4A tolerance class ensures reliability in sensitive equipment.

In aerospace systems, 7022 ACD/HCP4ADBC Bearing handles both radial and axial loads efficiently. Its temperature range makes it adaptable to different environmental conditions.
