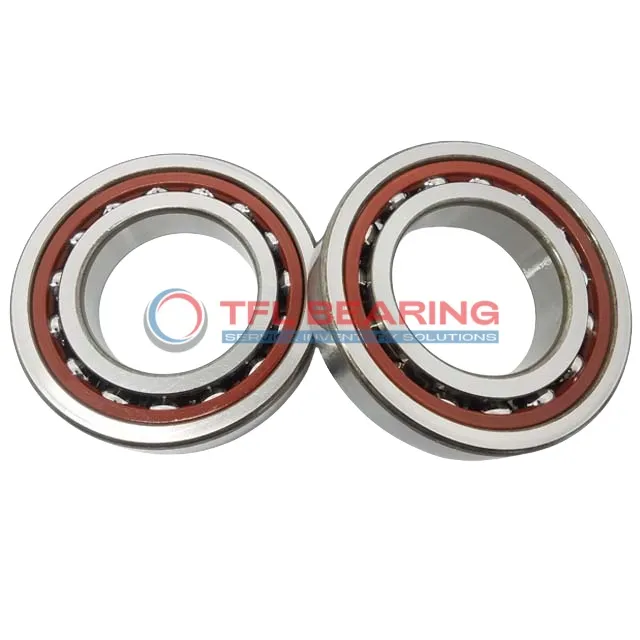

Super Precision Angular Contact Ball Bearings 7021 CD/P4ADGB

Brand: TFL Bearing Interchangeable: SKF 7021 CD/P4ADGB 105 mm × 160 mm × 52 mm Metric Open
Part number: 7021 CD/P4ADGB
Super Precision Angular Contact Ball Bearings 7021 CD/P4ADGB
In Stock
US$652.43 / piece
Reference price · volume pricing on request
Get a Quote WhatsApp
  • ISO 9001 quality system
  • Pre-shipment inspection
  • Lead time confirmed with your quote
Dimensions
Bore Dia105 mm
Bore Dia Tolerance-0.004mm to 0
Outer Dia160 mm
Outer Dia Tolerance-0.004mm to 0
Width52 mm
Width Tolerance-0.2mm to 0
Ball Dia17.462 mm
Performance
PreloadLight / Class B
Dynamic Radial Load35,100 lbf
Static Radial Load43,425 lbf
Temperature Range- 30°C to 110 °C
Max Speed16,000 rpm
Characteristics
Ball Qty21
Contact Angle15°
Tolerance ClassP4A
System of MeasurementMetric
Seal TypeOpen
Matched ArrangementUniversal matching
Number Of Bearings In Matched Set2
Universal Matching BearingYes, back-to-back (<>), face-to-face (><) or tandem (>>)
For Load DirectionAngular Contact
LubricationLubricated
Weight3.18 kg
Material
Ring MaterialChrome Steel
Ball MaterialChrome Steel
Cage MaterialPhenolic
Dimension drawing · click to enlarge

Description

The 7021 CD/P4ADGB is a super precision angular contact ball bearing with a 105mm bore and 160mm outer diameter, crafted from high-quality chrome steel. Its 15° contact angle and open design ensure smooth operation under radial loads up to 35100 lbf.

This bearing is lubricated for reduced friction and can handle speeds up to 16000 RPM. The phenolic cage adds durability while keeping the weight manageable at 3.18kg.

Its universal matching feature allows flexible arrangements like back-to-back or face-to-face, making it versatile for various setups. The P4A tolerance class ensures high precision in demanding applications.

Ideal for machine tools or high-speed spindles, it performs reliably in temperatures from -30°C to 110°C. Compatible with SKF bearings, it’s a practical choice for replacements or upgrades.

Features

Performance Features of 7021 CD/P4ADGB Bearing

7021 CD/P4ADGB Bearing is designed with a 15° contact angle, optimising load distribution for angular contact applications.
Its chrome steel rings and balls ensure durability, while the phenolic cage reduces friction and noise.

The bearing’s dynamic radial load capacity of 35100 lbf makes it suitable for high-performance machinery.
With a maximum speed of 16,000 rpm, it delivers reliable operation in demanding conditions.

7021 CD/P4ADGB Bearing is available in matched sets, offering flexibility for back-to-back or face-to-face arrangements.
Its precision P4A tolerance class ensures consistent performance in critical applications.

Application

Super Precision Angular Contact Ball Bearings 7021 CD/P4ADGB are commonly used in high-speed machine tools, where their 15° contact angle ensures accurate radial and axial load distribution. The universal matching design allows flexible arrangements like back-to-back or face-to-face setups.

In robotics, 7021 CD/P4ADGB Bearings provide smooth motion control for articulated arms, thanks to their phenolic cage reducing friction at high RPMs. Their P4A tolerance class makes them suitable for precision automation tasks.

For aerospace applications, these bearings handle combined loads in aircraft components, with their chrome steel construction offering durability. The light preload ensures consistent performance across temperature variations from -30°C to 110°C.

Medical imaging systems benefit from 7021 CD/P4ADGB Bearings’ low vibration, critical for maintaining scan clarity. The open seal design simplifies relubrication in maintenance-heavy environments.

In electric vehicle drivetrains, these bearings support efficient power transfer with minimal energy loss. Their metric sizing ensures compatibility with European and Asian motor designs.
