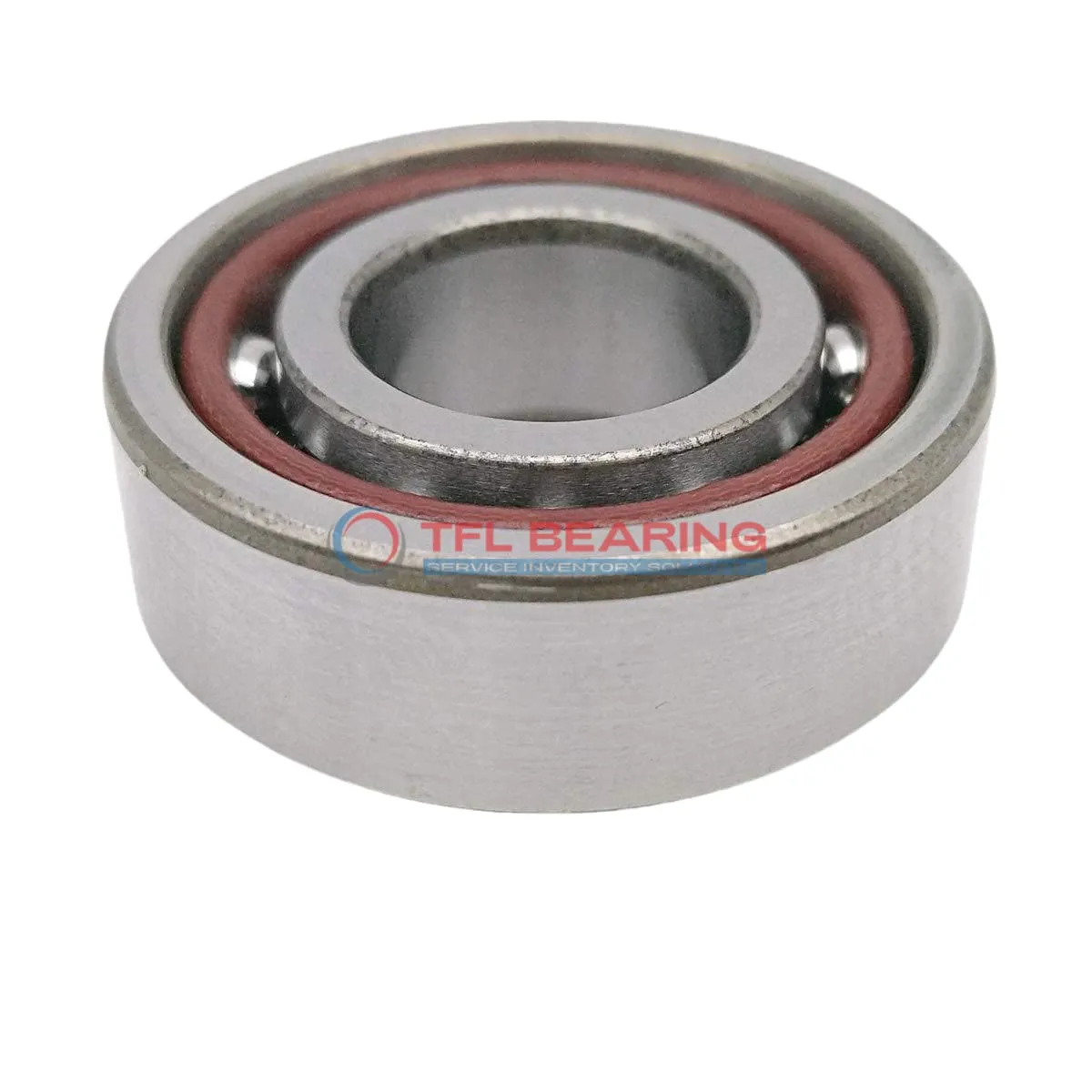

Super Precision Angular Contact Ball Bearings 7018 CE/HCP4AQBCA

Brand: TFL Bearing Interchangeable: SKF 7018 CE/HCP4AQBCA 90 mm × 140 mm × 96 mm Metric Open
Part number: 7018 CE/HCP4AQBCA
Super Precision Angular Contact Ball Bearings 7018 CE/HCP4AQBCA
In Stock
Price on request
Send your part number and quantity for a quote
Get a Quote WhatsApp
  • ISO 9001 quality system
  • Pre-shipment inspection
  • Lead time confirmed with your quote
Dimensions
Bore Dia90 mm
Bore Dia Tolerance-0.004mm to 0
Outer Dia140 mm
Outer Dia Tolerance-0.004mm to 0
Width96 mm
Width Tolerance-0.2mm to 0
Ball Dia11.112 mm
Performance
PreloadExtra light / Class A
Dynamic Radial Load21,510 lbf
Static Radial Load28,575 lbf
Temperature Range- 30°C to 110 °C
Max Speed15,000 rpm
Characteristics
Ball Qty28
Contact Angle15°
Tolerance ClassP4A
System of MeasurementMetric
Seal TypeOpen
Matched Arrangement4 bearings <<>> QBC
Number Of Bearings In Matched Set4
Universal Matching BearingNo
For Load DirectionAngular Contact
LubricationLubricated
Weight4.43 kg
Material
Ring MaterialChrome Steel
Ball MaterialCeramic
Cage MaterialPhenolic
Dimension drawing · click to enlarge

Description

The 7018 CE/HCP4AQBCA is a super precision angular contact ball bearing with a 90mm bore and 140mm outer diameter, crafted from high-quality chrome steel. It handles radial loads up to 21510 lbf and reaches speeds of 15000 RPM, thanks to its ceramic balls and phenolic cage.

Its 15° contact angle and extra-light preload ensure smooth operation with minimal friction. The open design allows for easy lubrication, making maintenance straightforward.

This set includes four matched bearings (QBC arrangement), ideal for high-precision applications like machine tool spindles or aerospace components. It operates reliably in temperatures from -30°C to 110°C.

Weighing 4.43kg, it’s a robust choice for demanding environments. Compliant with P4A tolerance standards, it offers exceptional accuracy and interchangeability with SKF bearings.

Features

Performance Features of 7018 CE/HCP4AQBCA Bearing

7018 CE/HCP4AQBCA Bearing is designed with a 15° contact angle, optimising load distribution for precision applications.
Its chrome steel rings and ceramic balls enhance durability while reducing friction.

The phenolic cage ensures smooth operation, even at high speeds up to 15,000 rpm.
This bearing set includes four matched units, providing consistent performance in demanding conditions.

With a dynamic radial load capacity of 21,510 lbf, it handles heavy loads reliably.
The open design allows for easy lubrication, maintaining efficiency over time.

7018 CE/HCP4AQBCA Bearing operates in temperatures from -30°C to 110°C, suitable for varied environments.
Its P4A tolerance class ensures high precision and minimal vibration.

Application

Key Fields for 7018 CE/HCP4AQBCA Bearing
7018 CE/HCP4AQBCA Bearing is widely used in high-precision machine tools, where its ceramic balls and phenolic cage ensure minimal friction and heat generation. The matched set of four bearings provides excellent stability for spindle applications.

In robotics, 7018 CE/HCP4AQBCA Bearing supports articulated arms, offering smooth motion and long service life. Its extra-light preload makes it ideal for delicate, high-speed operations.

For aerospace components, 7018 CE/HCP4AQBCA Bearing handles both radial and angular loads with precision. The P4A tolerance class ensures consistent performance in critical flight systems.

Medical imaging devices benefit from 7018 CE/HCP4AQBCA Bearing’s quiet operation and reliability. The chrome steel rings and ceramic balls reduce wear, even in continuous use.

In semiconductor manufacturing, 7018 CE/HCP4AQBCA Bearing’s low vibration and high-speed capability are essential. The open design allows for easy lubrication, maintaining optimal performance.
