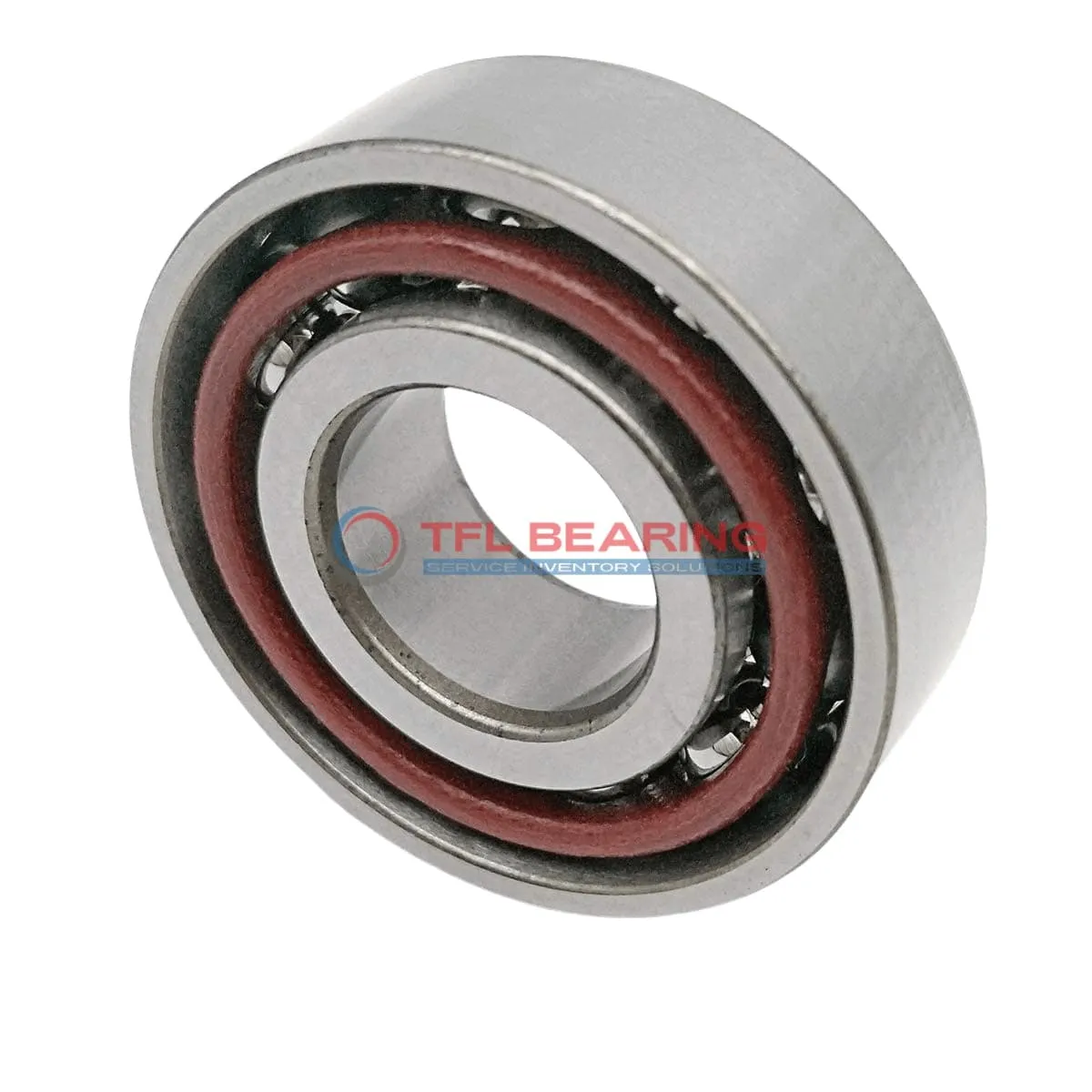

Super Precision Angular Contact Ball Bearings 7017 CD/HCP4ADGA

Brand: TFL Bearing Interchangeable: SKF 7017 CD/HCP4ADGA 85 mm × 130 mm × 44 mm Metric Open
Part number: 7017 CD/HCP4ADGA
Super Precision Angular Contact Ball Bearings 7017 CD/HCP4ADGA
In Stock
US$68.36 / piece
Reference price · volume pricing on request
Get a Quote WhatsApp
  • ISO 9001 quality system
  • Pre-shipment inspection
  • Lead time confirmed with your quote
Dimensions
Bore Dia85 mm
Bore Dia Tolerance-0.004mm to 0
Outer Dia130 mm
Outer Dia Tolerance-0.004mm to 0
Width44 mm
Width Tolerance-0.2mm to 0
Ball Dia14.288 mm
Performance
PreloadExtra light / Class A
Dynamic Radial Load24,975 lbf
Static Radial Load29,025 lbf
Temperature Range- 30°C to 110 °C
Max Speed28,000 rpm
Characteristics
Ball Qty21
Contact Angle15°
Tolerance ClassP4A
System of MeasurementMetric
Seal TypeOpen
Matched ArrangementUniversal matching
Number Of Bearings In Matched Set2
Universal Matching BearingYes, back-to-back (<>), face-to-face (><) or tandem (>>)
For Load DirectionAngular Contact
LubricationLubricated
Weight1.49 kg
Material
Ring MaterialChrome Steel
Ball MaterialCeramic
Cage MaterialPhenolic
Dimension drawing · click to enlarge

Description

The 7017 CD/HCP4ADGA is a super precision angular contact ball bearing with an 85mm bore and 130mm outer diameter, crafted from durable chrome steel and ceramic balls. It handles radial loads up to 24975 lbf and operates smoothly at speeds up to 28000 RPM.

Its 15° contact angle and universal matching design allow flexible arrangements like back-to-back or face-to-face setups. The phenolic cage ensures quiet performance, while the open seal simplifies maintenance.

This bearing is ideal for high-speed applications like machine tool spindles or precision equipment. It comes pre-lubricated and works in temperatures from -30°C to 110°C.

Weighing 1.49kg, it’s part of a matched set of two bearings. Compliant with P4A tolerance class for exceptional accuracy. Interchangeable with SKF models for easy replacement.

Features

Performance Features of 7017 CD/HCP4ADGA Bearing

7017 CD/HCP4ADGA Bearing is designed with a 15° contact angle, optimising load distribution for angular contact applications.
Its chrome steel rings and ceramic balls enhance durability while reducing friction for smoother operation.

The phenolic cage ensures stability at high speeds, supporting a maximum of 28,000 rpm.
Universal matching allows flexible arrangements like back-to-back or face-to-face configurations.

With a dynamic radial load capacity of 24,975 lbf, it handles demanding precision tasks reliably.
The extra light preload (Class A) ensures minimal resistance, improving efficiency in high-speed applications.

Application

Industrial Uses of 7017 CD/HCP4ADGA Bearing
In machine tools, 7017 CD/HCP4ADGA Bearing ensures high precision during operations, thanks to its 15° contact angle and ceramic balls. The universal matching design allows flexible arrangements, making it suitable for complex setups.

Where Is 7017 CD/HCP4ADGA Bearing Used?
You’ll often find 7017 CD/HCP4ADGA Bearing in high-speed spindles, where its extra-light preload reduces friction and heat buildup. Its phenolic cage also helps maintain stability under demanding conditions.

Built for Heavy-Duty Use: 7017 CD/HCP4ADGA Bearing
7017 CD/HCP4ADGA Bearing handles heavy radial loads in industrial gearboxes, with a dynamic load capacity of 24,975 lbf. The chrome steel rings and ceramic balls ensure long-lasting performance.

Automotive vs Aerospace: Applications of 7017 CD/HCP4ADGA Bearing
In automotive systems, 7017 CD/HCP4ADGA Bearing supports high-performance transmissions, while in aerospace, its precision suits turbine engines. The P4A tolerance class guarantees reliability in both fields.

Perfect Fit for Automation: 7017 CD/HCP4ADGA Bearing
7017 CD/HCP4ADGA Bearing works well in robotic arms, where its tandem arrangement provides smooth motion control. The lubricated design reduces maintenance needs, ideal for continuous operation.
