Super Precision Angular Contact Ball Bearings 7016 CD/P4A

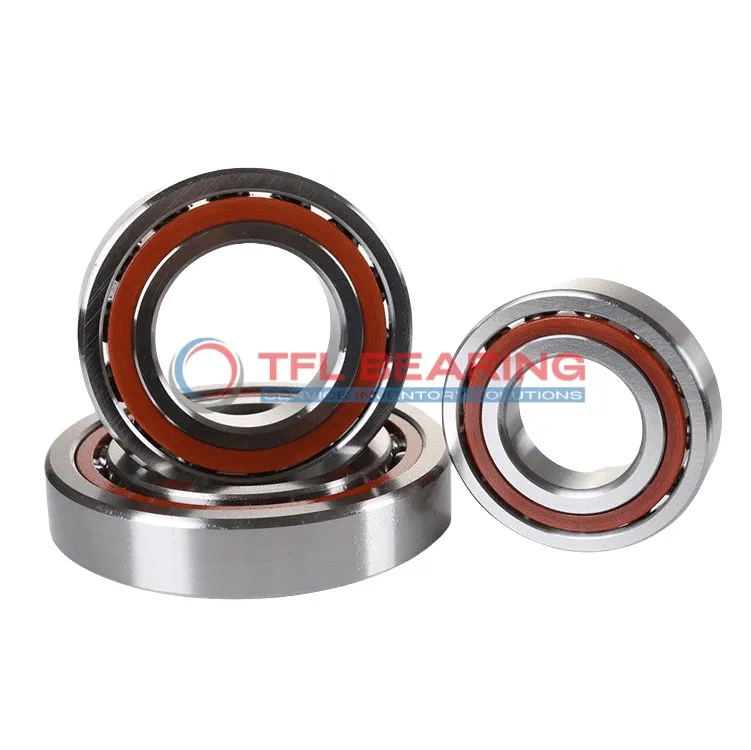

Super Precision Angular Contact Ball Bearings 7016 CD/P4A

The 7016 CD/P4A is a super precision angular contact ball bearing with an 80mm bore and 125mm outer diameter, crafted from high-quality chrome steel. It handles radial loads up to 14625 lbf and operates smoothly at speeds up to 17000 RPM.

With a 15° contact angle and phenolic cage, it offers excellent stability and low friction. The open design allows for easy lubrication, ensuring consistent performance over time.

This bearing is ideal for high-precision applications like machine tool spindles or high-speed motors. Its P4 tolerance class ensures tight precision, making it suitable for demanding industrial environments.

Weighing 0.85kg, it’s a robust yet manageable component. Compatible with SKF bearings, it’s a reliable choice for replacements or upgrades.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 7016 CD/P4A
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 80 mm
  • Bore Dia Tolerance -0.007mm to 0
  • Outer Dia 125 mm
  • Outer Dia Tolerance -0.009mm to 0
  • Width 22 mm
  • Width Tolerance -0.2mm to 0
  • Ball Dia 14.288 mm
  • Ball Qty 20
  • Contact Angle 15°
  • Tolerance Class P4 (ABEC-7)
  • System of Measurement Metric
  • Seal Type Open
  • Matched Arrangement No
  • Preload Available
  • For Load Direction Angular Contact
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Phenolic
  • Dynamic Radial Load 14625 lbf
  • Static Radial Load 13725 lbf
  • Lubrication Lubricated
  • Temperature Range -30° to 110 °C
  • Max Speed 17000 rpm
  • Weight 0.85 kg
  • Price（$） 177.849
Super Precision Angular Contact Ball Bearings 7016 CD/P4A dimension drawing
Download DWG Download PDF

Features

Why Choose 7016 CD/P4A Bearing for Precision Tasks?

7016 CD/P4A Bearing features a 15° contact angle, optimised for high-precision angular contact applications.
Its chrome steel rings and balls ensure durability under dynamic radial loads up to 14,625 lbf.

The phenolic cage maintains ball alignment, reducing friction and enhancing performance.
With a maximum speed of 17,000 rpm, it delivers reliable operation in demanding conditions.

7016 CD/P4A Bearing’s P4 tolerance class guarantees exceptional precision for critical tasks.
Its open design allows for easy lubrication, ensuring smooth and efficient performance.

Application

Key Fields for 7016 CD/P4A Bearing
In machine tools, 7016 CD/P4A Bearing ensures high precision during operations like grinding and milling, thanks to its 15° contact angle and P4 tolerance class. The open design with phenolic cage suits environments where minimal friction is key.

Where Is 7016 CD/P4A Bearing Used?
You’ll often spot 7016 CD/P4A Bearing in automotive transmissions, where its angular contact design handles combined loads smoothly. Its 17,000 rpm max speed makes it reliable for high-performance applications.

Built for Heavy-Duty Use: 7016 CD/P4A Bearing
This bearing’s chrome steel construction shines in industrial pumps, enduring constant radial loads without compromising accuracy. The lubricated design further extends its service life in demanding conditions.

Automotive vs Aerospace: Applications of 7016 CD/P4A Bearing
In cars, 7016 CD/P4A Bearing supports gearbox efficiency, while in aircraft systems, its precision ensures stability in control mechanisms. The metric sizing fits seamlessly into both sectors’ standards.

Perfect Fit for Automation: 7016 CD/P4A Bearing
Robotic arms benefit from 7016 CD/P4A Bearing’s low-friction phenolic cage, enabling smooth, repeatable movements. Its 80mm bore easily integrates into automated assembly lines.
