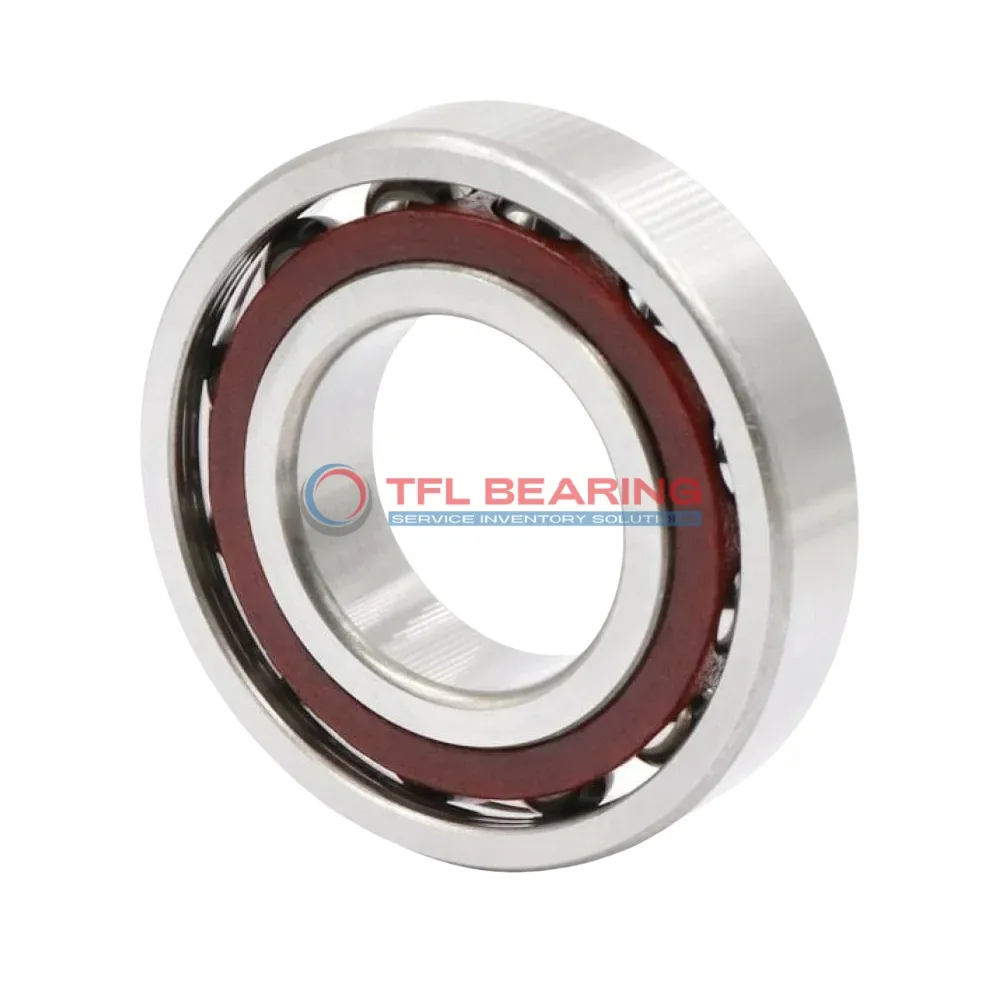

Super Precision Angular Contact Ball Bearings 7016 ACEGA/HCP4A

Brand: TFL Bearing Interchangeable: SKF 7016 ACEGA/HCP4A 80 mm × 125 mm × 22 mm Metric Open
Part number: 7016 ACEGA/HCP4A
Super Precision Angular Contact Ball Bearings 7016 ACEGA/HCP4A
In Stock
Price on request
Send your part number and quantity for a quote
Get a Quote WhatsApp
  • ISO 9001 quality system
  • Pre-shipment inspection
  • Lead time confirmed with your quote
Dimensions
Bore Dia80 mm
Bore Dia Tolerance-0.004mm to 0
Outer Dia125 mm
Outer Dia Tolerance-0.004mm to 0
Width22 mm
Width Tolerance-0.2mm to 0
Ball Dia11.112 mm
Performance
PreloadExtra light / Class A
Dynamic Radial Load7,312 lbf
Static Radial Load5,962 lbf
Temperature Range- 30°C to 110 °C
Max Speed28,000 rpm
Characteristics
Ball Qty25
Contact Angle25°
Tolerance ClassP4A
System of MeasurementMetric
Seal TypeOpen
Matched ArrangementNo
Number Of Bearings In Matched Set2
Universal Matching BearingYes, back-to-back (<>), face-to-face (><) or tandem (>>)
For Load DirectionAngular Contact
LubricationLubricated
Weight0.77 kg
Material
Ring MaterialChrome Steel
Ball MaterialCeramic
Cage MaterialPhenolic
Dimension drawing · click to enlarge

Description

The 7016 ACEGA/HCP4A is a super precision angular contact ball bearing with an 80mm bore and 125mm outer diameter, crafted from chrome steel for durability. Its 25° contact angle and ceramic balls ensure smooth operation under radial loads up to 7312 lbf.

This open-design bearing reaches speeds up to 28,000 RPM and works in temperatures from -30°C to 110°C. The phenolic cage reduces friction, while the extra light preload (Class A) enhances precision.

Ideal for high-speed applications like machine tool spindles or precision instruments. Its P4A tolerance class guarantees accuracy, and it’s interchangeable with SKF bearings. Weighing 0.77kg, it’s robust yet manageable for its size.

Features

Performance Features of 7016 ACEGA/HCP4A Bearing

7016 ACEGA/HCP4A Bearing is crafted with chrome steel rings and ceramic balls, ensuring high precision and durability.
Its 25° contact angle allows for efficient handling of combined radial and axial loads.

The phenolic cage maintains ball alignment, reducing friction and enhancing performance.
With a dynamic radial load capacity of 7312 lbf, it excels in demanding applications.

7016 ACEGA/HCP4A Bearing operates smoothly at speeds up to 28,000 rpm, thanks to its ceramic balls.
The P4A tolerance class ensures consistent precision in high-speed environments.

Designed for universal matching, 7016 ACEGA/HCP4A Bearing offers flexibility in back-to-back or face-to-face arrangements.
Its extra light preload reduces vibration, making it ideal for precision machinery.

The temperature range of -30°C to 110°C ensures reliable performance in various conditions.
7016 ACEGA/HCP4A Bearing’s lubricated design minimises maintenance needs while maximising efficiency.

Application

How Does 7016 ACEGA/HCP4A Bearing Improve Performance?
In high-speed machine tools, 7016 ACEGA/HCP4A Bearing handles angular contact loads with precision, thanks to its ceramic balls and 25° contact angle. The phenolic cage reduces friction, making it ideal for spindle applications.

Where Is 7016 ACEGA/HCP4A Bearing Used?
Automotive testing equipment often relies on 7016 ACEGA/HCP4A Bearing for its consistent performance under dynamic radial loads. Its P4A tolerance class ensures accuracy in demanding conditions.

Built for Heavy-Duty Use: 7016 ACEGA/HCP4A Bearing
Industrial robots benefit from 7016 ACEGA/HCP4A Bearing’s extra-light preload, which minimises vibration in repetitive motions. The chrome steel rings provide durability in continuous operation.

Medical vs Industrial: Where 7016 ACEGA/HCP4A Bearing Excels
While 7016 ACEGA/HCP4A Bearing suits industrial grinders, its ceramic balls also make it a quiet choice for medical imaging devices. The lubricated design ensures smooth rotation in both environments.
