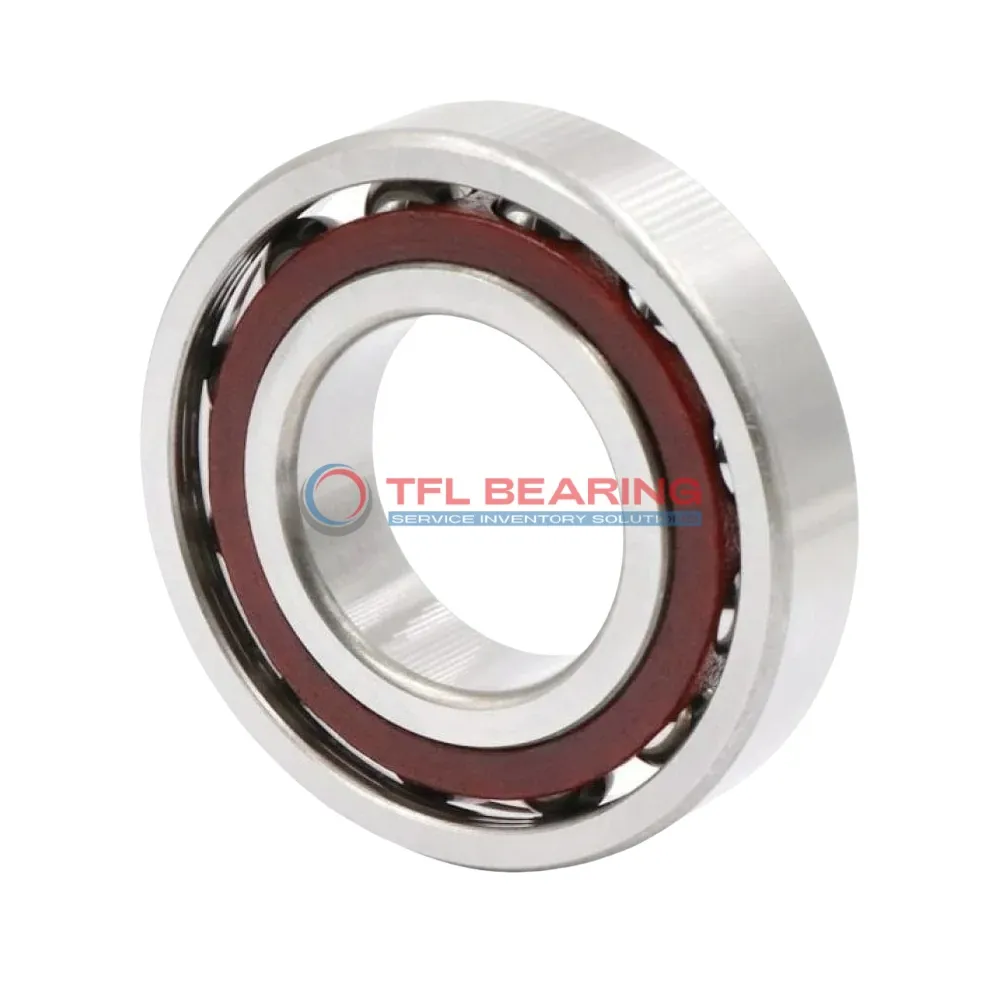

Super Precision Angular Contact Ball Bearings 7016 ACE/HCP4A

Brand: TFL Bearing Interchangeable: SKF 7016 ACE/HCP4A 80 mm × 125 mm × 22 mm Metric Open
Part number: 7016 ACE/HCP4A
Super Precision Angular Contact Ball Bearings 7016 ACE/HCP4A
In Stock
US$648.56 / piece
Reference price · volume pricing on request
Get a Quote WhatsApp
  • ISO 9001 quality system
  • Pre-shipment inspection
  • Lead time confirmed with your quote
Dimensions
Bore Dia80 mm
Bore Dia Tolerance-0.007mm to 0
Outer Dia125 mm
Outer Dia Tolerance-0.009mm to 0
Width22 mm
Width Tolerance-0.2mm to 0
Ball Dia11.112 mm
Performance
PreloadAvailable
Dynamic Radial Load7,312 lbf
Static Radial Load5,962 lbf
Temperature Range-30° to 110 °C
Max Speed24,000 rpm
Characteristics
Ball Qty25
Contact Angle25°
Tolerance ClassP4 (ABEC-7)
System of MeasurementMetric
Seal TypeOpen
Matched ArrangementAvailable
For Load DirectionAngular Contact
LubricationLubricated
Weight0.77 kg
Material
Ring MaterialChrome Steel
Ball MaterialCeramic
Cage MaterialPhenolic
Dimension drawing · click to enlarge

Description

The 7016 ACE/HCP4A is a super precision angular contact ball bearing with an 80mm bore and 125mm outer diameter, crafted from chrome steel for durability. It handles radial loads up to 7312 lbf and reaches speeds of 24,000 RPM, thanks to its ceramic balls and phenolic cage.

With a 25° contact angle, it efficiently manages combined radial and axial loads. The open design allows for easy lubrication, ensuring smooth operation in temperatures from -30°C to 110°C.

This bearing meets P4 (ABEC-7) tolerance standards, offering high precision for demanding applications. It’s interchangeable with SKF models, making it a versatile choice for replacements.

Ideal for high-speed machinery like spindles or CNC equipment, where precision and reliability are crucial. Weighing 0.77kg, it balances strength and performance in a compact design.

Features

Performance Features of 7016 ACE/HCP4A Bearing

7016 ACE/HCP4A Bearing is designed with a 25° contact angle, optimising load distribution for angular contact applications.
Its chrome steel rings and ceramic balls enhance durability while reducing friction.
The phenolic cage ensures smooth operation, even at high speeds up to 24,000 rpm.
With a dynamic radial load capacity of 7312 lbf, it delivers reliable performance in precision tasks.

Application

Essential Roles of 7016 ACE/HCP4A Bearing
7016 ACE/HCP4A Bearing is widely used in high-speed machine tools, where its precision angular contact design ensures accurate spindle rotation. The ceramic balls reduce friction, making it suitable for continuous operation.

In robotics, 7016 ACE/HCP4A Bearing provides smooth movement for articulated arms, thanks to its phenolic cage and P4 tolerance class. This makes it a reliable choice for automated assembly lines.

For aerospace applications, 7016 ACE/HCP4A Bearing handles both radial and axial loads in components like landing gear systems. Its chrome steel rings offer durability under varying temperature conditions.

Medical imaging devices benefit from 7016 ACE/HCP4A Bearing’s low vibration and high-speed capabilities. The lubricated design ensures quiet operation, essential for sensitive diagnostic equipment.

In electric motors, 7016 ACE/HCP4A Bearing supports high rotational speeds while maintaining stability. Its matched arrangement option allows for precise alignment in demanding setups.
