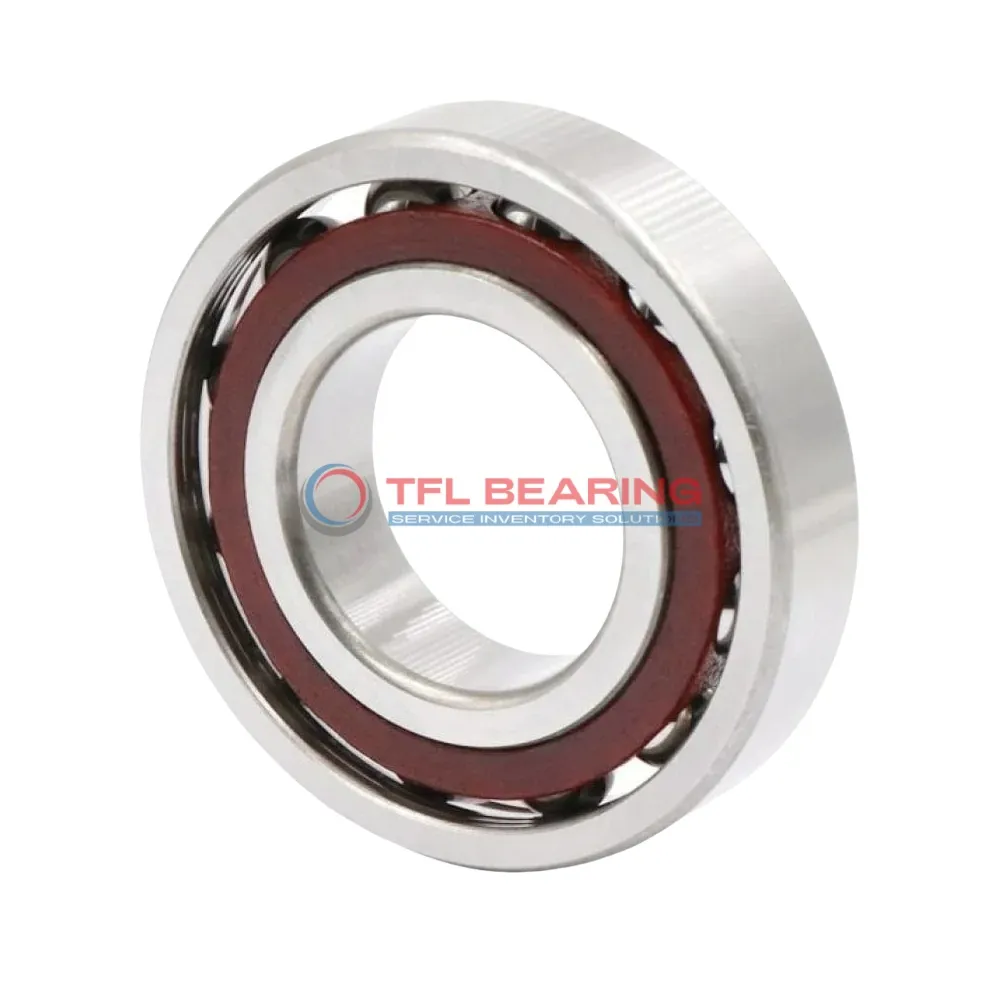

Super Precision Angular Contact Ball Bearings 7016 ACDGA/HCP4A

Brand: TFL Bearing Interchangeable: SKF 7016 ACDGA/HCP4A 80 mm × 125 mm × 22 mm Metric Open
Part number: 7016 ACDGA/HCP4A
Super Precision Angular Contact Ball Bearings 7016 ACDGA/HCP4A
In Stock
US$25.68 / piece
Reference price · volume pricing on request
Get a Quote WhatsApp
  • ISO 9001 quality system
  • Pre-shipment inspection
  • Lead time confirmed with your quote
Dimensions
Bore Dia80 mm
Bore Dia Tolerance-0.004mm to 0
Outer Dia125 mm
Outer Dia Tolerance-0.004mm to 0
Width22 mm
Width Tolerance-0.2mm to 0
Ball Dia14.288 mm
Performance
PreloadExtra light / Class A
Dynamic Radial Load14,040 lbf
Static Radial Load13,162 lbf
Temperature Range- 30°C to 110 °C
Max Speed28,000 rpm
Characteristics
Ball Qty20
Contact Angle25°
Tolerance ClassP4A
System of MeasurementMetric
Seal TypeOpen
Matched ArrangementNo
Number Of Bearings In Matched Set3
Universal Matching BearingYes, back-to-back (<>), face-to-face (><) or tandem (>>)
For Load DirectionAngular Contact
LubricationLubricated
Weight0.71 kg
Material
Ring MaterialChrome Steel
Ball MaterialCeramic
Cage MaterialPhenolic
Dimension drawing · click to enlarge

Description

The 7016 ACDGA/HCP4A is a super precision angular contact ball bearing with an 80mm bore and 125mm outer diameter, crafted from high-quality chrome steel. Its 25° contact angle ensures smooth handling of combined radial and axial loads.

With ceramic balls and a phenolic cage, it offers reduced friction and can spin up to 28,000 RPM. The extra light preload (Class A) enhances precision in high-speed applications.

This open-design bearing is lubricated for easy maintenance and performs reliably between -30°C and 110°C. It’s interchangeable with SKF bearings and comes in a universal matching set of three.

Ideal for machine tools or high-speed spindles where accuracy and speed are crucial. Weighing 0.71kg, it’s a robust yet lightweight choice for demanding setups.

Features

Performance Features of 7016 ACDGA/HCP4A Bearing

7016 ACDGA/HCP4A Bearing is designed with a 25° contact angle, optimising load distribution for angular contact applications.
The chrome steel rings and ceramic balls enhance durability and reduce friction under high-speed conditions.

With a dynamic radial load capacity of 14040 lbf, it handles demanding operations reliably.
Its phenolic cage ensures smooth operation, even at speeds up to 28,000 rpm.

7016 ACDGA/HCP4A Bearing operates efficiently in temperatures ranging from -30°C to 110°C.
The precision P4A tolerance class guarantees consistent performance in high-accuracy applications.

Application

Industrial Uses of 7016 ACDGA/HCP4A Bearing
7016 ACDGA/HCP4A Bearing is commonly used in high-speed machine tools, where its ceramic balls and phenolic cage reduce friction and heat buildup. The P4A tolerance ensures precise alignment for demanding industrial applications.

What Makes 7016 ACDGA/HCP4A Bearing a Preferred Choice?
In automotive applications like electric motor shafts, 7016 ACDGA/HCP4A Bearing handles angular contact loads with ease. Its extra-light preload design minimises vibration, improving overall vehicle performance.

Perfect Fit for Automation: 7016 ACDGA/HCP4A Bearing
This bearing excels in robotic arms, where its 25° contact angle provides smooth rotational movement. The chrome steel rings offer durability in continuous operation environments.

Medical vs Industrial: Where 7016 ACDGA/HCP4A Bearing Excels
For medical imaging devices, 7016 ACDGA/HCP4A Bearing’s precision reduces noise during scans. In industrial settings, its high-speed capability (up to 28,000 rpm) suits spindle applications perfectly.

How Does 7016 ACDGA/HCP4A Bearing Support High-Speed Operations?
The ceramic ball design allows 7016 ACDGA/HCP4A Bearing to maintain stability at extreme speeds. Its lubricated construction ensures consistent performance in CNC machining centres.
