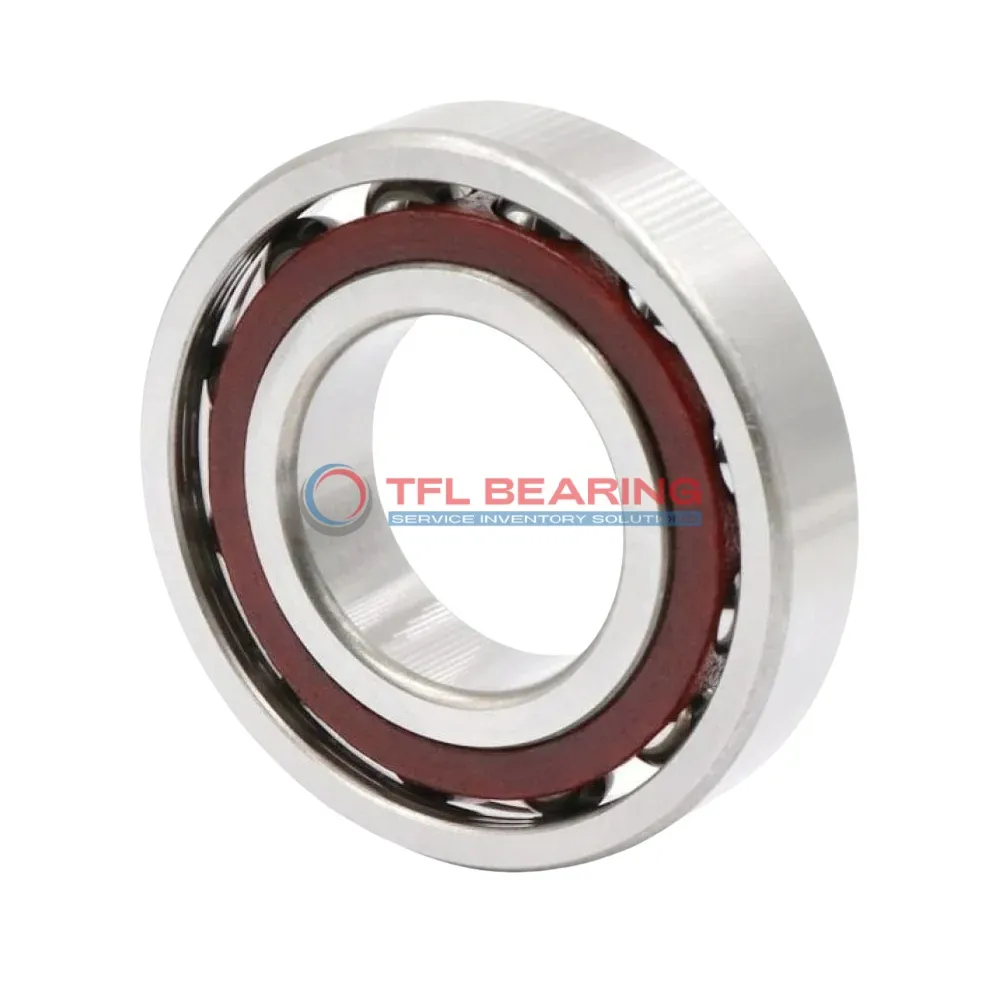

Super Precision Angular Contact Ball Bearings 7016 ACD/HCP4A

Brand: TFL Bearing Interchangeable: SKF 7016 ACD/HCP4A 80 mm × 125 mm × 22 mm Metric Open
Part number: 7016 ACD/HCP4A
Super Precision Angular Contact Ball Bearings 7016 ACD/HCP4A
In Stock
US$648.61 / piece
Reference price · volume pricing on request
Get a Quote WhatsApp
  • ISO 9001 quality system
  • Pre-shipment inspection
  • Lead time confirmed with your quote
Dimensions
Bore Dia80 mm
Bore Dia Tolerance-0.007mm to 0
Outer Dia125 mm
Outer Dia Tolerance-0.009mm to 0
Width22 mm
Width Tolerance-0.2mm to 0
Ball Dia14.288 mm
Performance
PreloadAvailable
Dynamic Radial Load14,040 lbf
Static Radial Load13,162 lbf
Temperature Range-30° to 110 °C
Max Speed18,000 rpm
Characteristics
Ball Qty20
Contact Angle25°
Tolerance ClassP4 (ABEC-7)
System of MeasurementMetric
Seal TypeOpen
Matched ArrangementAvailable
For Load DirectionAngular Contact
LubricationLubricated
Weight0.71 kg
Material
Ring MaterialChrome Steel
Ball MaterialCeramic
Cage MaterialPhenolic
Dimension drawing · click to enlarge

Description

The 7016 ACD/HCP4A is a super precision angular contact ball bearing with an 80mm bore and 125mm outer diameter, crafted from high-quality chrome steel. It features a 25° contact angle and ceramic balls for smooth operation.

This bearing handles radial loads up to 14040 lbf and can spin at speeds up to 18000 RPM, making it suitable for high-performance applications. Its phenolic cage ensures durability and reduces friction.

With a P4 tolerance class, it offers exceptional accuracy for demanding tasks. The open design allows for easy lubrication and maintenance. Ideal for use in machine tools or precision equipment where reliability is key.

Weighing 0.71kg, it’s robust yet manageable for its size. It operates efficiently in temperatures from -30°C to 110°C, ensuring consistent performance in various conditions.

Features

Why Choose 7016 ACD/HCP4A Bearing for Precision Tasks?

7016 ACD/HCP4A Bearing features a 25° contact angle, ideal for handling combined radial and axial loads.
Its chrome steel rings and ceramic balls ensure high precision and durability in demanding applications.

With a dynamic radial load capacity of 14040 lbf, it performs reliably under heavy loads.
The phenolic cage maintains ball alignment, reducing friction and extending service life.

Designed for high-speed applications, it supports speeds up to 18,000 rpm.
Its P4 tolerance class guarantees exceptional accuracy for precision machinery.

The open design allows for easy lubrication, ensuring smooth operation.
7016 ACD/HCP4A Bearing is versatile, suitable for matched arrangements and preload options.

Application

Industrial Uses of 7016 ACD/HCP4A Bearing
7016 ACD/HCP4A Bearing is commonly used in high-precision machine tools, where its angular contact design ensures accurate spindle rotation. The ceramic balls reduce friction, making it suitable for high-speed operations.

What Makes 7016 ACD/HCP4A Bearing a Preferred Choice?
In robotics, 7016 ACD/HCP4A Bearing provides smooth motion control for articulated arms, thanks to its phenolic cage and P4 tolerance. Its matched arrangement option also enhances stability in dynamic applications.

Built for Heavy-Duty Use: 7016 ACD/HCP4A Bearing
7016 ACD/HCP4A Bearing handles radial and axial loads efficiently in industrial pumps, where its chrome steel rings offer durability. The lubricated design ensures long service life even in demanding conditions.

Medical vs Industrial: Where 7016 ACD/HCP4A Bearing Excels
7016 ACD/HCP4A Bearing is ideal for medical imaging devices, providing quiet and precise movement. In industrial settings, it supports high-speed compressors with reliable performance.
