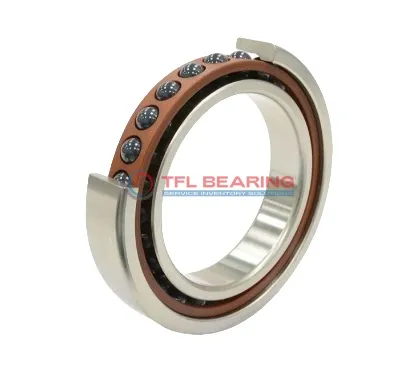

Super Precision Angular Contact Ball Bearings 7015 CD/HCP4ADT

Brand: TFL Bearing Interchangeable: SKF 7015 CD/HCP4ADT 75 mm × 115 mm × 40 mm Metric Open
Part number: 7015 CD/HCP4ADT
Super Precision Angular Contact Ball Bearings 7015 CD/HCP4ADT
In Stock
Price on request
Send your part number and quantity for a quote
Get a Quote WhatsApp
  • ISO 9001 quality system
  • Pre-shipment inspection
  • Lead time confirmed with your quote
Dimensions
Bore Dia75 mm
Bore Dia Tolerance-0.004mm to 0
Outer Dia115 mm
Outer Dia Tolerance-0.004mm to 0
Width40 mm
Width Tolerance-0.2mm to 0
Ball Dia12.7 mm
Performance
PreloadAvailable
Dynamic Radial Load19,170 lbf
Static Radial Load22,050 lbf
Temperature Range- 30°C to 110 °C
Max Speed31,000 rpm
Characteristics
Ball Qty20
Contact Angle15°
Tolerance ClassP4A
System of MeasurementMetric
Seal TypeOpen
Matched Arrangement2 bearings << DT
Number Of Bearings In Matched Set2
Universal Matching BearingNo
For Load DirectionAngular Contact
LubricationLubricated
Weight1.05 kg
Material
Ring MaterialChrome Steel
Ball MaterialCeramic
Cage MaterialPhenolic
Dimension drawing · click to enlarge

Description

The 7015 CD/HCP4ADT is a super precision angular contact ball bearing with a 75mm bore and 115mm outer diameter, crafted from durable chrome steel. It features a 15° contact angle and comes as a matched set of two bearings for balanced performance.

With a dynamic radial load capacity of 19170 lbf, it handles high speeds up to 31000 RPM smoothly. The ceramic balls and phenolic cage reduce friction, ensuring efficient operation.

Its open design allows easy lubrication, while the P4A tolerance class guarantees precision. Ideal for applications like machine tools or spindles where accuracy is key.

Weighing 1.05kg, it’s robust yet manageable. The bearing works in temperatures from -30°C to 110°C and is interchangeable with SKF models for easy replacement.

Features

Performance Features of 7015 CD/HCP4ADT Bearing

7015 CD/HCP4ADT Bearing is designed with a 15° contact angle, optimising load distribution for angular contact applications.

The chrome steel rings and ceramic balls enhance durability, while the phenolic cage ensures smooth operation.

With a dynamic radial load capacity of 19170 lbf, it handles demanding conditions effortlessly.

Its maximum speed of 31,000 rpm makes it suitable for high-speed applications.

Application

Industrial Uses of 7015 CD/HCP4ADT Bearing
7015 CD/HCP4ADT Bearing is commonly used in high-speed machine tools, where its precision angular contact design ensures accurate spindle rotation. The ceramic balls reduce friction, making it ideal for applications demanding smooth operation.

In automotive systems, 7015 CD/HCP4ADT Bearing supports components like electric motors and transmissions, where its high-speed capability and load handling are key. The matched arrangement also enhances stability in dynamic conditions.

For automation and robotics, 7015 CD/HCP4ADT Bearing’s phenolic cage and chrome steel rings provide durability in robotic arms and CNC machines. Its P4A tolerance class ensures consistent performance in precise movements.

Medical imaging devices benefit from 7015 CD/HCP4ADT Bearing’s low friction and high-speed performance, ensuring reliable operation in scanners and diagnostic equipment. The open design allows for easy lubrication maintenance.

In consumer electronics, 7015 CD/HCP4ADT Bearing is found in high-performance printers and industrial fans, where its ceramic balls reduce noise and wear. The metric sizing makes it compatible with a variety of European and Asian equipment.
