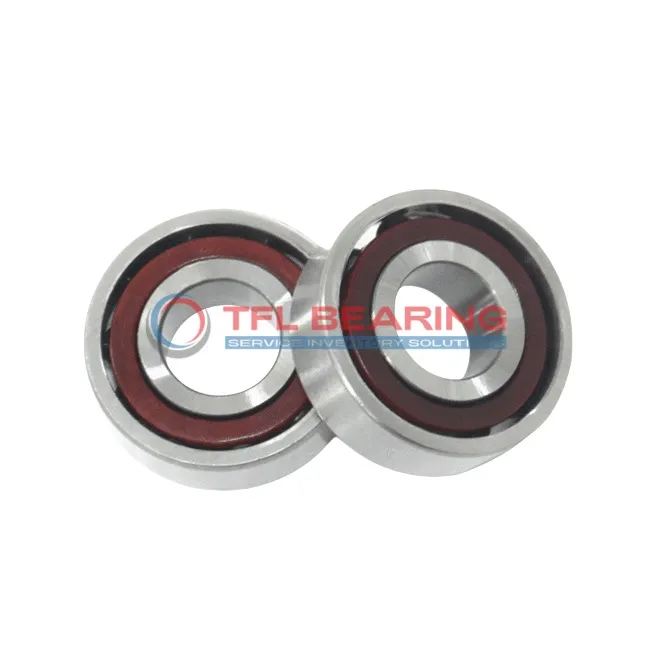

Super Precision Angular Contact Ball Bearings 7015 ACEGA/P4A

Brand: TFL Bearing Interchangeable: SKF 7015 ACEGA/P4A 75 mm × 115 mm × 20 mm Metric Open
Part number: 7015 ACEGA/P4A
Super Precision Angular Contact Ball Bearings 7015 ACEGA/P4A
In Stock
Price on request
Send your part number and quantity for a quote
Get a Quote WhatsApp
  • ISO 9001 quality system
  • Pre-shipment inspection
  • Lead time confirmed with your quote
Dimensions
Bore Dia75 mm
Bore Dia Tolerance-0.004mm to 0
Outer Dia115 mm
Outer Dia Tolerance-0.004mm to 0
Width20 mm
Width Tolerance-0.2mm to 0
Ball Dia9.525 mm
Performance
PreloadExtra light / Class A
Dynamic Radial Load5,558 lbf
Static Radial Load4,590 lbf
Temperature Range- 30°C to 110 °C
Max Speed31,000 rpm
Characteristics
Ball Qty26
Contact Angle25°
Tolerance ClassP4A
System of MeasurementMetric
Seal TypeOpen
Matched ArrangementNo
Number Of Bearings In Matched Set2
Universal Matching BearingYes, back-to-back (<>), face-to-face (><) or tandem (>>)
For Load DirectionAngular Contact
LubricationLubricated
Weight0.65 kg
Material
Ring MaterialChrome Steel
Ball MaterialChrome Steel
Cage MaterialPhenolic
Dimension drawing · click to enlarge

Description

The 7015 ACEGA/P4A is a super precision angular contact ball bearing with a 75mm bore and 115mm outer diameter, crafted from high-quality chrome steel. It handles radial loads up to 5558 lbf and operates smoothly at speeds up to 31,000 RPM.

With a 25° contact angle and extra light preload, it offers excellent accuracy for demanding applications. The open design and phenolic cage ensure reliable performance and easy maintenance.

This bearing is suitable for temperatures ranging from -30°C to 110°C and comes pre-lubricated for immediate use. It can be paired in back-to-back, face-to-face, or tandem arrangements for versatile setups.

Ideal for precision machinery like spindles or CNC equipment, where high-speed and low-friction performance are key. Weighing 0.65kg, it’s a robust yet manageable choice for industrial use.

Features

Performance Features of 7015 ACEGA/P4A Bearing

7015 ACEGA/P4A Bearing is crafted with chrome steel rings and balls, offering high precision for angular contact applications.
Its 25° contact angle ensures efficient load distribution, enhancing performance in demanding setups.
The phenolic cage maintains ball alignment, reducing friction and wear during operation.
With a dynamic radial load capacity of 5558 lbf, it handles heavy loads reliably.
Lubrication is pre-applied, ensuring smooth operation right from installation.
The P4A tolerance class guarantees tight dimensional accuracy for precision tasks.
Operating at speeds up to 31,000 rpm, it delivers both speed and stability.
Its temperature range of -30°C to 110°C makes it suitable for various environments.
The universal matching feature allows flexible arrangement options like back-to-back or face-to-face.
Weighing just 0.65 kg, it balances strength and lightweight design.

Application

Industrial Uses of 7015 ACEGA/P4A Bearing
7015 ACEGA/P4A Bearing is commonly used in machine tools, where its high precision and angular contact design ensure accurate spindle rotation. The open seal type allows for easy lubrication, making it suitable for continuous operation.

In automotive applications, 7015 ACEGA/P4A Bearing supports high-speed components like turbochargers and gearbox systems. Its extra light preload helps reduce friction, improving overall efficiency.

For automation equipment, 7015 ACEGA/P4A Bearing provides reliable performance in robotic arms and CNC machines. The phenolic cage material offers good heat resistance, ensuring stability during prolonged use.

Medical imaging devices also benefit from 7015 ACEGA/P4A Bearing’s precision and smooth operation. The chrome steel construction ensures durability in critical applications where consistency is key.
