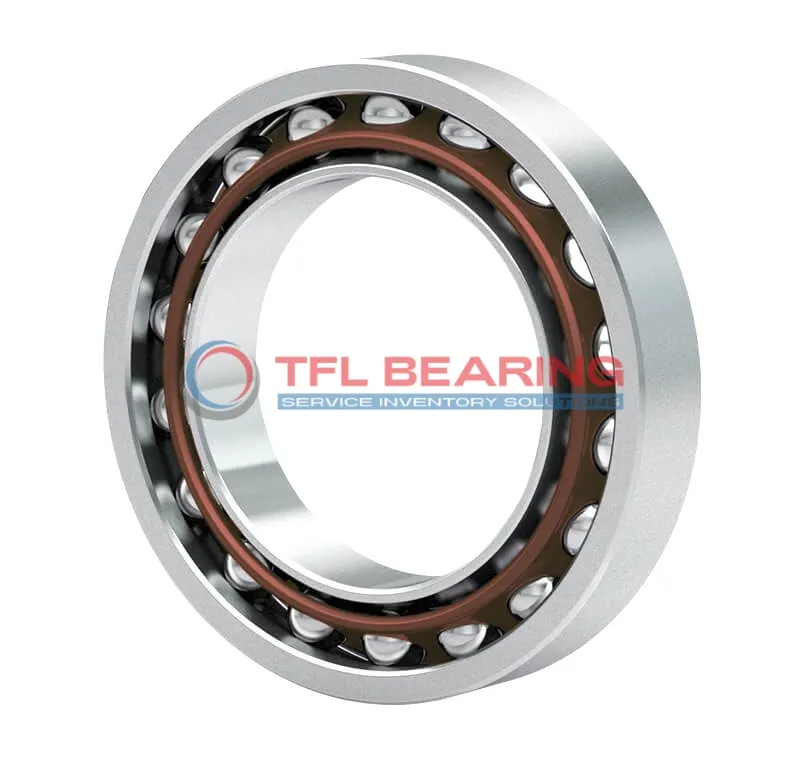

Super Precision Angular Contact Ball Bearings 7014 FEGA/P4A

Super Precision Angular Contact Ball Bearings 7014 FEGA/P4A

The 7014 FEGA/P4A is a super precision angular contact ball bearing with a 70mm bore and 110mm outer diameter, crafted from high-quality chrome steel. It features an 18° contact angle and is designed for angular contact loads, handling up to 5265 lbf dynamically.

With a maximum speed of 28,000 RPM, it spins smoothly and efficiently. The open design and phenolic cage ensure durability and easy maintenance, while the extra light preload enhances performance.

This bearing is ideal for high-speed applications like machine tool spindles or precision equipment. It can be arranged back-to-back, face-to-face, or tandem, offering flexibility in setup.

Weighing 0.61kg, it’s lightweight yet robust. Compliant with P4A tolerance standards, it ensures reliable operation in temperatures from -30°C to 110°C. Interchangeable with SKF bearings, it’s a practical choice for replacements.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 7014 FEGA/P4A
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 70 mm
  • Bore Dia Tolerance -0.004mm to 0
  • Outer Dia 110 mm
  • Outer Dia Tolerance -0.004mm to 0
  • Width 20 mm
  • Width Tolerance -0.2mm to 0
  • Ball Dia 9.525 mm
  • Ball Qty 25
  • Contact Angle 18°
  • Tolerance Class P4A
  • System of Measurement Metric
  • Seal Type Open
  • Matched Arrangement No
  • Number Of Bearings In Matched Set 2
  • Universal Matching Bearing Yes, back-to-back (<>), face-to-face (><) or tandem (>>)
  • Preload Extra light / Class A
  • For Load Direction Angular Contact
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Phenolic
  • Dynamic Radial Load 5265 lbf
  • Static Radial Load 4118 lbf
  • Lubrication Lubricated
  • Temperature Range - 30°C to 110 °C
  • Max Speed 28000 rpm
  • Weight 0.61 kg
Super Precision Angular Contact Ball Bearings 7014 FEGA/P4A dimension drawing
Download DWG Download PDF

Features

How Does 7014 FEGA/P4A Bearing Achieve Super Precision?

7014 FEGA/P4A Bearing features a precise 18° contact angle, optimising load distribution for high accuracy.
Its chrome steel rings and balls ensure durability, while the phenolic cage reduces friction for smoother operation.

With a dynamic radial load capacity of 5265 lbf, it handles demanding applications effortlessly.
The P4A tolerance class guarantees consistent performance, even at high speeds up to 28,000 rpm.

Designed for universal matching, it supports back-to-back, face-to-face, or tandem arrangements.
This flexibility makes 7014 FEGA/P4A Bearing suitable for complex machinery requiring exact alignment.

Application

Industrial Uses of 7014 FEGA/P4A Bearing
7014 FEGA/P4A Bearing is commonly used in high-speed machine tools, where its precision angular contact design ensures accurate spindle rotation. The phenolic cage reduces friction, making it suitable for continuous operation.

What Makes 7014 FEGA/P4A Bearing a Preferred Choice?
In automotive applications, 7014 FEGA/P4A Bearing supports wheel hubs and transmissions, thanks to its extra-light preload and high-speed capability. The chrome steel construction provides durability under heavy loads.

Perfect Fit for Automation: 7014 FEGA/P4A Bearing
For robotic arms and automated systems, 7014 FEGA/P4A Bearing offers smooth movement with minimal vibration. Its open design allows for easy lubrication, extending service life in demanding environments.

Medical vs Industrial: Where 7014 FEGA/P4A Bearing Excels
In medical imaging devices, 7014 FEGA/P4A Bearing’s precision ensures reliable performance, while in industrial pumps, it handles radial and axial loads efficiently. The P4A tolerance class guarantees consistent quality.
