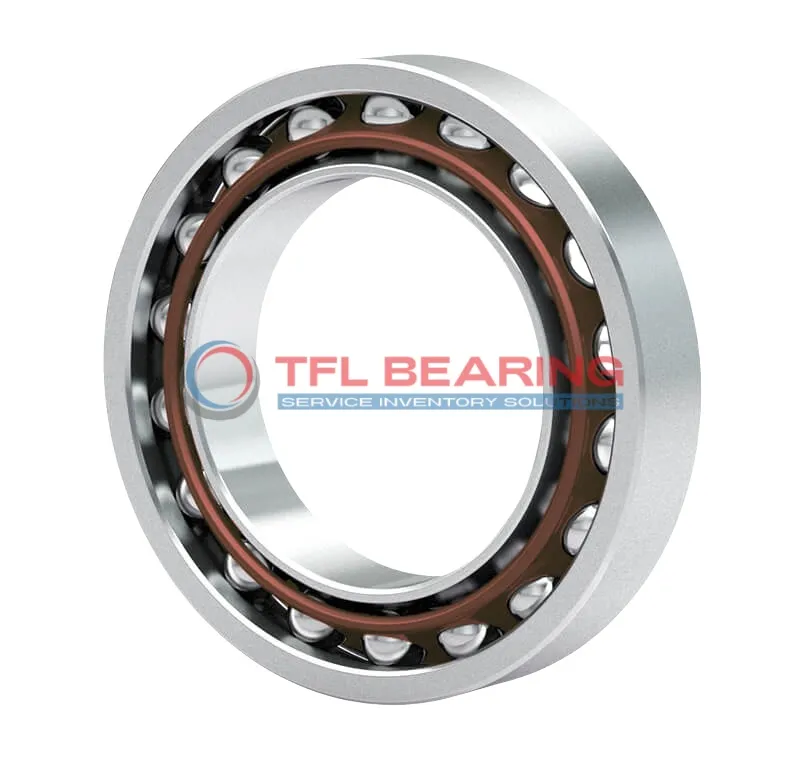

Super Precision Angular Contact Ball Bearings 7014 CEGB/P4A

Super Precision Angular Contact Ball Bearings 7014 CEGB/P4A

The 7014 CEGB/P4A is a super precision angular contact ball bearing with a 70mm bore and 110mm outer diameter, crafted from durable chrome steel. It handles radial loads up to 5355 lbf and spins smoothly at speeds up to 27,000 RPM.

With a 15° contact angle and light preload, it offers precise performance for angular contact applications. The open design and phenolic cage ensure reliable operation in temperatures from -30°C to 110°C.

This bearing is interchangeable with SKF models and comes lubricated for easy use. Ideal for high-speed machinery like spindles or CNC equipment where accuracy is key.

Weighing 0.61kg, it’s part of a universal matching set, suitable for back-to-back, face-to-face, or tandem arrangements. Compliant with P4A tolerance standards for consistent quality.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 7014 CEGB/P4A
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 70 mm
  • Bore Dia Tolerance -0.004mm to 0
  • Outer Dia 110 mm
  • Outer Dia Tolerance -0.004mm to 0
  • Width 20 mm
  • Width Tolerance -0.2mm to 0
  • Ball Dia 9.525 mm
  • Ball Qty 25
  • Contact Angle 15°
  • Tolerance Class P4A
  • System of Measurement Metric
  • Seal Type Open
  • Matched Arrangement No
  • Number Of Bearings In Matched Set 4
  • Universal Matching Bearing Yes, back-to-back (<>), face-to-face (><) or tandem (>>)
  • Preload Light / Class B
  • For Load Direction Angular Contact
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Phenolic
  • Dynamic Radial Load 5355 lbf
  • Static Radial Load 4118 lbf
  • Lubrication Lubricated
  • Temperature Range - 30°C to 110 °C
  • Max Speed 27000 rpm
  • Weight 0.61 kg
Super Precision Angular Contact Ball Bearings 7014 CEGB/P4A dimension drawing
Download DWG Download PDF

Features

Performance Features of 7014 CEGB/P4A Bearing

7014 CEGB/P4A Bearing is designed with a 15° contact angle, optimising load distribution for angular contact applications.
Its chrome steel rings and balls ensure durability and smooth operation under high-speed conditions.

The phenolic cage in 7014 CEGB/P4A Bearing reduces friction and wear, enhancing its performance.
With a maximum speed of 27,000 rpm, it is suitable for precision tasks requiring high rotational accuracy.

7014 CEGB/P4A Bearing can handle dynamic radial loads up to 5355 lbf, making it reliable for demanding applications.
Its P4A tolerance class ensures consistent performance and precision in critical operations.

The open design of 7014 CEGB/P4A Bearing allows for easy lubrication, maintaining optimal performance.
It operates efficiently within a temperature range of -30°C to 110°C, adapting to various working environments.

7014 CEGB/P4A Bearing is part of a universal matching set, offering flexibility in back-to-back, face-to-face, or tandem arrangements.
This feature makes it versatile for different mounting configurations and applications.

Application

Industrial Uses of 7014 CEGB/P4A Bearing
7014 CEGB/P4A Bearing is commonly used in high-speed machine tools, where its precision and light preload ensure smooth operation. The open design allows for efficient lubrication, extending service life in demanding conditions.

Where Is 7014 CEGB/P4A Bearing Used?
In automotive applications, 7014 CEGB/P4A Bearing supports components like electric motors and gearboxes, thanks to its angular contact design. Its phenolic cage reduces friction, making it ideal for high-speed rotations.

Optimized for Performance: 7014 CEGB/P4A Bearing
For robotics and automation, 7014 CEGB/P4A Bearing provides reliable performance in robotic arms and CNC machinery. The P4A tolerance class ensures consistent accuracy in repetitive tasks.

Automotive vs Aerospace: Applications of 7014 CEGB/P4A Bearing
In aerospace, 7014 CEGB/P4A Bearing handles precise movements in flight control systems, while in automotive, it excels in transmission systems. Its chrome steel construction offers durability in both environments.

Practical Applications of 7014 CEGB/P4A Bearing
7014 CEGB/P4A Bearing is a great fit for medical imaging devices, where its low vibration and high-speed capabilities are essential. The temperature range also makes it suitable for various clinical settings.
