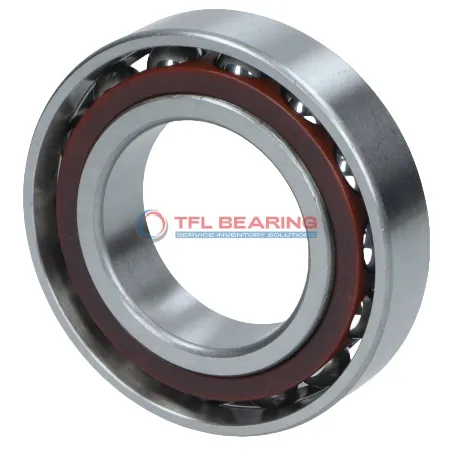

Super Precision Angular Contact Ball Bearings 7014 CEGA/HCP4AL1

Super Precision Angular Contact Ball Bearings 7014 CEGA/HCP4AL1

The 7014 CEGA/HCP4AL1 is a super precision angular contact ball bearing with a 70mm bore and 110mm outer diameter, designed for high-speed applications. It features a 15° contact angle and is made from durable chrome steel with ceramic balls for smooth operation.

This bearing handles radial loads up to 5355 lbf and spins at speeds up to 27,000 RPM, making it suitable for demanding tasks. Its phenolic cage ensures stability and reduces friction during high-speed rotation.

With an extra-light preload (Class A), it offers precise performance in matched sets of four. The open design allows easy lubrication, and it works in temperatures from -30°C to 110°C.

Ideal for machine tools or spindle drives, this bearing is interchangeable with SKF models. Its universal matching capability supports back-to-back, face-to-face, or tandem arrangements for flexible use. Weighing 0.56kg, it balances strength and precision.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 7014 CEGA/HCP4AL1
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 70 mm
  • Bore Dia Tolerance -0.004mm to 0
  • Outer Dia 110 mm
  • Outer Dia Tolerance -0.004mm to 0
  • Width 20 mm
  • Width Tolerance -0.2mm to 0
  • Ball Dia 9.525 mm
  • Ball Qty 25
  • Contact Angle 15°
  • Tolerance Class P4A
  • System of Measurement Metric
  • Seal Type Open
  • Matched Arrangement No
  • Number Of Bearings In Matched Set 4
  • Universal Matching Bearing Yes, back-to-back (<>), face-to-face (><) or tandem (>>)
  • Preload Extra light / Class A
  • For Load Direction Angular Contact
  • Ring Material Chrome Steel
  • Ball Material Ceramic
  • Cage Material Phenolic
  • Dynamic Radial Load 5355 lbf
  • Static Radial Load 4118 lbf
  • Lubrication Lubricated
  • Temperature Range - 30°C to 110 °C
  • Max Speed 27000 rpm
  • Weight 0.56 kg
Super Precision Angular Contact Ball Bearings 7014 CEGA/HCP4AL1 dimension drawing
Download DWG Download PDF

Features

Performance Features of 7014 CEGA/HCP4AL1 Bearing

7014 CEGA/HCP4AL1 Bearing is designed with a 15° contact angle, optimising load distribution for angular contact applications.
Its chrome steel rings and ceramic balls enhance durability while reducing friction.

The phenolic cage ensures smooth operation, even at high speeds up to 27,000 rpm.
This bearing is preloaded for extra light performance, making it ideal for precision tasks.

With a dynamic radial load capacity of 5355 lbf, it handles demanding conditions reliably.
The open design allows for easy lubrication, maintaining performance over time.

7014 CEGA/HCP4AL1 Bearing operates efficiently within a temperature range of -30°C to 110°C.
Its universal matching capability supports various configurations like back-to-back or face-to-face arrangements.

Application

Industrial Uses of 7014 CEGA/HCP4AL1 Bearing
The 7014 CEGA/HCP4AL1 Bearing is commonly used in high-speed machine tools, where its ceramic balls and phenolic cage reduce friction and heat buildup.
Its precision P4A tolerance makes it ideal for applications demanding tight control, such as CNC spindles.

How Does 7014 CEGA/HCP4AL1 Bearing Improve Performance?
In automotive systems, 7014 CEGA/HCP4AL1 Bearing enhances gearbox efficiency with its 15° contact angle, handling combined radial and axial loads smoothly.
The extra-light preload ensures minimal vibration, crucial for performance vehicles.

Built for Heavy-Duty Use: 7014 CEGA/HCP4AL1 Bearing
This bearing excels in robotics, where its chrome steel rings and ceramic balls provide durability in repetitive, high-precision movements.
The open design allows for easy lubrication, extending service life in automated production lines.

Medical vs Industrial: Where 7014 CEGA/HCP4AL1 Bearing Excels
In medical imaging devices, 7014 CEGA/HCP4AL1 Bearing’s low-noise operation and precision are vital for accurate diagnostics.
Industrial pumps benefit from its high-speed capability and resistance to wear, even under continuous operation.

Perfect Fit for Automation: 7014 CEGA/HCP4AL1 Bearing
The 7014 CEGA/HCP4AL1 Bearing is a reliable choice for 3D printers, where its tandem arrangement supports precise linear motion.
Its temperature stability ensures consistent performance in varying workshop conditions.
