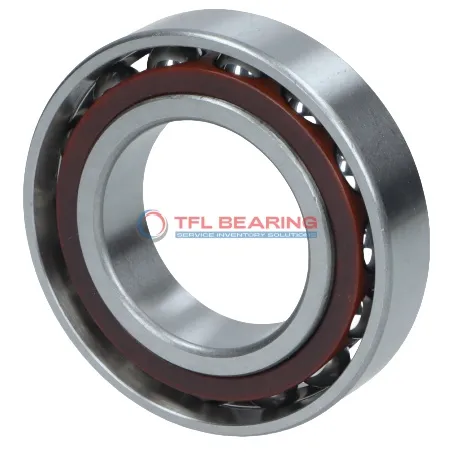

Super Precision Angular Contact Ball Bearings 7014 CEGA/HCP4A

Brand: TFL Bearing Interchangeable: SKF 7014 CEGA/HCP4A 70 mm × 110 mm × 20 mm Metric Open
Part number: 7014 CEGA/HCP4A
Super Precision Angular Contact Ball Bearings 7014 CEGA/HCP4A
In Stock
US$143.82 / piece
Reference price · volume pricing on request
Get a Quote WhatsApp
  • ISO 9001 quality system
  • Pre-shipment inspection
  • Lead time confirmed with your quote
Dimensions
Bore Dia70 mm
Bore Dia Tolerance-0.004mm to 0
Outer Dia110 mm
Outer Dia Tolerance-0.004mm to 0
Width20 mm
Width Tolerance-0.2mm to 0
Ball Dia9.525 mm
Performance
PreloadExtra light / Class A
Dynamic Radial Load5,355 lbf
Static Radial Load4,118 lbf
Temperature Range- 30°C to 110 °C
Max Speed27,000 rpm
Characteristics
Ball Qty25
Contact Angle15°
Tolerance ClassP4A
System of MeasurementMetric
Seal TypeOpen
Matched ArrangementNo
Number Of Bearings In Matched Set4
Universal Matching BearingYes, back-to-back (<>), face-to-face (><) or tandem (>>)
For Load DirectionAngular Contact
LubricationLubricated
Weight0.56 kg
Material
Ring MaterialChrome Steel
Ball MaterialCeramic
Cage MaterialPhenolic
Dimension drawing · click to enlarge

Description

The 7014 CEGA/HCP4A is a super precision angular contact ball bearing with a 70mm bore and 110mm outer diameter, crafted from durable chrome steel. It features a 15° contact angle and ceramic balls for smooth operation.

This bearing handles radial loads up to 5355 lbf and spins at impressive speeds up to 27,000 RPM. Its phenolic cage ensures stability, while the extra light preload (Class A) reduces friction.

The open design allows for easy lubrication, making maintenance straightforward. It performs reliably in temperatures from -30°C to 110°C.

Ideal for high-precision applications like machine tool spindles or robotics, where accuracy and speed are crucial. Weighing 0.56kg, it’s part of a matched set of four bearings for versatile mounting options.

Features

Performance Features of 7014 CEGA/HCP4A Bearing

7014 CEGA/HCP4A Bearing is crafted with chrome steel rings and ceramic balls, ensuring high precision and durability.
Its 15° contact angle provides excellent angular contact performance for complex load conditions.

The phenolic cage maintains ball alignment, reducing friction and enhancing operational smoothness.
With a dynamic radial load capacity of 5355 lbf, it handles demanding applications with ease.

7014 CEGA/HCP4A Bearing operates at speeds up to 27,000 rpm, making it suitable for high-speed machinery.
Its P4A tolerance class guarantees exceptional accuracy and reliability in precision tasks.

The open design allows for easy lubrication, ensuring consistent performance over time.
This bearing is ideal for applications requiring both high-speed operation and precise load handling.

Application

Ideal for Precision: 7014 CEGA/HCP4A Bearing
The 7014 CEGA/HCP4A Bearing excels in high-speed machine tools, where its ceramic balls and phenolic cage reduce friction for smoother operation. Its P4A tolerance ensures consistent performance in precision applications like CNC spindles.

In robotics, 7014 CEGA/HCP4A Bearing supports articulated arms, handling combined radial and axial loads with ease. The open design simplifies lubrication, extending service life in automated production lines.

For aerospace components, 7014 CEGA/HCP4A Bearing’s lightweight construction and high-speed capability make it suitable for actuators and control systems. The chrome steel rings provide durability under varying thermal conditions.

Medical imaging devices benefit from 7014 CEGA/HCP4A Bearing’s low vibration and quiet operation. Its extra-light preload minimises noise, crucial for sensitive diagnostic equipment.

In electric vehicle motors, 7014 CEGA/HCP4A Bearing handles angular loads efficiently, contributing to energy-saving performance. The metric sizing ensures compatibility with European and Asian automotive designs.
