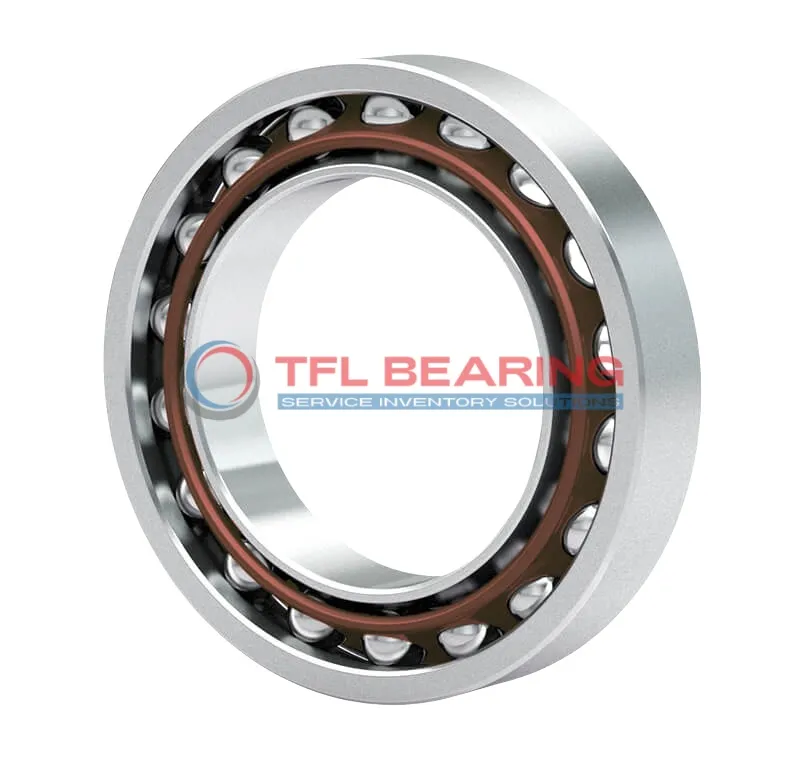

Super Precision Angular Contact Ball Bearings 7014 CE/P4BVG275

Brand: TFL Bearing Interchangeable: SKF 7014 CE/P4BVG275 70 mm × 110 mm × 20 mm Metric Open
Part number: 7014 CE/P4BVG275
Super Precision Angular Contact Ball Bearings 7014 CE/P4BVG275
In Stock
US$468.62 / piece
Reference price · volume pricing on request
Get a Quote WhatsApp
  • ISO 9001 quality system
  • Pre-shipment inspection
  • Lead time confirmed with your quote
Dimensions
Bore Dia70 mm
Bore Dia Tolerance-0.007mm to 0
Outer Dia110 mm
Outer Dia Tolerance-0.008mm to 0
Width20 mm
Width Tolerance-0.2mm to 0
Ball Dia9.525 mm
Performance
PreloadAvailable
Dynamic Radial Load5,355 lbf
Static Radial Load4,118 lbf
Temperature Range-30° to 110 °C
Max Speed17,000 rpm
Characteristics
Ball Qty25
Contact Angle15°
Tolerance ClassP4 (ABEC-7)
System of MeasurementMetric
Seal TypeOpen
Matched ArrangementAvailable
For Load DirectionAngular Contact
LubricationLubricated
Weight0.61 kg
Material
Ring MaterialChrome Steel
Ball MaterialChrome Steel
Cage MaterialPhenolic
Dimension drawing · click to enlarge

Description

The 7014 CE/P4BVG275 is a super precision angular contact ball bearing with a 70mm bore and 110mm outer diameter, crafted from durable chrome steel. It handles radial loads up to 5355 lbf and operates smoothly at speeds up to 17,000 RPM.

With a 15° contact angle and open design, it offers excellent performance for angular contact applications. The phenolic cage ensures quiet operation and long service life.

This bearing comes preloaded and is available in matched arrangements for enhanced stability. It works well in temperatures ranging from -30°C to 110°C.

Ideal for high-precision machinery like spindles or CNC equipment, where accuracy and speed are crucial. Weighing 0.61kg, it’s a robust yet manageable choice for demanding applications. Compliant with P4 tolerance standards for reliable performance.

Features

Performance Features of 7014 CE/P4BVG275 Bearing

7014 CE/P4BVG275 Bearing is designed with a 15° contact angle, optimising load distribution for angular contact applications.
Its chrome steel rings and balls ensure durability, while the phenolic cage reduces friction and noise.

With a dynamic radial load capacity of 5355 lbf, it handles demanding conditions efficiently.
The P4 tolerance class guarantees high precision, making it suitable for critical applications.

7014 CE/P4BVG275 Bearing operates smoothly at speeds up to 17,000 rpm.
Its open design allows for easy lubrication, ensuring consistent performance over time.

Application

Industrial Uses of 7014 CE/P4BVG275 Bearing
7014 CE/P4BVG275 Bearing is commonly used in high-precision machine tools, where its angular contact design ensures accurate spindle rotation. The open seal type allows for efficient lubrication, extending service life in demanding conditions.

In automotive applications, 7014 CE/P4BVG275 Bearing supports gearbox systems, providing smooth operation under radial and axial loads. Its phenolic cage offers lightweight durability, ideal for high-speed performance.

For automation equipment, 7014 CE/P4BVG275 Bearing is a reliable choice for robotic arms, ensuring precise movement with minimal friction. The P4 tolerance class guarantees consistent performance in repetitive tasks.

Medical imaging devices benefit from 7014 CE/P4BVG275 Bearing’s chrome steel construction, which maintains stability in sensitive environments. The lubricated design reduces maintenance needs, crucial for critical healthcare equipment.

In consumer electronics, 7014 CE/P4BVG275 Bearing can be found in high-end printers, where its quiet operation enhances user experience. The matched arrangement option allows for custom configurations to suit specific device requirements.
