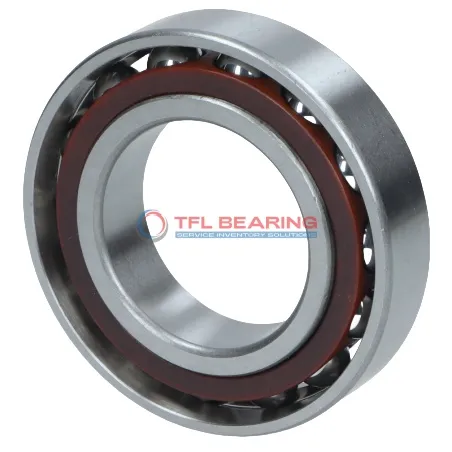

Super Precision Angular Contact Ball Bearings 7014 CE/HCP4BVG275

Super Precision Angular Contact Ball Bearings 7014 CE/HCP4BVG275

The 7014 CE/HCP4BVG275 is a super precision angular contact ball bearing with a 70mm bore and 110mm outer diameter, crafted from chrome steel for durability. It handles radial loads up to 5355 lbf and spins smoothly at speeds up to 20,500 RPM.

Its 15° contact angle and ceramic balls reduce friction, while the phenolic cage ensures quiet operation. The open design allows easy lubrication, and it comes preloaded for immediate use.

This bearing is ideal for high-speed applications like machine tool spindles or precision instruments. With a P4 tolerance class, it offers excellent accuracy and performance.

Weighing 0.56kg, it’s lightweight yet robust. It’s interchangeable with SKF bearings, making it a reliable choice for replacements. Works well in temperatures from -30°C to 110°C.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 7014 CE/HCP4BVG275
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 70 mm
  • Bore Dia Tolerance -0.007mm to 0
  • Outer Dia 110 mm
  • Outer Dia Tolerance -0.008mm to 0
  • Width 20 mm
  • Width Tolerance -0.2mm to 0
  • Ball Dia 9.525 mm
  • Ball Qty 25
  • Contact Angle 15°
  • Tolerance Class P4 (ABEC-7)
  • System of Measurement Metric
  • Seal Type Open
  • Matched Arrangement Available
  • Preload Available
  • For Load Direction Angular Contact
  • Ring Material Chrome Steel
  • Ball Material Ceramic
  • Cage Material Phenolic
  • Dynamic Radial Load 5355 lbf
  • Static Radial Load 4118 lbf
  • Lubrication Lubricated
  • Temperature Range -30° to 110 °C
  • Max Speed 20500 rpm
  • Weight 0.56 kg
  • Price（$） 468.774
Super Precision Angular Contact Ball Bearings 7014 CE/HCP4BVG275 dimension drawing
Download DWG Download PDF

Features

Performance Features of 7014 CE/HCP4BVG275 Bearing

7014 CE/HCP4BVG275 Bearing is designed with a 15° contact angle, optimising load distribution for angular contact applications.
Its chrome steel rings and ceramic balls reduce friction, enhancing performance in high-speed operations.

The phenolic cage ensures smooth operation, even at speeds up to 20,500 rpm.
With a dynamic radial load capacity of 5355 lbf, it handles demanding conditions reliably.

7014 CE/HCP4BVG275 Bearing operates efficiently in temperatures from -30° to 110°C.
Its precision P4 tolerance class ensures consistent performance in critical applications.

Application

Key Fields for 7014 CE/HCP4BVG275 Bearing
7014 CE/HCP4BVG275 Bearing is commonly used in high-speed machine tools, where its precision angular contact design ensures accurate spindle rotation. The ceramic balls reduce friction, making it suitable for applications demanding smooth operation.

In robotics, 7014 CE/HCP4BVG275 Bearing supports articulated arms, providing stability during repetitive movements. Its phenolic cage offers lightweight durability, ideal for automated systems.

For aerospace components, 7014 CE/HCP4BVG275 Bearing handles both radial and axial loads efficiently. The P4 tolerance class ensures reliability in critical flight systems.

Medical imaging devices benefit from 7014 CE/HCP4BVG275 Bearing’s low vibration and high-speed capabilities. The chrome steel rings enhance longevity in sterile environments.
