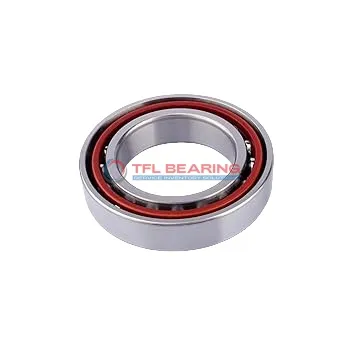

Super Precision Angular Contact Ball Bearings 7014 CE/HCP4ADT

Brand: TFL Bearing Interchangeable: SKF 7014 CE/HCP4ADT 70 mm × 110 mm × 40 mm Metric Open
Part number: 7014 CE/HCP4ADT
Super Precision Angular Contact Ball Bearings 7014 CE/HCP4ADT
In Stock
Price on request
Send your part number and quantity for a quote
Get a Quote WhatsApp
  • ISO 9001 quality system
  • Pre-shipment inspection
  • Lead time confirmed with your quote
Dimensions
Bore Dia70 mm
Bore Dia Tolerance-0.004mm to 0
Outer Dia110 mm
Outer Dia Tolerance-0.004mm to 0
Width40 mm
Width Tolerance-0.2mm to 0
Ball Dia9.525 mm
Performance
PreloadAvailable
Dynamic Radial Load8,775 lbf
Static Radial Load8,212 lbf
Temperature Range- 30°C to 110 °C
Max Speed22,000 rpm
Characteristics
Ball Qty25
Contact Angle15°
Tolerance ClassP4A
System of MeasurementMetric
Seal TypeOpen
Matched Arrangement2 bearings << DT
Number Of Bearings In Matched Set2
Universal Matching BearingNo
For Load DirectionAngular Contact
LubricationLubricated
Weight1.11 kg
Material
Ring MaterialChrome Steel
Ball MaterialCeramic
Cage MaterialPhenolic
Dimension drawing · click to enlarge

Description

The 7014 CE/HCP4ADT is a super precision angular contact ball bearing with a 70mm bore and 110mm outer diameter, crafted from chrome steel for durability. It features a 15° contact angle and comes in a matched set of two bearings for balanced performance.

This bearing handles radial loads up to 8775 lbf and spins smoothly at speeds up to 22,000 RPM, thanks to its ceramic balls and phenolic cage. Its open design allows easy lubrication, ensuring long-lasting operation.

The P4A tolerance class guarantees high precision, making it ideal for applications like machine tools or high-speed spindles. It operates reliably in temperatures from -30°C to 110°C.

Weighing 1.11kg, this bearing is robust yet lightweight. It’s interchangeable with SKF bearings, offering a dependable choice for precision engineering needs.

Features

Performance Features of 7014 CE/HCP4ADT Bearing

7014 CE/HCP4ADT Bearing is designed with a 15° contact angle, optimising load distribution for angular contact applications.
Its chrome steel rings and ceramic balls enhance durability while reducing friction.

The phenolic cage ensures smooth operation, even at high speeds up to 22,000 rpm.
With a dynamic radial load capacity of 8775 lbf, it handles demanding tasks with ease.

7014 CE/HCP4ADT Bearing operates efficiently in temperatures ranging from -30°C to 110°C.
Its precision P4A tolerance class guarantees consistent performance in critical applications.

The matched arrangement of two bearings provides added stability and load support.
Preload availability further enhances its performance in high-precision scenarios.

Application

Common Applications of 7014 CE/HCP4ADT Bearing
In machine tools, 7014 CE/HCP4ADT Bearing excels with its angular contact design, handling both radial and axial loads efficiently. The ceramic balls reduce friction, making it ideal for high-speed spindle applications.

Automotive Uses of 7014 CE/HCP4ADT Bearing
For performance vehicles, 7014 CE/HCP4ADT Bearing supports wheel hubs and transmissions, where precision and durability are key. Its P4A tolerance ensures smooth operation even under demanding conditions.

Where Is 7014 CE/HCP4ADT Bearing Used in Robotics?
In robotic arms, 7014 CE/HCP4ADT Bearing provides the accuracy needed for repetitive movements. The matched arrangement of two bearings enhances stability in automated systems.

Medical Equipment and 7014 CE/HCP4ADT Bearing
Surgical robots benefit from 7014 CE/HCP4ADT Bearing’s low friction and high precision. The phenolic cage material ensures quiet operation, crucial in sensitive medical environments.

Why Choose 7014 CE/HCP4ADT Bearing for Industrial Fans?
Industrial fans rely on 7014 CE/HCP4ADT Bearing for its ability to handle high speeds and loads. The open seal design allows for easy lubrication, extending service life in dusty conditions.
