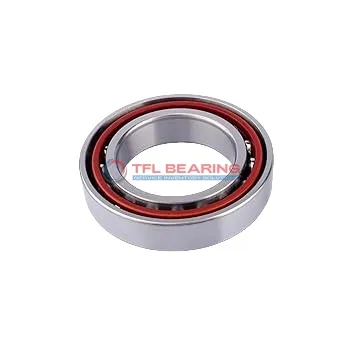

Super Precision Angular Contact Ball Bearings 7014 CE/HCP4ADBA

Brand: TFL Bearing Interchangeable: SKF 7014 CE/HCP4ADBA 70 mm × 110 mm × 40 mm Metric Open
Part number: 7014 CE/HCP4ADBA
Super Precision Angular Contact Ball Bearings 7014 CE/HCP4ADBA
In Stock
US$428.94 / piece
Reference price · volume pricing on request
Get a Quote WhatsApp
  • ISO 9001 quality system
  • Pre-shipment inspection
  • Lead time confirmed with your quote
Dimensions
Bore Dia70 mm
Bore Dia Tolerance-0.004mm to 0
Outer Dia110 mm
Outer Dia Tolerance-0.004mm to 0
Width40 mm
Width Tolerance-0.2mm to 0
Ball Dia9.525 mm
Performance
PreloadExtra light / Class A
Dynamic Radial Load8,775 lbf
Static Radial Load8,212 lbf
Temperature Range- 30°C to 110 °C
Max Speed22,000 rpm
Characteristics
Ball Qty25
Contact Angle15°
Tolerance ClassP4A
System of MeasurementMetric
Seal TypeOpen
Matched Arrangement2 bearings <> DB
Number Of Bearings In Matched Set2
Universal Matching BearingNo
For Load DirectionAngular Contact
LubricationLubricated
Weight1.11 kg
Material
Ring MaterialChrome Steel
Ball MaterialCeramic
Cage MaterialPhenolic
Dimension drawing · click to enlarge

Description

The 7014 CE/HCP4ADBA is a super precision angular contact ball bearing with a 70mm bore and 110mm outer diameter, crafted from high-quality chrome steel. Its compact 40mm width and 15° contact angle make it ideal for handling combined radial and axial loads.

With a dynamic radial load capacity of 8775 lbf, it spins smoothly at speeds up to 22,000 RPM. The ceramic balls and phenolic cage reduce friction, while the open design allows for easy lubrication.

This matched set of two bearings comes with an extra-light preload for precise alignment. It performs reliably in temperatures from -30°C to 110°C, meeting P4A tolerance standards.

Perfect for high-speed applications like machine tool spindles or precision robotics, where accuracy and low friction are key. Weighing 1.11kg, it balances durability with performance.

Features

How Does 7014 CE/HCP4ADBA Bearing Achieve Super Precision?

7014 CE/HCP4ADBA Bearing features a 15° contact angle, optimised for high-speed angular contact applications.
Its ceramic balls and chrome steel rings reduce friction, enhancing precision and durability.

With a dynamic radial load capacity of 8775 lbf, it handles demanding operations effortlessly.
The phenolic cage ensures smooth operation, even at speeds up to 22,000 rpm.

Designed for extra light preload, 7014 CE/HCP4ADBA Bearing maintains accuracy in precision tasks.
Its matched arrangement of two bearings provides stability and balanced performance.

The open seal design allows easy lubrication, ensuring long service life.
7014 CE/HCP4ADBA Bearing operates reliably in temperatures from -30°C to 110°C.

Application

Industrial Uses of 7014 CE/HCP4ADBA Bearing
In machine tools, 7014 CE/HCP4ADBA Bearing excels due to its high-speed capability and precision angular contact design. The ceramic balls reduce friction, making it ideal for spindle applications where accuracy is key.

Where Is 7014 CE/HCP4ADBA Bearing Used?
You’ll often find 7014 CE/HCP4ADBA Bearing in robotics, where its matched arrangement ensures smooth movement in articulated arms. The phenolic cage adds durability, even in continuous operation.

Built for Heavy-Duty Use: 7014 CE/HCP4ADBA Bearing
For conveyor systems, 7014 CE/HCP4ADBA Bearing handles radial and axial loads effortlessly. Its extra-light preload ensures consistent performance in demanding industrial environments.

Automotive vs Aerospace: Applications of 7014 CE/HCP4ADBA Bearing
In automotive gearboxes, 7014 CE/HCP4ADBA Bearing offers reliable performance under high speeds. For aerospace, its P4A tolerance class meets the stringent precision requirements of flight systems.

Perfect Fit for Automation: 7014 CE/HCP4ADBA Bearing
7014 CE/HCP4ADBA Bearing is a go-to for automated production lines, thanks to its low heat generation and stable operation. The open design allows for easy lubrication, extending service life.
