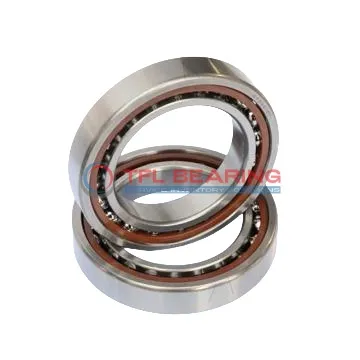

Super Precision Angular Contact Ball Bearings 7014 ACE/P4BVG275

Super Precision Angular Contact Ball Bearings 7014 ACE/P4BVG275

The 7014 ACE/P4BVG275 is a super precision angular contact ball bearing with a 70mm bore and 110mm outer diameter, crafted from durable chrome steel. It handles radial loads up to 5062 lbf and operates smoothly at speeds up to 15,500 RPM.

With a 25° contact angle and open design, it offers excellent performance in high-speed applications. The phenolic cage ensures stability and reduces friction during operation.

This bearing is available with preload and matched arrangements, making it versatile for precise setups. Ideal for machine tools or spindle applications where accuracy is key.

Weighing 0.61kg, it’s robust yet manageable for its size. Compliant with P4 tolerance standards, it ensures reliable performance in temperatures from -30°C to 110°C.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 7014 ACE/P4BVG275
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 70 mm
  • Bore Dia Tolerance -0.007mm to 0
  • Outer Dia 110 mm
  • Outer Dia Tolerance -0.008mm to 0
  • Width 20 mm
  • Width Tolerance -0.2mm to 0
  • Ball Dia 9.525 mm
  • Ball Qty 25
  • Contact Angle 25°
  • Tolerance Class P4 (ABEC-7)
  • System of Measurement Metric
  • Seal Type Open
  • Matched Arrangement Available
  • Preload Available
  • For Load Direction Angular Contact
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Phenolic
  • Dynamic Radial Load 5062 lbf
  • Static Radial Load 3892 lbf
  • Lubrication Lubricated
  • Temperature Range -30° to 110 °C
  • Max Speed 15500 rpm
  • Weight 0.61 kg
  • Price（$） 468.864
Super Precision Angular Contact Ball Bearings 7014 ACE/P4BVG275 dimension drawing
Download DWG Download PDF

Features

Why Choose 7014 ACE/P4BVG275 Bearing for Precision Tasks?

7014 ACE/P4BVG275 Bearing features a 25° contact angle, ideal for handling combined radial and axial loads.
The chrome steel rings and balls ensure durability, while the phenolic cage reduces friction for smoother operation.

With a dynamic radial load capacity of 5062 lbf, it performs reliably in high-precision applications.
Its P4 tolerance class (ABEC-7) guarantees exceptional accuracy and consistency.

The open design allows for easy lubrication, extending the bearing’s service life.
It operates efficiently at speeds up to 15,500 rpm, making it suitable for demanding environments.

Application

Industrial Uses of 7014 ACE/P4BVG275 Bearing
7014 ACE/P4BVG275 Bearing is commonly used in high-precision machine tools, where its angular contact design ensures accurate radial and axial load handling. The phenolic cage reduces friction, making it suitable for high-speed operations.

In automotive applications, 7014 ACE/P4BVG275 Bearing supports components like wheel hubs and transmissions, where its durability and preload options enhance performance. The metric sizing ensures compatibility with a variety of vehicle designs.

For robotics, 7014 ACE/P4BVG275 Bearing’s precision and open design make it ideal for robotic arms and automated systems. Its high-speed capability and low friction contribute to smooth, reliable movement.

In medical imaging devices, 7014 ACE/P4BVG275 Bearing’s chrome steel construction provides consistent performance under demanding conditions. The P4 tolerance class ensures the precision required for sensitive equipment.

For consumer electronics like high-end printers, 7014 ACE/P4BVG275 Bearing offers quiet operation and long service life. Its lubricated design reduces maintenance needs, making it a practical choice for everyday devices.
