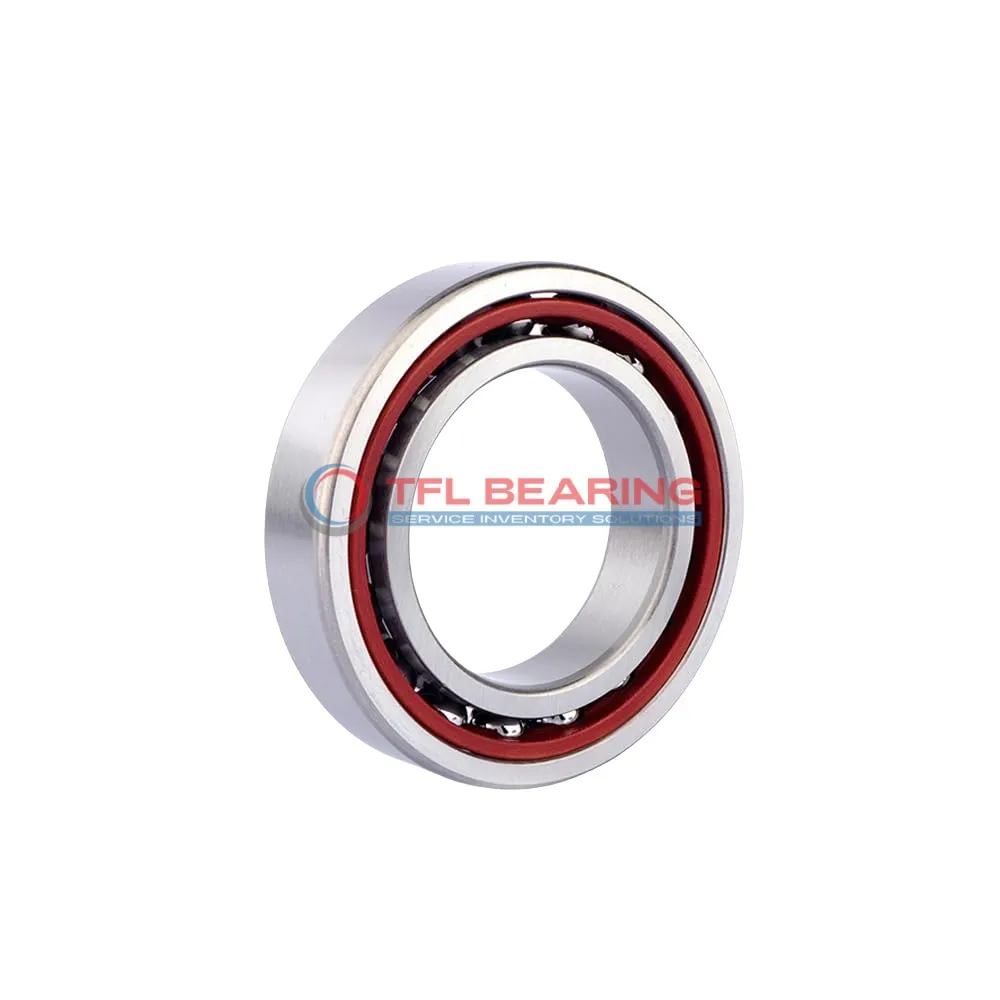

Super Precision Angular Contact Ball Bearings 7009 ACE/HCP4ADBA

Brand: TFL Bearing Interchangeable: SKF 7009 ACE/HCP4ADBA 45 mm × 75 mm × 32 mm Metric Open
Part number: 7009 ACE/HCP4ADBA
Super Precision Angular Contact Ball Bearings 7009 ACE/HCP4ADBA
In Stock
Price on request
Send your part number and quantity for a quote
Get a Quote WhatsApp
  • ISO 9001 quality system
  • Pre-shipment inspection
  • Lead time confirmed with your quote
Dimensions
Bore Dia45 mm
Bore Dia Tolerance-0.004mm to 0
Outer Dia75 mm
Outer Dia Tolerance-0.004mm to 0
Width32 mm
Width Tolerance-0.2mm to 0
Ball Dia7.144 mm
Performance
PreloadExtra light / Class A
Dynamic Radial Load4,478 lbf
Static Radial Load3,668 lbf
Temperature Range- 30°C to 110 °C
Max Speed46,000 rpm
Characteristics
Ball Qty21
Contact Angle25°
Tolerance ClassP4A
System of MeasurementMetric
Seal TypeOpen
Matched Arrangement2 bearings <> DB
Number Of Bearings In Matched Set2
Universal Matching BearingNo
For Load DirectionAngular Contact
LubricationLubricated
Weight0.45 kg
Material
Ring MaterialChrome Steel
Ball MaterialCeramic
Cage MaterialPhenolic

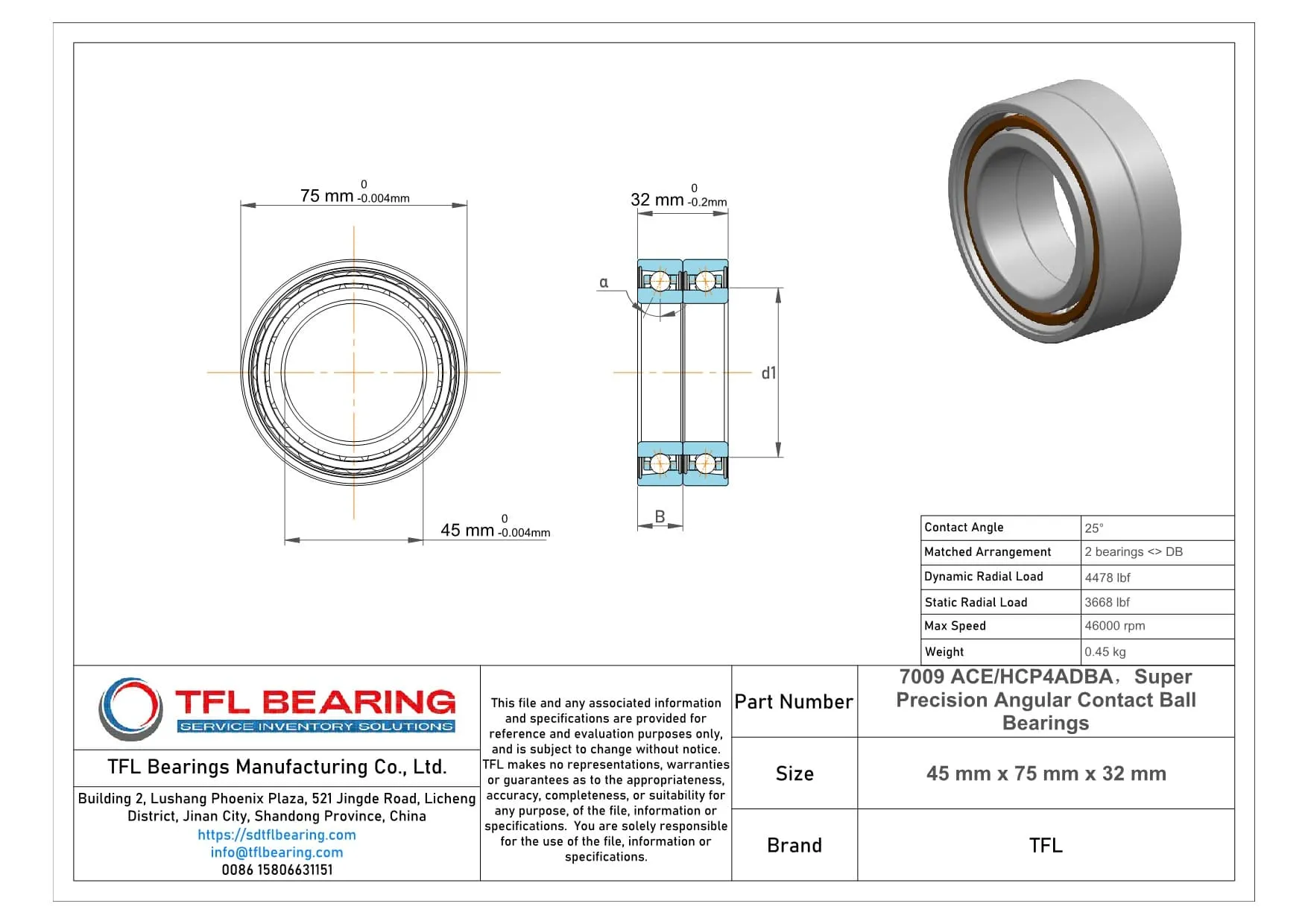

Dimension drawing · click to enlarge

Description

The 7009 ACE/HCP4ADBA is a super precision angular contact ball bearing with a 45mm bore and 75mm outer diameter, crafted from high-quality chrome steel. It features a 25° contact angle and comes in a matched set of two bearings for balanced performance.

This bearing handles radial loads up to 4478 lbf and spins smoothly at speeds up to 46,000 RPM, thanks to its ceramic balls and phenolic cage. Its open design allows for easy lubrication, ensuring long-lasting operation.

With an extra light preload and P4A tolerance class, it offers precise and reliable performance. Ideal for high-speed applications like machine tool spindles or precision instruments where accuracy is key.

Weighing 0.45kg, it’s lightweight yet durable, suitable for temperatures from -30°C to 110°C. The matched set arrangement ensures consistent performance in demanding conditions.

Features

Engineered for Precision: 7009 ACE/HCP4ADBA Bearing

7009 ACE/HCP4ADBA Bearing features a 25° contact angle, optimised for high-precision angular contact applications.
The ceramic balls and chrome steel rings ensure smooth operation with minimal friction.

With a dynamic radial load capacity of 4478 lbf, it handles demanding tasks reliably.
Its phenolic cage maintains ball alignment, reducing wear and extending service life.

The P4A tolerance class guarantees exceptional accuracy for precision instruments.
Lubricated for efficiency, it supports speeds up to 46,000 rpm without compromising performance.

Designed for matched arrangement (DB), it ensures balanced load distribution.
The open seal type allows easy maintenance while operating in temperatures from -30°C to 110°C.

Application

Key Fields for 7009 ACE/HCP4ADBA Bearing
7009 ACE/HCP4ADBA Bearing is widely used in high-speed machine tools, where its precision and angular contact design ensure accurate spindle performance. The ceramic balls reduce friction, making it ideal for applications demanding smooth rotation.

In robotics, 7009 ACE/HCP4ADBA Bearing supports articulated arms, providing stability and load capacity for repetitive movements. Its matched arrangement enhances alignment, crucial for maintaining precision in automated systems.

For aerospace components, 7009 ACE/HCP4ADBA Bearing’s phenolic cage and chrome steel rings offer durability under varying temperatures. The extra light preload ensures minimal resistance, perfect for sensitive instrumentation.

In medical imaging devices, 7009 ACE/HCP4ADBA Bearing’s P4A tolerance class guarantees consistent operation. The lubricated design also extends service life, reducing maintenance needs in critical healthcare equipment.

Consumer electronics like high-end printers benefit from 7009 ACE/HCP4ADBA Bearing’s quiet operation. The ceramic balls and phenolic cage work together to minimise noise, enhancing user experience.
