Super Precision Angular Contact Ball Bearings 7009 ACD/P4AQBTC

Super Precision Angular Contact Ball Bearings 7009 ACD/P4AQBTC

The 7009 ACD/P4AQBTC is a super precision angular contact ball bearing with a 45mm bore and 75mm outer diameter, crafted from high-quality chrome steel. It handles radial loads up to 16380 lbf and operates smoothly at speeds up to 41000 RPM.

Its 25° contact angle and matched set of four bearings provide excellent stability for angular loads. The phenolic cage ensures durability while keeping the weight low at 0.94kg.

This bearing is lubricated for long service life and works in temperatures from -30°C to 110°C. Its P4A tolerance class guarantees high precision for demanding applications.

Ideal for machine tools or high-speed spindles where accuracy and reliability are crucial. The open design allows for easy maintenance and inspection.

Interchangeable with SKF bearings, it’s a practical choice for replacements or upgrades. The moderate preload (Class C) ensures consistent performance under varying loads.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 7009 ACD/P4AQBTC
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 45 mm
  • Bore Dia Tolerance -0.004mm to 0
  • Outer Dia 75 mm
  • Outer Dia Tolerance -0.004mm to 0
  • Width 64 mm
  • Width Tolerance -0.2mm to 0
  • Ball Dia 9.525 mm
  • Ball Qty 17
  • Contact Angle 25°
  • Tolerance Class P4A
  • System of Measurement Metric
  • Seal Type Open
  • Matched Arrangement 4 bearings <>>> QBT
  • Number Of Bearings In Matched Set 4
  • Universal Matching Bearing No
  • Preload Moderate / Class C
  • For Load Direction Angular Contact
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Phenolic
  • Dynamic Radial Load 16380 lbf
  • Static Radial Load 19125 lbf
  • Lubrication Lubricated
  • Temperature Range - 30°C to 110 °C
  • Max Speed 41000 rpm
  • Weight 0.94 kg

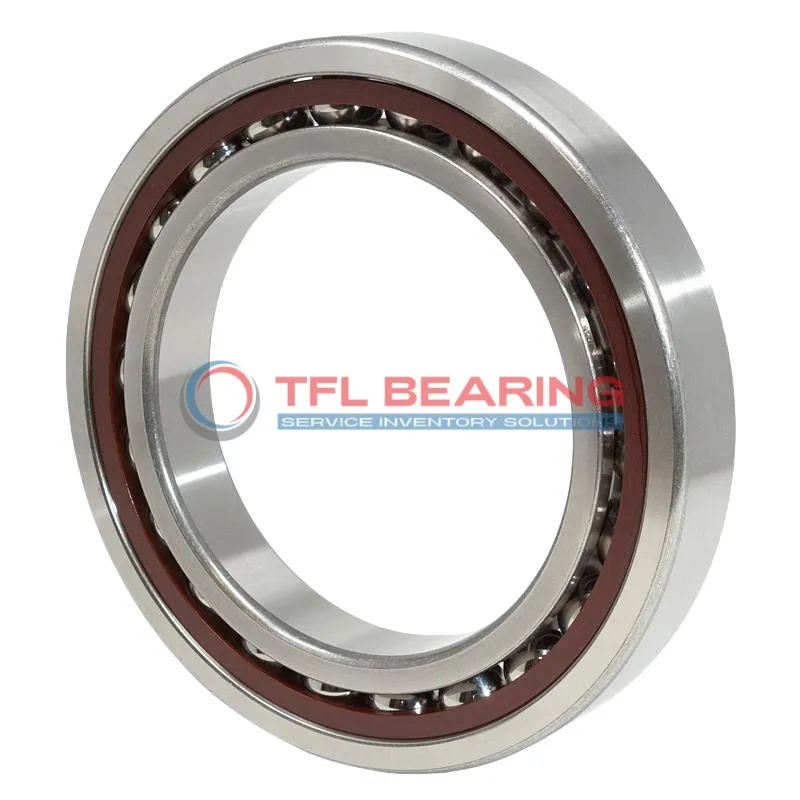

Super Precision Angular Contact Ball Bearings 7009 ACD/P4AQBTC dimension drawing
