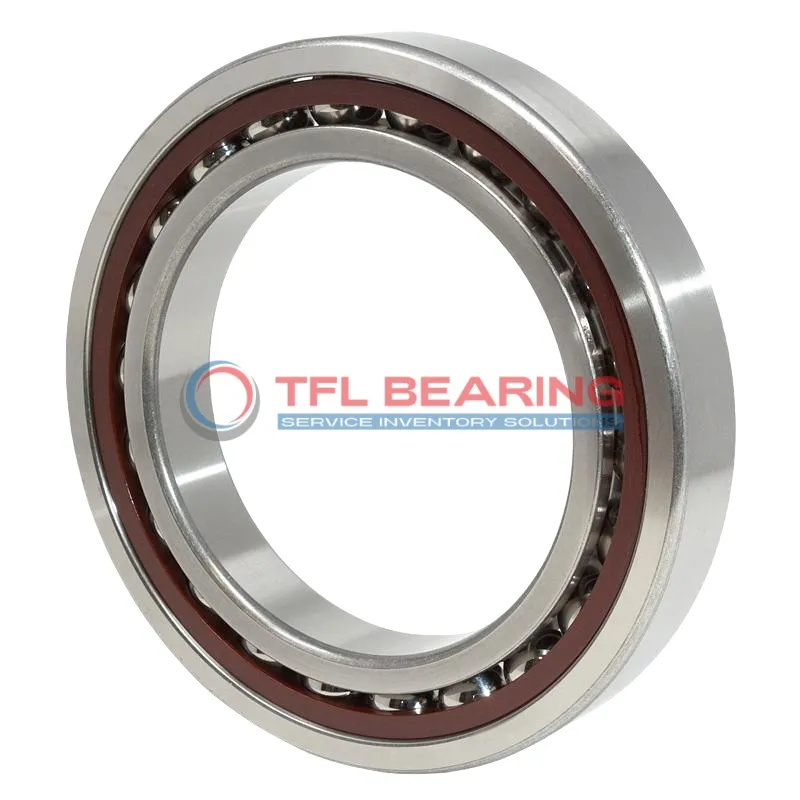

Super Precision Angular Contact Ball Bearings 7009 ACD/P4ADGC

Brand: TFL Bearing Interchangeable: SKF 7009 ACD/P4ADGC 45 mm × 75 mm × 32 mm Metric Open
Part number: 7009 ACD/P4ADGC
Super Precision Angular Contact Ball Bearings 7009 ACD/P4ADGC
In Stock
Price on request
Send your part number and quantity for a quote
Get a Quote WhatsApp
  • ISO 9001 quality system
  • Pre-shipment inspection
  • Lead time confirmed with your quote
Dimensions
Bore Dia45 mm
Bore Dia Tolerance-0.004mm to 0
Outer Dia75 mm
Outer Dia Tolerance-0.004mm to 0
Width32 mm
Width Tolerance-0.2mm to 0
Ball Dia9.525 mm
Performance
PreloadModerate / Class C
Dynamic Radial Load9,945 lbf
Static Radial Load9,675 lbf
Temperature Range- 30°C to 110 °C
Max Speed41,000 rpm
Characteristics
Ball Qty17
Contact Angle25°
Tolerance ClassP4A
System of MeasurementMetric
Seal TypeOpen
Matched ArrangementUniversal matching
Number Of Bearings In Matched Set2
Universal Matching BearingYes, back-to-back (<>), face-to-face (><) or tandem (>>)
For Load DirectionAngular Contact
LubricationLubricated
Weight0.47 kg
Material
Ring MaterialChrome Steel
Ball MaterialChrome Steel
Cage MaterialPhenolic
Dimension drawing · click to enlarge

Description

The 7009 ACD/P4ADGC is a super precision angular contact ball bearing with a 45mm bore and 75mm outer diameter, crafted from durable chrome steel. It handles radial loads up to 9945 lbf and spins smoothly at speeds up to 41,000 RPM.

With a 25° contact angle and universal matching design, it offers flexibility for back-to-back, face-to-face, or tandem arrangements. The phenolic cage ensures quiet operation and long service life.

This bearing is lubricated for easy maintenance and performs well in temperatures from -30°C to 110°C. Its P4A tolerance class guarantees high precision for demanding applications.

Ideal for machine tools, spindles, or high-speed equipment where accuracy and reliability are crucial. Weighing 0.47kg, it’s a robust yet manageable component for precision engineering.

Features

Performance Features of 7009 ACD/P4ADGC Bearing

7009 ACD/P4ADGC Bearing is crafted with chrome steel rings and balls, offering excellent resistance to radial and angular loads.
Its dynamic radial load capacity of 9945 lbf ensures reliable performance in high-speed applications.
The phenolic cage maintains ball alignment, reducing friction and enhancing durability.
With a maximum speed of 41,000 rpm, it delivers precision and efficiency.

How Is 7009 ACD/P4ADGC Bearing Engineered for Reliability?

7009 ACD/P4ADGC Bearing features a 25° contact angle, optimised for handling combined radial and thrust loads.
The universal matching design allows flexible arrangements like back-to-back or face-to-face mounting.
Its P4A tolerance class ensures high precision, making it suitable for demanding applications.
The moderate preload (Class C) enhances stability and reduces vibration.

What Makes 7009 ACD/P4ADGC Bearing Suitable for High-Temperature Applications?

7009 ACD/P4ADGC Bearing operates efficiently in temperatures ranging from -30°C to 110°C.
The chrome steel construction resists thermal deformation, maintaining performance under stress.
Its lubricated design ensures smooth operation even at high speeds.
The phenolic cage withstands heat, contributing to longer service life.

Application

Industrial Uses of 7009 ACD/P4ADGC Bearing
7009 ACD/P4ADGC Bearing is commonly used in high-precision machine tools, where its angular contact design ensures accurate spindle rotation. The moderate preload and universal matching make it adaptable for various industrial setups.

Where Is 7009 ACD/P4ADGC Bearing Used?
You’ll often find 7009 ACD/P4ADGC Bearing in automotive transmissions, where its chrome steel construction handles radial and axial loads efficiently. Its phenolic cage also reduces friction, extending service life in demanding conditions.

Optimized for Performance: 7009 ACD/P4ADGC Bearing
7009 ACD/P4ADGC Bearing excels in robotics, providing smooth motion control for articulated arms and joints. The P4A tolerance class guarantees consistent performance in high-speed applications.

Automotive vs Aerospace: Applications of 7009 ACD/P4ADGC Bearing
In automotive systems, 7009 ACD/P4ADGC Bearing supports gearbox components, while in aerospace, it’s trusted for actuator mechanisms. Its universal matching feature simplifies installation across different platforms.

Practical Applications of 7009 ACD/P4ADGC Bearing
7009 ACD/P4ADGC Bearing is ideal for medical imaging devices, where precision and reliability are critical. The open design allows for easy lubrication, ensuring minimal downtime in clinical environments.
