Super Precision Angular Contact Ball Bearings 7009 ACD/P4ADGA

Super Precision Angular Contact Ball Bearings 7009 ACD/P4ADGA

The 7009 ACD/P4ADGA is a super precision angular contact ball bearing with a 45mm bore and 75mm outer diameter, crafted from high-quality chrome steel. It handles radial loads up to 9945 lbf and operates smoothly at speeds up to 41,000 RPM.

With a 25° contact angle and universal matching design, it offers flexibility for back-to-back, face-to-face, or tandem arrangements. The phenolic cage ensures durability and reduces friction during high-speed rotations.

This bearing is preloaded for extra light performance, making it ideal for precision applications like machine tool spindles or high-speed robotics. It works reliably in temperatures from -30°C to 110°C.

Weighing 0.47kg, it comes as a matched set of two bearings for balanced performance. Compliant with P4A tolerance standards, it’s interchangeable with SKF models for easy replacements.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 7009 ACD/P4ADGA
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 45 mm
  • Bore Dia Tolerance -0.004mm to 0
  • Outer Dia 75 mm
  • Outer Dia Tolerance -0.004mm to 0
  • Width 32 mm
  • Width Tolerance -0.2mm to 0
  • Ball Dia 9.525 mm
  • Ball Qty 17
  • Contact Angle 25°
  • Tolerance Class P4A
  • System of Measurement Metric
  • Seal Type Open
  • Matched Arrangement Universal matching
  • Number Of Bearings In Matched Set 2
  • Universal Matching Bearing Yes, back-to-back (<>), face-to-face (><) or tandem (>>)
  • Preload Extra light / Class A
  • For Load Direction Angular Contact
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Phenolic
  • Dynamic Radial Load 9945 lbf
  • Static Radial Load 9675 lbf
  • Lubrication Lubricated
  • Temperature Range - 30°C to 110 °C
  • Max Speed 41000 rpm
  • Weight 0.47 kg
  • Price（$） 141.948

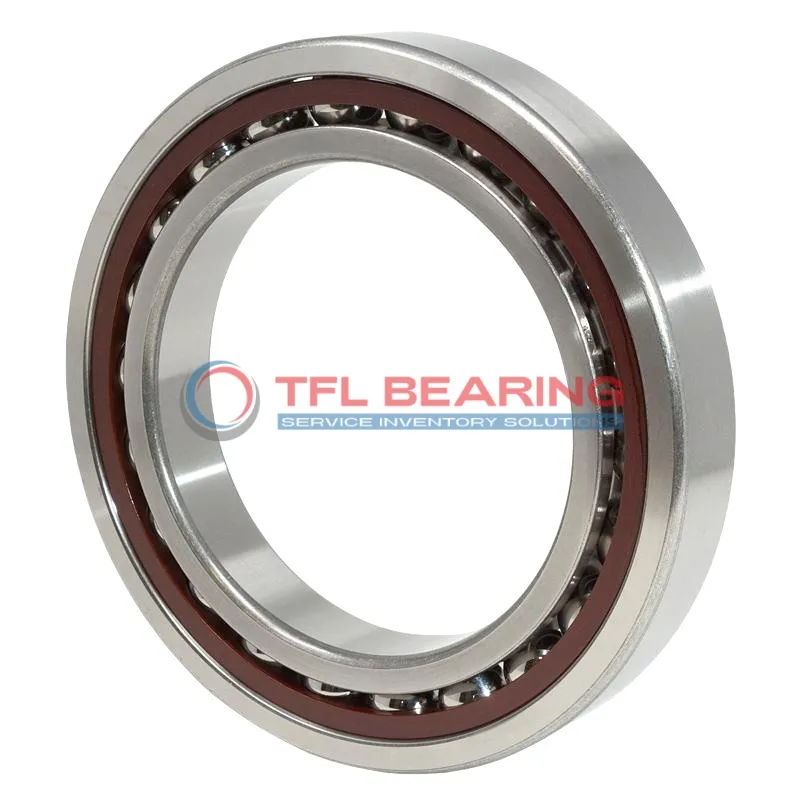

Super Precision Angular Contact Ball Bearings 7009 ACD/P4ADGA dimension drawing
Download DWG Download PDF

Features

Performance Features of 7009 ACD/P4ADGA Bearing

7009 ACD/P4ADGA Bearing is crafted with chrome steel rings and balls, offering high precision and durability.
Its 25° contact angle ensures efficient handling of combined radial and axial loads.

The phenolic cage maintains ball alignment, reducing friction and enhancing performance.
With a dynamic radial load capacity of 9945 lbf, it excels in demanding applications.

7009 ACD/P4ADGA Bearing operates smoothly at speeds up to 41,000 rpm.
Its universal matching design allows flexible arrangements like back-to-back or face-to-face.

The extra light preload ensures minimal friction and optimal efficiency.
Its temperature range of -30°C to 110°C makes it suitable for various environments.

7009 ACD/P4ADGA Bearing’s P4A tolerance class guarantees exceptional precision.
The lubricated design reduces maintenance needs while ensuring consistent performance.

Application

Industrial Uses of 7009 ACD/P4ADGA Bearing
7009 ACD/P4ADGA Bearing is commonly used in high-speed machine tools, where its precision and angular contact design ensure accurate performance. The phenolic cage reduces friction, making it suitable for continuous operation.

In automotive applications, 7009 ACD/P4ADGA Bearing supports gearbox systems, handling both radial and axial loads efficiently. Its universal matching feature allows flexible installation in various configurations.

For robotics, 7009 ACD/P4ADGA Bearing provides smooth motion in robotic arms, thanks to its extra-light preload and high-speed capability. The chrome steel construction ensures durability in demanding environments.

Medical imaging devices benefit from 7009 ACD/P4ADGA Bearing’s low vibration and high precision. The P4A tolerance class guarantees consistent performance in sensitive equipment.

In automation systems, 7009 ACD/P4ADGA Bearing is ideal for spindle drives, where its balanced load distribution enhances reliability. The open design simplifies lubrication and maintenance.
