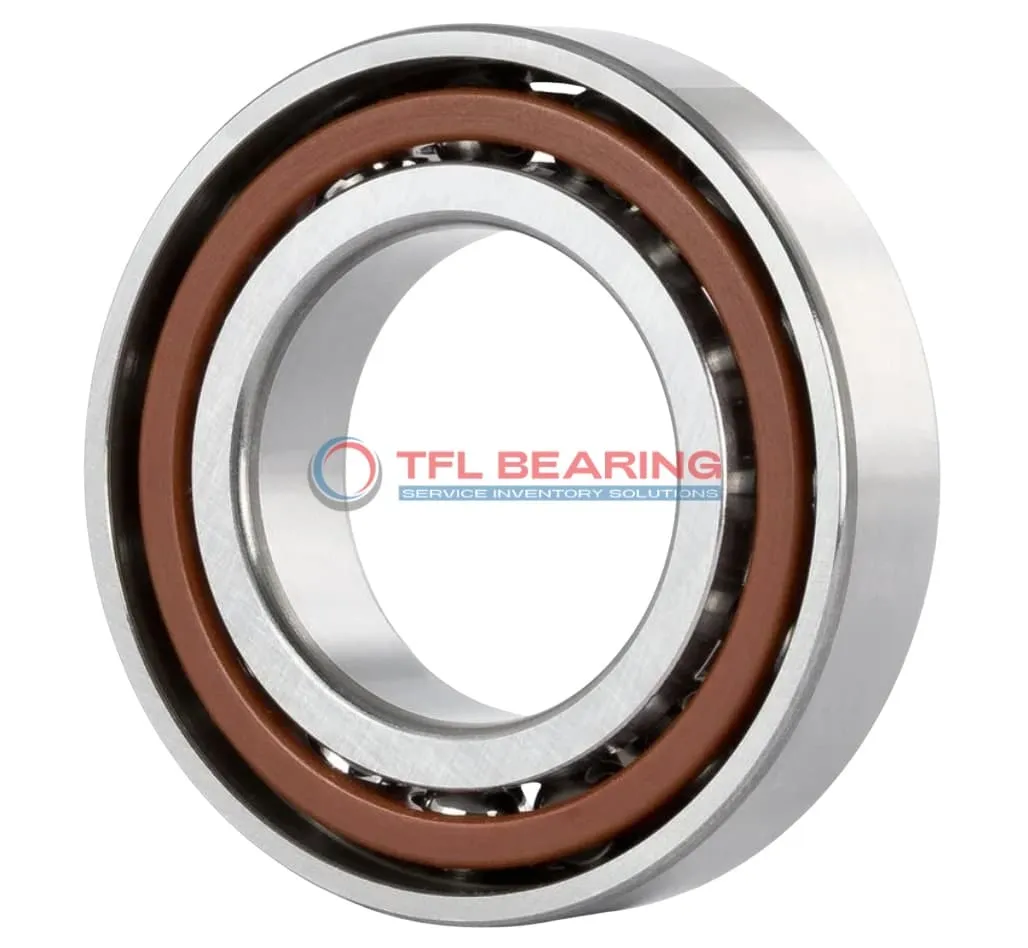

Super Precision Angular Contact Ball Bearings 7006 CE/HCP4ALDT

The 7006 CE/HCP4ALDT is a super precision angular contact ball bearing with a 30mm bore and 55mm outer diameter, crafted from chrome steel for durability. It features a 15° contact angle and comes in a matched set of two bearings for balanced performance.

With a dynamic radial load capacity of 3398 lbf, it spins smoothly at speeds up to 100,500 RPM. The ceramic balls and phenolic cage reduce friction, enhancing efficiency and lifespan.

Its open design allows easy lubrication, while the P4A tolerance class ensures high precision. Ideal for applications like machine tools or high-speed spindles where accuracy is critical.

Weighing just 0.21kg, it’s lightweight yet robust. Suitable for temperatures from -30°C to 110°C, making it versatile for various industrial uses.

Get A Free Quote

Description

Features

Application

Q&A

Product Parameters

Part Number 7006 CE/HCP4ALDT
Brand TFL
Interchangeable SKF
Bore Dia 30 mm
Bore Dia Tolerance -0.004mm to 0
Outer Dia 55 mm
Outer Dia Tolerance -0.004mm to 0
Width 26 mm
Width Tolerance -0.2mm to 0
Ball Dia 6.35 mm
Ball Qty 17
Contact Angle 15°
Tolerance Class P4A
System of Measurement Metric
Seal Type Open
Matched Arrangement 2 bearings << DT
Number Of Bearings In Matched Set 2
Universal Matching Bearing No
Preload Available
For Load Direction Angular Contact
Ring Material Chrome Steel
Ball Material Ceramic
Cage Material Phenolic
Dynamic Radial Load 3398 lbf
Static Radial Load 2340 lbf
Lubrication Lubricated
Temperature Range - 30°C to 110 °C
Max Speed 100500 rpm
Weight 0.21 kg

Super Precision Angular Contact Ball Bearings 7006 CE/HCP4ALDT dimension drawing

Download DWG Download PDF

Features

How Does 7006 CE/HCP4ALDT Bearing Achieve Super Precision?

7006 CE/HCP4ALDT Bearing features a 15° contact angle, optimised for high-precision angular contact applications.
Its ceramic balls and chrome steel rings reduce friction, enhancing performance at speeds up to 100,500 rpm.
The phenolic cage ensures smooth operation, even under dynamic radial loads of 3398 lbf.
With a P4A tolerance class, it delivers consistent accuracy in demanding conditions.

Application

Industrial Uses of 7006 CE/HCP4ALDT Bearing
7006 CE/HCP4ALDT Bearing is commonly used in high-speed machine tools, where its precision angular contact design ensures accurate performance. The ceramic balls reduce friction, making it ideal for applications requiring smooth operation.

In automotive systems, 7006 CE/HCP4ALDT Bearing supports components like electric motors and gearboxes, handling both radial and axial loads efficiently. Its phenolic cage offers durability, even under demanding conditions.

For automation and robotics, 7006 CE/HCP4ALDT Bearing provides reliable performance in mechanical arms and CNC machines. The P4A tolerance class guarantees consistent precision, essential for repetitive tasks.

Medical equipment benefits from 7006 CE/HCP4ALDT Bearing’s low-friction ceramic balls, particularly in imaging devices and surgical tools. The chrome steel rings ensure long-lasting performance in sterile environments.

In consumer electronics, 7006 CE/HCP4ALDT Bearing is found in high-performance printers and scanners, where its quiet operation is a key advantage. The matched bearing arrangement enhances stability for precise movements.
