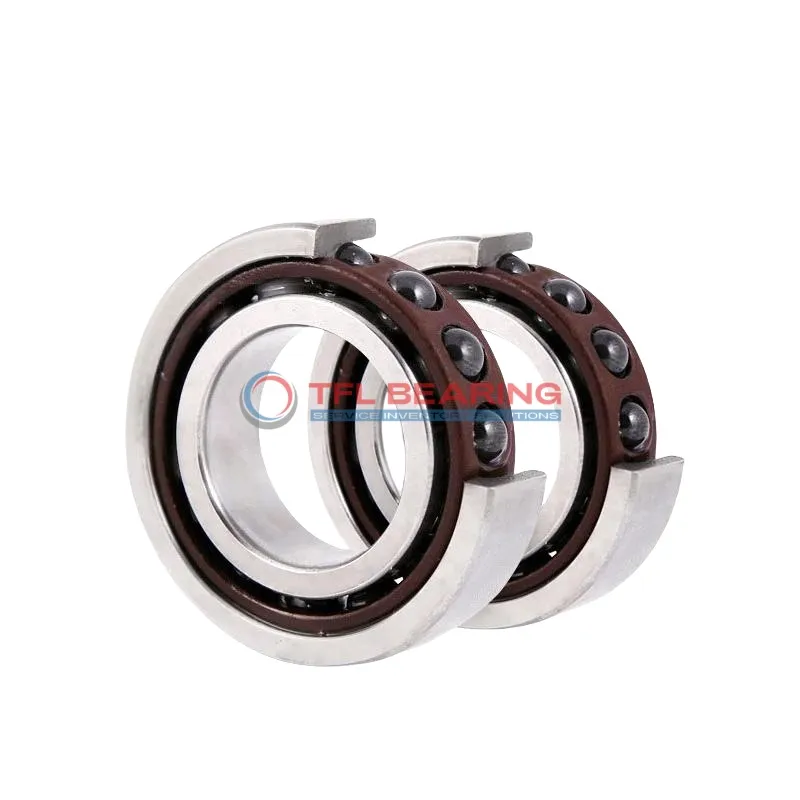

Super Precision Angular Contact Ball Bearings 7006 ACD/HCP4AQBCA

Brand: TFL Bearing Interchangeable: SKF 7006 ACD/HCP4AQBCA 30 mm × 55 mm × 52 mm Metric Open
Part number: 7006 ACD/HCP4AQBCA
Super Precision Angular Contact Ball Bearings 7006 ACD/HCP4AQBCA
In Stock
Price on request
Send your part number and quantity for a quote
Get a Quote WhatsApp
  • ISO 9001 quality system
  • Pre-shipment inspection
  • Lead time confirmed with your quote
Dimensions
Bore Dia30 mm
Bore Dia Tolerance-0.004mm to 0
Outer Dia55 mm
Outer Dia Tolerance-0.004mm to 0
Width52 mm
Width Tolerance-0.2mm to 0
Ball Dia7.938 mm
Performance
PreloadExtra light / Class A
Dynamic Radial Load8,190 lbf
Static Radial Load6,862 lbf
Temperature Range- 30°C to 110 °C
Max Speed53,000 rpm
Characteristics
Ball Qty14
Contact Angle25°
Tolerance ClassP4A
System of MeasurementMetric
Seal TypeOpen
Matched Arrangement4 bearings <<>> QBC
Number Of Bearings In Matched Set4
Universal Matching BearingNo
For Load DirectionAngular Contact
LubricationLubricated
Weight0.38 kg
Material
Ring MaterialChrome Steel
Ball MaterialCeramic
Cage MaterialPhenolic
Dimension drawing · click to enlarge

Description

The 7006 ACD/HCP4AQBCA is a super precision angular contact ball bearing with a 30mm bore and 55mm outer diameter, crafted from durable chrome steel and ceramic balls. It handles radial loads up to 8190 lbf and spins smoothly at speeds up to 53,000 RPM.

Its phenolic cage and open design ensure low friction and easy maintenance, while the 25° contact angle provides excellent stability. The bearing operates reliably in temperatures from -30°C to 110°C.

This set includes four matched bearings with extra light preload, ideal for high-precision applications like machine tool spindles or robotics. The P4A tolerance class guarantees consistent performance.

Weighing just 0.38kg, it’s a lightweight yet robust solution for demanding environments. Compatible with SKF bearings for easy replacements.

Features

Performance Features of 7006 ACD/HCP4AQBCA Bearing

7006 ACD/HCP4AQBCA Bearing is designed with a 25° contact angle, optimising load distribution for angular contact applications.
Its chrome steel rings and ceramic balls enhance durability while reducing friction.

The phenolic cage ensures smooth operation, even at high speeds up to 53,000 rpm.
This bearing set includes four matched units, providing consistent performance in precision tasks.

7006 ACD/HCP4AQBCA Bearing handles dynamic radial loads up to 8190 lbf, making it suitable for demanding environments.
Its extra light preload (Class A) ensures minimal resistance and efficient operation.

The open design allows easy lubrication, maintaining performance across a temperature range of -30°C to 110°C.
With a P4A tolerance class, it delivers exceptional accuracy for precision machinery.

Application

Essential Roles of 7006 ACD/HCP4AQBCA Bearing
7006 ACD/HCP4AQBCA Bearing is widely used in high-speed machine tools, where its ceramic balls and phenolic cage reduce friction for smoother operation. The 25° contact angle ensures excellent load distribution in precision applications.

How Does 7006 ACD/HCP4AQBCA Bearing Improve Performance?
In automotive transmissions, 7006 ACD/HCP4AQBCA Bearing handles angular loads efficiently, thanks to its matched set design. The extra-light preload enhances responsiveness, making it ideal for performance vehicles.

Built for Heavy-Duty Use: 7006 ACD/HCP4AQBCA Bearing
This bearing excels in industrial robots, where its P4A tolerance class ensures consistent accuracy. The chrome steel rings and ceramic balls provide durability in demanding environments.

Medical vs Industrial: Where 7006 ACD/HCP4AQBCA Bearing Excels
In medical imaging devices, 7006 ACD/HCP4AQBCA Bearing offers quiet operation and reliability. For industrial automation, its high-speed capability and matched arrangement boost efficiency.

Perfect Fit for Automation: 7006 ACD/HCP4AQBCA Bearing
7006 ACD/HCP4AQBCA Bearing is a go-to choice for CNC machinery, where precision and speed are critical. The lubricated design ensures long service life with minimal maintenance.
