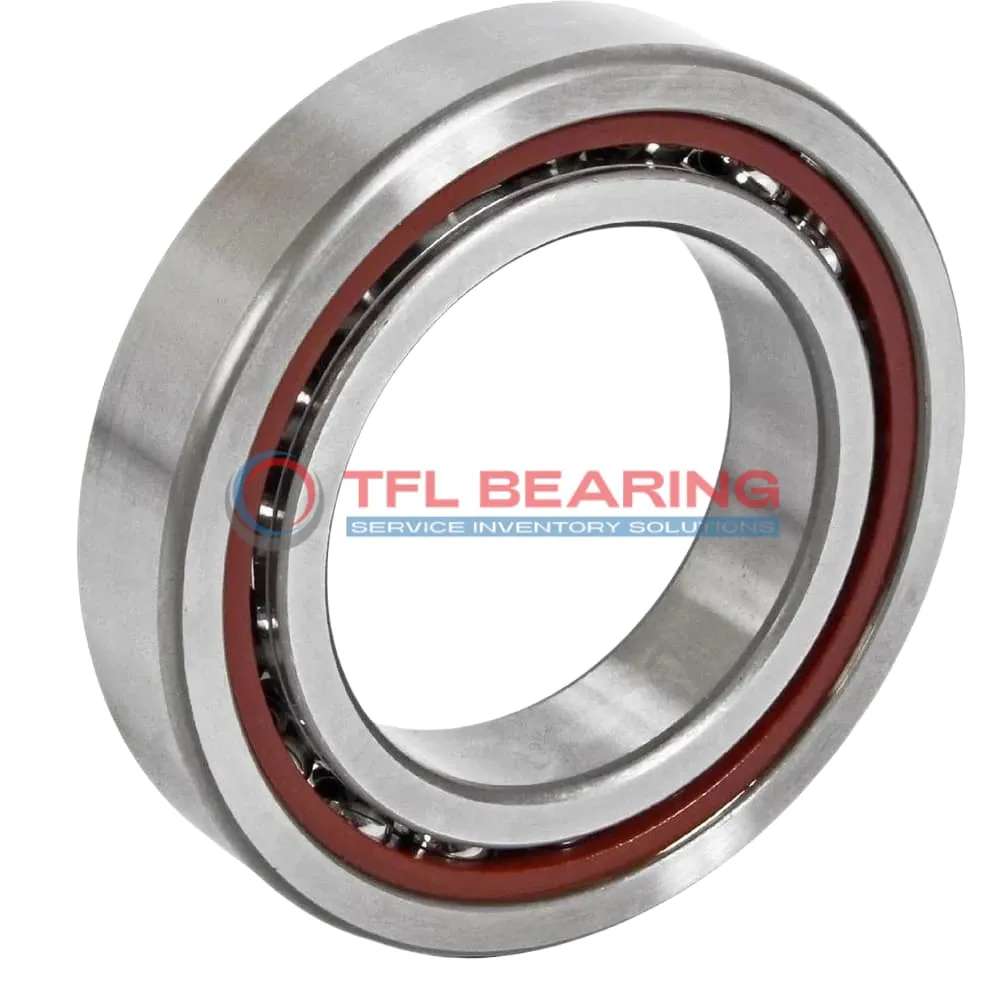

Super Precision Angular Contact Ball Bearings 7000 CE/P4ADT

Super Precision Angular Contact Ball Bearings 7000 CE/P4ADT

The 7000 CE/P4ADT is a super precision angular contact ball bearing with a 10mm bore and 26mm outer diameter, crafted from durable chrome steel. It handles radial loads up to 1098 lbf and reaches speeds of 185,000 RPM.

Its 15° contact angle and matched arrangement (two bearings) provide stability for high-precision applications. The open design and phenolic cage ensure smooth operation and easy maintenance.

This bearing is ideal for machine tools or spindle drives where accuracy is key. It operates in temperatures from -30°C to 110°C and comes pre-lubricated for immediate use.

Weighing just 0.038kg, it’s lightweight yet robust. Compliant with P4A tolerance standards, it’s interchangeable with SKF models for easy replacement.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 7000 CE/P4ADT
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 10 mm
  • Bore Dia Tolerance -0.004mm to 0
  • Outer Dia 26 mm
  • Outer Dia Tolerance -0.004mm to 0
  • Width 16 mm
  • Width Tolerance -0.2mm to 0
  • Ball Dia 3.969 mm
  • Ball Qty 11
  • Contact Angle 15°
  • Tolerance Class P4A
  • System of Measurement Metric
  • Seal Type Open
  • Matched Arrangement 2 bearings << DT
  • Number Of Bearings In Matched Set 2
  • Universal Matching Bearing No
  • Preload Available
  • For Load Direction Angular Contact
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Phenolic
  • Dynamic Radial Load 1098 lbf
  • Static Radial Load 531 lbf
  • Lubrication Lubricated
  • Temperature Range - 30°C to 110 °C
  • Max Speed 185000 rpm
  • Weight 0.038 kg
Super Precision Angular Contact Ball Bearings 7000 CE/P4ADT dimension drawing
Download DWG Download PDF

Features

Performance Features of 7000 CE/P4ADT Bearing

7000 CE/P4ADT Bearing is designed with a 15° contact angle, optimising load distribution for angular contact applications.
Its chrome steel rings and balls ensure durability, while the phenolic cage reduces friction and noise.

The matched arrangement of two bearings enhances stability and performance in high-speed operations.
With a maximum speed of 185,000 rpm, it delivers reliable precision under demanding conditions.

7000 CE/P4ADT Bearing’s P4A tolerance class guarantees consistent accuracy for precision tasks.
The preload availability further improves rigidity, making it suitable for high-performance machinery.

Lubrication is already applied, simplifying installation and ensuring smooth operation from the start.
Its compact size (10 mm×26 mm×16 mm) makes it ideal for applications where space is limited.

Application

Key Fields for 7000 CE/P4ADT Bearing
7000 CE/P4ADT Bearing is commonly used in high-precision machine tools, where its angular contact design ensures accurate spindle rotation. The matched arrangement of two bearings provides stability in demanding industrial environments.

In automotive applications, 7000 CE/P4ADT Bearing supports components like electric motors and gearboxes, offering reliable performance under angular loads. Its phenolic cage reduces friction, enhancing efficiency in high-speed scenarios.

For medical imaging devices, 7000 CE/P4ADT Bearing’s chrome steel construction ensures smooth operation in sensitive equipment. The P4A tolerance class guarantees the precision needed for consistent diagnostic results.

Automation systems benefit from 7000 CE/P4ADT Bearing’s ability to handle high rotational speeds in robotic arms. The open design allows for easy lubrication, extending service life in continuous operation.

In consumer electronics, 7000 CE/P4ADT Bearing is ideal for precision components like 3D printers. Its lightweight design and high-speed capability make it a practical choice for compact devices.
