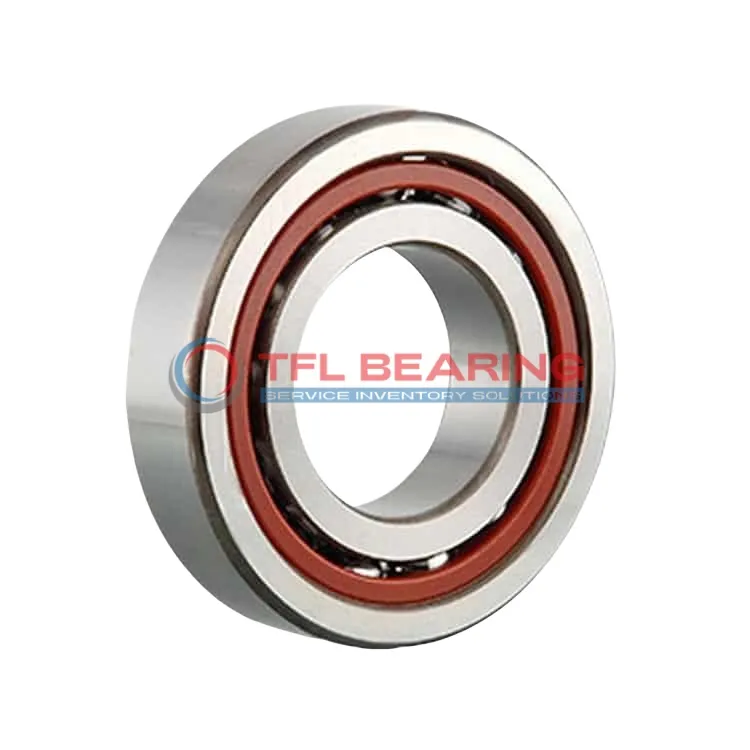

Super Precision Angular Contact Ball Bearings 7000 ACDGB/P4A

Brand: TFL Bearing Interchangeable: SKF 7000 ACDGB/P4A 10 mm × 26 mm × 8 mm Metric Open
Part number: 7000 ACDGB/P4A
Super Precision Angular Contact Ball Bearings 7000 ACDGB/P4A
In Stock
Price on request
Send your part number and quantity for a quote
Get a Quote WhatsApp
  • ISO 9001 quality system
  • Pre-shipment inspection
  • Lead time confirmed with your quote
Dimensions
Bore Dia10 mm
Bore Dia Tolerance-0.004mm to 0
Outer Dia26 mm
Outer Dia Tolerance-0.004mm to 0
Width8 mm
Width Tolerance-0.2mm to 0
Ball Dia4.762 mm
Performance
PreloadLight / Class B
Dynamic Radial Load893 lbf
Static Radial Load360 lbf
Temperature Range- 30°C to 110 °C
Max Speed185,000 rpm
Characteristics
Ball Qty9
Contact Angle25°
Tolerance ClassP4A
System of MeasurementMetric
Seal TypeOpen
Matched ArrangementNo
Number Of Bearings In Matched Set2
Universal Matching BearingYes, back-to-back (<>), face-to-face (><) or tandem (>>)
For Load DirectionAngular Contact
LubricationLubricated
Weight0.019 kg
Material
Ring MaterialChrome Steel
Ball MaterialChrome Steel
Cage MaterialPhenolic
Dimension drawing · click to enlarge

Description

The 7000 ACDGB/P4A is a super precision angular contact ball bearing with a 10mm bore and 26mm outer diameter, crafted from chrome steel for durability. It handles radial loads up to 893 lbf and spins smoothly at speeds up to 185,000 RPM.

Its 25° contact angle and phenolic cage ensure stable performance under light preload conditions. The open design allows easy lubrication, making maintenance straightforward.

This bearing is ideal for high-precision applications like machine tools or spindle drives, where accuracy is key. It can be paired in back-to-back, face-to-face, or tandem arrangements for versatile use.

Weighing just 0.019kg, it’s lightweight yet robust. Compliant with P4A tolerance standards, it’s a reliable choice for demanding environments. Interchangeable with SKF bearings for easy replacements.

Features

Performance Features of 7000 ACDGB/P4A Bearing

7000 ACDGB/P4A Bearing is crafted with a 25° contact angle, ideal for handling combined radial and axial loads.
Its chrome steel rings and balls ensure durability, while the phenolic cage reduces friction for smoother operation.
With a dynamic radial load capacity of 893 lbf, it performs reliably in high-speed applications.
The P4A tolerance class guarantees precision, making it suitable for demanding tasks.

How Is 7000 ACDGB/P4A Bearing Engineered for Reliability?

7000 ACDGB/P4A Bearing features a lightweight phenolic cage, enhancing its high-speed performance up to 185,000 rpm.
The chrome steel construction provides excellent resistance to wear, ensuring long-term reliability.
Its open design allows for easy lubrication, maintaining optimal performance.
The precise P4A tolerance ensures consistent operation in precision applications.

Designed for Durability: 7000 ACDGB/P4A Bearing

7000 ACDGB/P4A Bearing’s chrome steel components offer robust performance under dynamic radial loads up to 893 lbf.
The phenolic cage minimises friction, contributing to quieter and smoother operation.
Its temperature range of -30°C to 110°C ensures versatility in various environments.
The light preload (Class B) enhances stability, making it suitable for precision machinery.

Steel vs Ceramic Bearings: Strengths of 7000 ACDGB/P4A Bearing

7000 ACDGB/P4A Bearing uses high-quality chrome steel for both rings and balls, balancing cost and performance.
This material choice ensures excellent load capacity and durability compared to ceramic alternatives.
The phenolic cage further reduces friction, improving efficiency.
With a maximum speed of 185,000 rpm, it excels in high-speed applications where reliability is key.

Application

Industrial Uses of 7000 ACDGB/P4A Bearing
7000 ACDGB/P4A Bearing is commonly used in high-speed machine tools, where its precision and angular contact design ensure accurate performance. The light preload makes it suitable for applications requiring minimal friction.

In automotive systems, 7000 ACDGB/P4A Bearing supports components like electric motors and transmissions, thanks to its durable chrome steel construction. Its metric sizing ensures compatibility with a variety of vehicle models.

For automation equipment, 7000 ACDGB/P4A Bearing excels in robotic arms and CNC machines, where smooth operation is essential. The phenolic cage adds durability, making it reliable for continuous use.

Medical devices like imaging systems benefit from 7000 ACDGB/P4A Bearing’s precision and low friction. The open design allows for easy maintenance, ensuring long-term performance in critical applications.

In consumer electronics, 7000 ACDGB/P4A Bearing is found in high-performance fans and printers, where its compact size and reliability are key. The lubricated design helps maintain smooth operation over time.
