Standard Flanged Ball Bearings SF6902ZZ

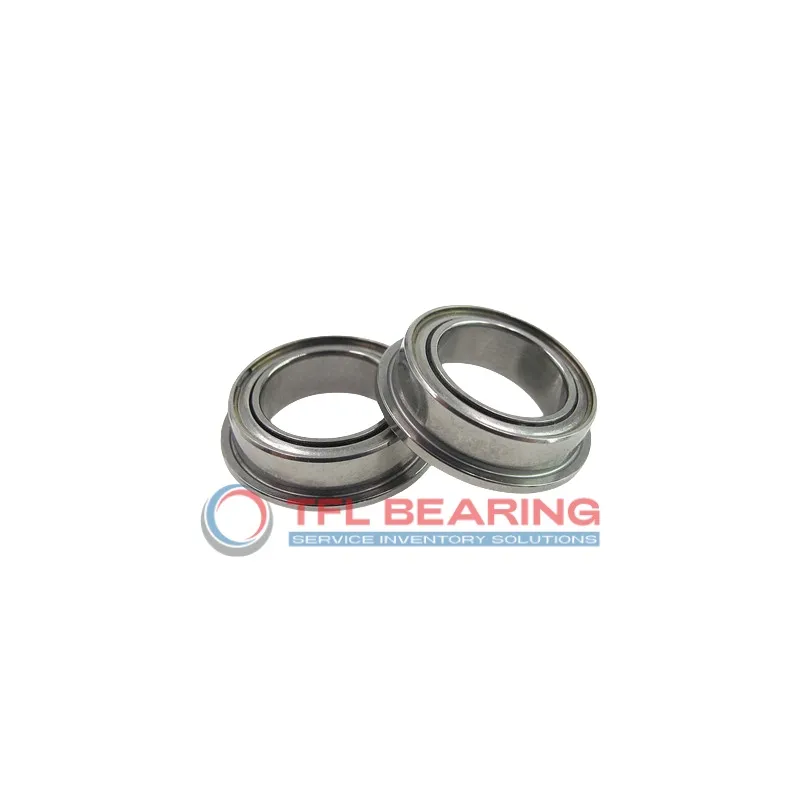

Standard Flanged Ball Bearings SF6902ZZ

The SF6902ZZ is a compact flanged ball bearing with a 15mm bore and 28mm outer diameter, measuring just 7mm in width. Its stainless steel construction offers good corrosion resistance, while the chrome steel balls ensure smooth rotation.

The bearing handles radial loads up to 876 lbf and can spin at speeds up to 21,600 RPM. The shielded design helps keep contaminants out while maintaining easy access for lubrication.

With its 30.5mm flange, this bearing stays securely positioned in assemblies. It’s suitable for temperatures from -30°C to 110°C and comes with ABEC-1 precision tolerances.

Ideal for small machinery or electrical motors where space is limited. The lightweight design (17.3g) makes it easy to handle during installation or maintenance. Compliant with RoHS and REACH standards.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number SF6902ZZ
  • Brand TFL
  • Bore Dia 15 mm
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 28 mm
  • Outer Dia Tolerance -0.009mm to 0
  • Width 7 mm
  • Width Tolerance -0.12mm to 0
  • Flange Outer Dia 30.5 mm
  • Flange Thickness 1.5 mm
  • Ball Qty 10
  • Ball Dia 3.969 mm
  • Radial Clearance 0.002mm to 0.013mm
  • Tolerance Class ABEC-1
  • Radial Clearance Trade No C0
  • System of Measurement Metric
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Single Row
  • Inner Ring Type Standard
  • Seal Type Shielded
  • Ring Material Stainless Steel
  • Ball Material Chrome Steel
  • Cage Material Stainless Steel
  • Shield Material 300 Series Stainless Steel
  • Dynamic Radial Load 876 lbf
  • Static Radial Load 455 lbf
  • Lubrication Required
  • Temperature Range -30° to 110°C
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 21600 rpm
  • Weight 17.3 g
  • Price（$） 7.22
Standard Flanged Ball Bearings SF6902ZZ dimension drawing
Download DWG Download PDF

Features

How Does SF6902ZZ Bearing Reduce Friction?

SF6902ZZ Bearing features stainless steel rings and a chrome steel ball set, ensuring smooth operation with minimal friction.
The shielded design helps keep contaminants out, maintaining consistent performance over time.

With a dynamic radial load capacity of 876 lbf, it handles moderate loads efficiently.
Its high-speed capability of 21,600 rpm makes it suitable for fast-moving applications.

The stainless steel cage ensures stability, reducing wear and extending bearing life.
Precision engineering keeps noise levels low, ideal for quiet operations.

Application

Industrial Uses of SF6902ZZ Bearing
SF6902ZZ Bearing is commonly used in small industrial equipment like conveyor rollers and packaging machines, where its shielded design keeps out dust and debris. The stainless steel construction ensures it can handle frequent use without significant wear.

Where Is SF6902ZZ Bearing Used?
You’ll often find SF6902ZZ Bearing in automotive applications such as electric window mechanisms or small gearboxes, thanks to its compact size and reliable radial load capacity. The flange design also makes it easier to install in tight spaces.

Perfect Fit for Automation: SF6902ZZ Bearing
SF6902ZZ Bearing works well in robotic arms and 3D printers, where precision and smooth movement are key. Its ABEC-1 tolerance ensures consistent performance in these high-precision environments.

Light-Duty vs Heavy-Duty: Best Uses for SF6902ZZ Bearing
For light-duty tasks like office printers or small fans, SF6902ZZ Bearing offers quiet and efficient operation. In more demanding settings, its dynamic load capacity ensures it can handle moderate stress without issues.
