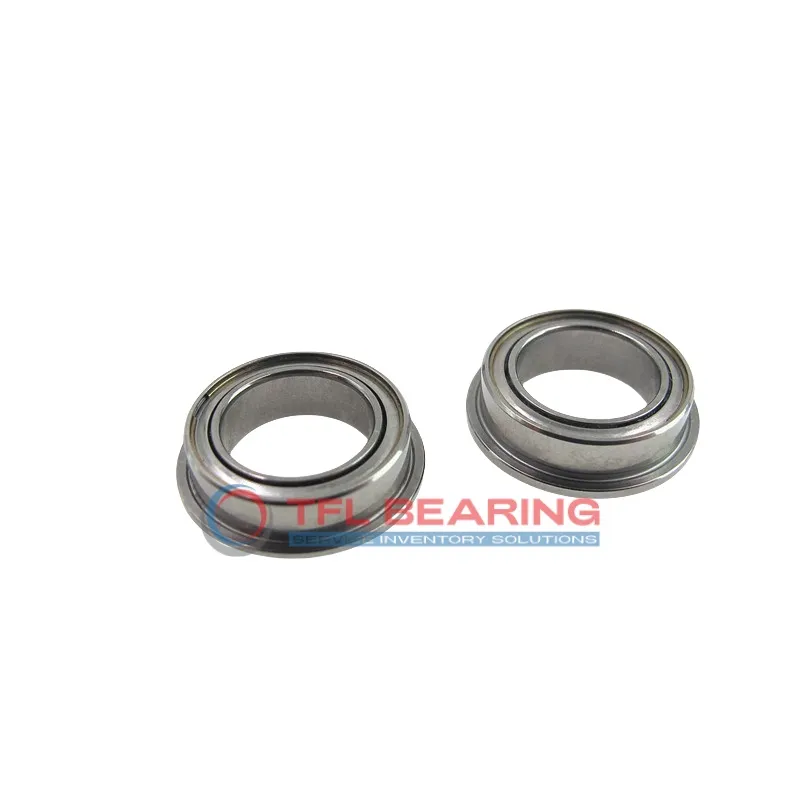

Standard Flanged Ball Bearings SF6703ZZ

Standard Flanged Ball Bearings SF6703ZZ

The SF6703ZZ is a compact flanged ball bearing measuring 17mm by 23mm, with a slim 4mm width. Made from stainless steel and chrome steel, it offers good resistance to wear and corrosion.

It handles radial loads up to 202 lbf and spins smoothly at speeds up to 8550 RPM. The shielded design helps keep dirt out while maintaining easy access for lubrication.

The flange provides secure mounting, preventing slippage in tight spaces. With a temperature range of -30°C to 110°C, it suits various environments.

Ideal for small machinery, printers, or medical devices where space is limited. Compliant with RoHS and REACH standards, it’s a reliable choice for precision applications.

Weighing just 4.1 grams, it’s lightweight yet durable for its size. The ABEC-1 tolerance ensures consistent performance in everyday use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number SF6703ZZ
  • Brand TFL
  • Bore Dia 17 mm
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 23 mm
  • Outer Dia Tolerance -0.009mm to 0
  • Width 4 mm
  • Width Tolerance -0.12mm to 0
  • Flange Outer Dia 24.5 mm
  • Flange Thickness 0.8 mm
  • Ball Qty 16
  • Ball Dia 1.588 mm
  • Radial Clearance 0.002mm to 0.013mm
  • Tolerance Class ABEC-1
  • Radial Clearance Trade No C0
  • System of Measurement Metric
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Single Row
  • Inner Ring Type Standard
  • Seal Type Shielded
  • Ring Material Stainless Steel
  • Ball Material Chrome Steel
  • Cage Material Stainless Steel
  • Shield Material 300 Series Stainless Steel
  • Dynamic Radial Load 202 lbf
  • Static Radial Load 133 lbf
  • Lubrication Required
  • Temperature Range -30° to 110°C
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 8550 rpm
  • Weight 4.10 g
  • Price（$） 8.34
Standard Flanged Ball Bearings SF6703ZZ dimension drawing
Download DWG Download PDF

Features

How Does SF6703ZZ Bearing Reduce Friction?

SF6703ZZ Bearing features stainless steel rings and a shielded design, ensuring smooth operation with minimal friction.
The chrome steel balls and stainless steel cage work together to reduce wear, enhancing efficiency.

With a dynamic radial load capacity of 202 lbf, SF6703ZZ Bearing handles moderate loads reliably.
Its ABEC-1 tolerance class ensures consistent performance in precision applications.

The shielded design protects against contaminants, extending the bearing’s service life.
SF6703ZZ Bearing operates efficiently within a temperature range of -30° to 110°C.

Application

Common Applications of SF6703ZZ Bearing
In small industrial equipment like compact pumps and gear motors, SF6703ZZ Bearing offers reliable radial load support. Its shielded design helps keep contaminants out, extending service life in dusty environments.

Where Is SF6703ZZ Bearing Used?
You’ll often spot SF6703ZZ Bearing in automotive accessories like window regulators or wiper mechanisms. The stainless steel construction resists corrosion, making it suitable for exposed components.

Perfect Fit for Automation: SF6703ZZ Bearing
For lightweight robotic joints or precision slides, SF6703ZZ Bearing provides smooth motion with minimal maintenance. The flanged design simplifies alignment during assembly.

Medical vs Industrial: Where SF6703ZZ Bearing Excels
In medical devices like dental handpieces, SF6703ZZ Bearing’s compact size and shielded design meet hygiene requirements. Industrial uses include small conveyor guides where space is limited.

How Does SF6703ZZ Bearing Support High-Speed Operations?
With a max speed of 8,550 rpm, SF6703ZZ Bearing works well in small cooling fans and spindle applications. The C0 clearance offers stable performance across various temperatures.
