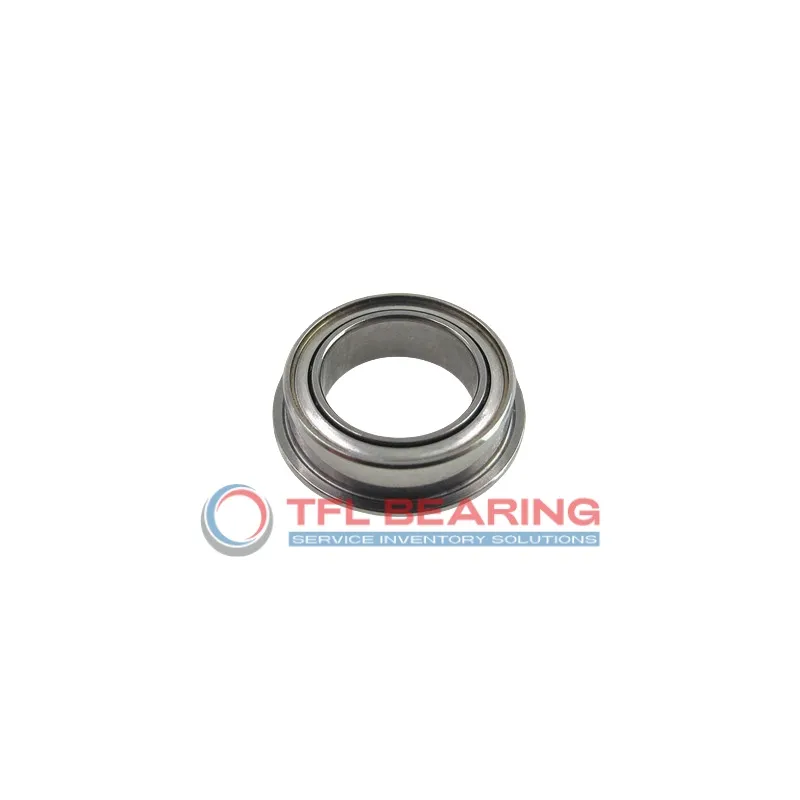

Standard Flanged Ball Bearings F6200ZZ

The F6200ZZ is a compact flanged ball bearing with a 10mm bore and 30mm outer diameter, measuring just 9mm wide. Its chrome steel construction ensures durability, while the stainless steel cage adds strength.

This shielded bearing handles radial loads up to 1150 lbf and spins smoothly at speeds up to 30,000 RPM. The flange provides extra stability, making it easier to mount securely in tight spaces.

Pre-lubricated with grease, it operates well in temperatures from -30°C to 120°C. The P6 tolerance class ensures reliable performance for precision applications.

Ideal for small machinery, electric motors, or devices where space is limited. Weighing only 0.034kg, it’s lightweight yet robust for its size. Compliant with RoHS and REACH standards.

Get A Free Quote

Description

Features

Application

Q&A

Product Parameters

Part Number F6200ZZ
Brand TFL
Bore Dia 10 mm
Bore Dia Tolerance -0.007mm to 0
Outer Dia 30 mm
Outer Dia Tolerance -0.008mm to 0
Width 9 mm
Width Tolerance -0.12mm to 0
Flange Outer Dia 32.25 mm
Flange Thickness 2.25 mm
Tolerance Class P6
Radial Clearance Trade No CN
System of Measurement Metric
Bearing Type Ball
For Load Direction Radial
Construction Single Row
Seal Type Shielded
Ring Material Chrome Steel
Ball Material Chrome Steel
Cage Material Stainless Steel
Dynamic Radial Load 1150 lbf
Static Radial Load 538 lbf
Lubrication Grease
Temperature Range -30° to 120 °C
RoHS Compliant
REACH Compliant
Max Speed 30000 rpm
Weight 0.034 kg
Price（$） 1.8

Standard Flanged Ball Bearings F6200ZZ dimension drawing

Download DWG Download PDF

Features

Performance Features of F6200ZZ Bearing

F6200ZZ Bearing is crafted with chrome steel rings and balls, offering reliable radial load support.
Its shielded design helps keep contaminants out, ensuring smoother operation over time.
The stainless steel cage maintains ball alignment, reducing friction and wear.
With a maximum speed of 30,000 rpm, it delivers efficient performance in various applications.

Application

Common Applications of F6200ZZ Bearing
F6200ZZ Bearing is widely used in small electric motors, where its shielded design keeps dust out and extends service life. The compact 10mm bore fits neatly into tight spaces without compromising performance.

In household appliances like blenders and mixers, F6200ZZ Bearing ensures smooth rotation thanks to its chrome steel construction. The flange provides extra stability, preventing misalignment during high-speed operation.

For office equipment such as printers and scanners, F6200ZZ Bearing’s grease lubrication reduces noise and maintenance needs. Its P6 tolerance class guarantees consistent precision in repetitive tasks.

Automotive accessories like cooling fans often rely on F6200ZZ Bearing for reliable radial load support. The stainless steel cage handles temperature fluctuations well, making it suitable under the bonnet.

In DIY power tools, F6200ZZ Bearing’s 30,000 rpm rating delivers dependable performance for drills and sanders. The metric sizing ensures easy replacement across various European and Asian brands.
