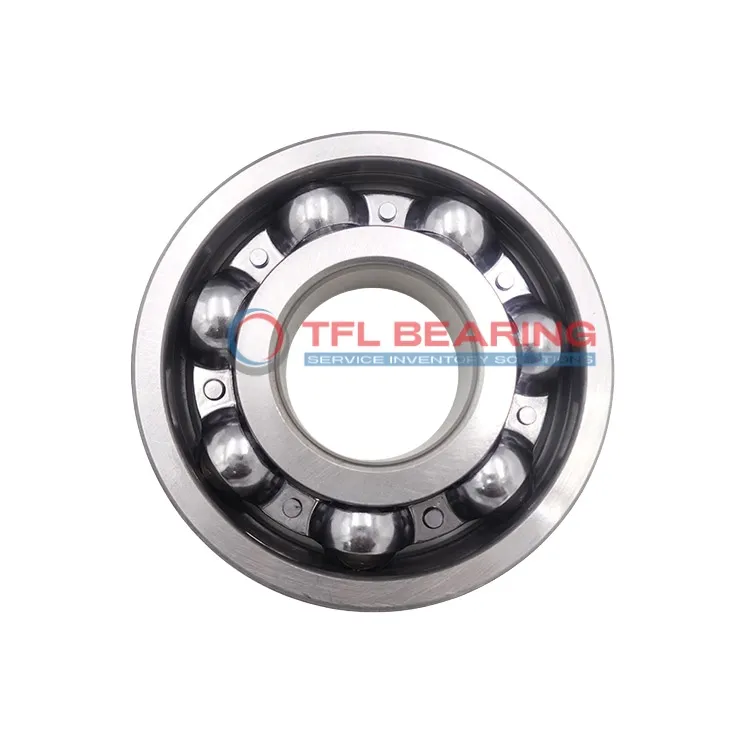

Stainless Steel Deep Groove Ball Bearings WBB1-8705

Stainless Steel Deep Groove Ball Bearings WBB1-8705

The WBB1-8705 is a compact stainless steel deep groove ball bearing, measuring 5mm by 10mm by 3mm. It handles radial loads up to 56 lbf and spins at speeds up to 85,000 RPM, making it suitable for high-speed applications.

Its open design allows for easy lubrication, while the all-stainless steel construction ensures corrosion resistance. The bearing operates smoothly in temperatures ranging from -30°C to 120°C.

This model is interchangeable with SKF bearings, offering a reliable replacement option. Ideal for small machinery or precision instruments where space is limited.

Weighing just 0.0009kg, it’s lightweight yet durable. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number WBB1-8705
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 5 mm
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 10 mm
  • Outer Dia Tolerance -0.008mm to 0
  • Width 3 mm
  • Width Tolerance -0.12mm to 0
  • System of Measurement Metric
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Open
  • Tolerance Class P0
  • Radial Clearance Trade No CN
  • Ring Material Stainless Steel
  • Ball Material Stainless Steel
  • Cage Material Stainless Steel
  • Dynamic Radial Load 56 lbf
  • Static Radial Load 19 lbf
  • Temperature Range -30° to 120 °C
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 85000 rpm
  • Weight 0.0009 kg
Stainless Steel Deep Groove Ball Bearings WBB1-8705 dimension drawing
Download DWG Download PDF

Features

Why Choose WBB1-8705 Bearing for Precision Tasks?

WBB1-8705 Bearing is crafted from stainless steel, offering excellent resistance to corrosion and wear.

Its compact size of 5 mm×10 mm×3 mm makes it ideal for applications where space is limited.

The single-row design ensures smooth radial load handling, with a dynamic radial load capacity of 56 lbf.

With a maximum speed of 85,000 rpm, it delivers reliable performance in high-speed environments.

Application

Common Applications of WBB1-8705 Bearing
WBB1-8705 Bearing is commonly used in small industrial equipment, such as miniature motors and precision instruments, where its compact size and stainless steel construction are beneficial. The open design allows for easy lubrication and maintenance in tight spaces.

How Does WBB1-8705 Bearing Improve Performance?
In consumer electronics like small fans and printers, WBB1-8705 Bearing ensures smooth rotation with minimal noise. Its high-speed capability makes it suitable for devices requiring consistent, long-term operation.

Ideal for Precision: WBB1-8705 Bearing
WBB1-8705 Bearing is a great fit for medical devices, such as dental tools or lab equipment, where hygiene and corrosion resistance are key. The stainless steel materials provide durability in sterile environments.

Automotive vs Aerospace: Applications of WBB1-8705 Bearing
In automotive applications, WBB1-8705 Bearing can be found in small actuators or sensors due to its reliability. For aerospace, its lightweight design is useful in compact instrumentation systems.

Where Is WBB1-8705 Bearing Used?
WBB1-8705 Bearing works well in automation systems, particularly in robotic arms or 3D printers, where precision and low friction are essential. Its metric sizing ensures compatibility with various international components.
