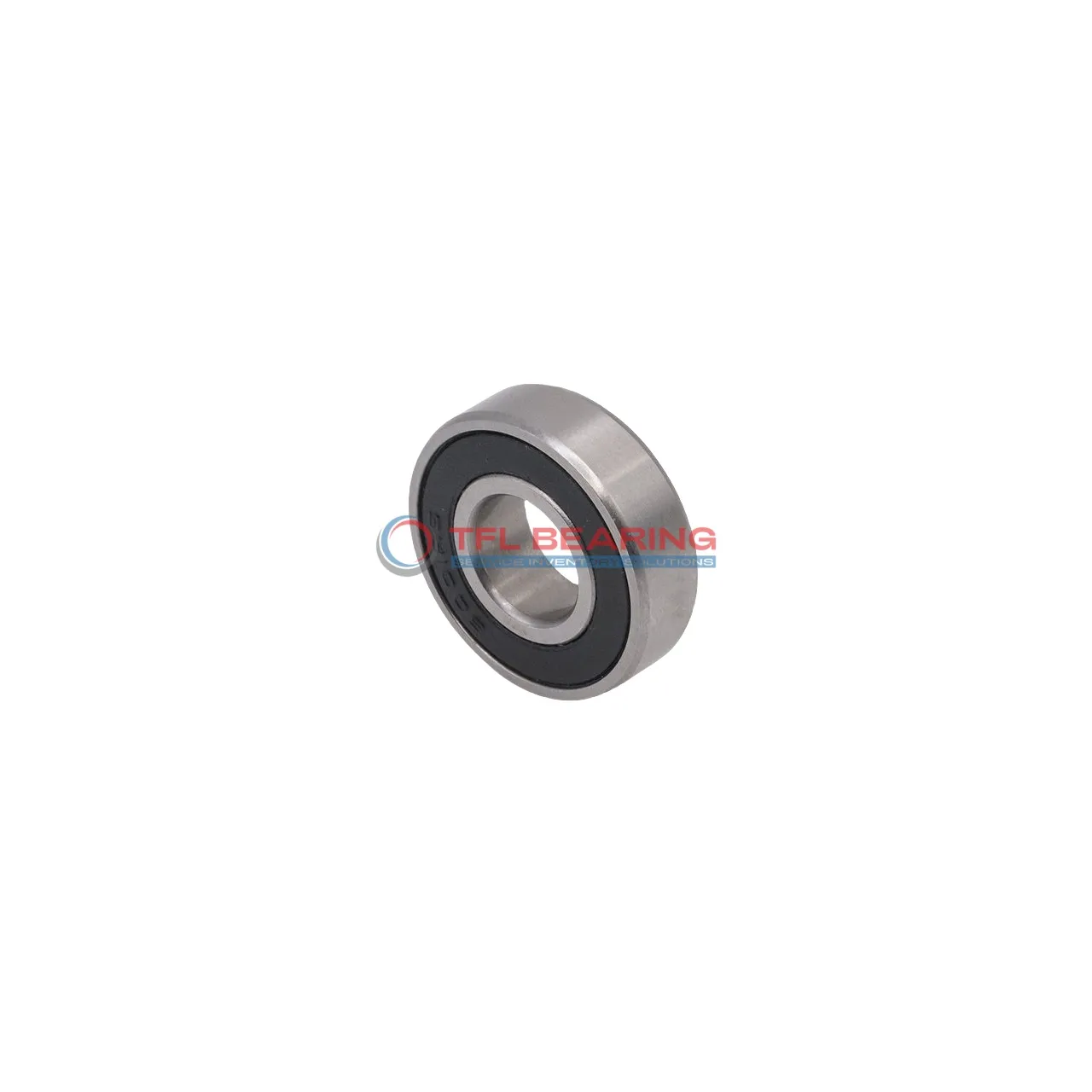

Stainless Steel Deep Groove Ball Bearings W 63801-2RS1

Stainless Steel Deep Groove Ball Bearings W 63801-2RS1

The W 63801-2RS1 is a compact stainless steel deep groove ball bearing, measuring 12mm by 21mm by 7mm. It handles radial loads up to 339 lbf and spins smoothly at speeds up to 20,000 RPM.

Sealed on both sides, it keeps grease in and dirt out, making it low-maintenance. The all-stainless construction resists corrosion, ideal for damp or harsh environments.

With a temperature range of -30°C to 120°C, it works well in varied conditions. Interchangeable with SKF bearings, it’s a reliable choice for replacements.

Weighing just 8.2 grams, it’s perfect for small applications like electric motors or medical devices where hygiene matters. Compliant with RoHS and REACH standards.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number W 63801-2RS1
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 12 mm
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 21 mm
  • Outer Dia Tolerance -0.009mm to 0
  • Width 7 mm
  • Width Tolerance -0.12mm to 0
  • System of Measurement Metric
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Sealed
  • Tolerance Class P0
  • Radial Clearance Trade No CN
  • Ring Material Stainless Steel
  • Ball Material Stainless Steel
  • Cage Material Stainless Steel
  • Dynamic Radial Load 339 lbf
  • Static Radial Load 202 lbf
  • Temperature Range -30° to 120 °C
  • Lubrication Grease
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 20000 rpm
  • Weight 0.0082 kg
Stainless Steel Deep Groove Ball Bearings W 63801-2RS1 dimension drawing
Download DWG Download PDF

Features

Why Choose W 63801-2RS1 Bearing for Precision Tasks?

W 63801-2RS1 Bearing is crafted with stainless steel rings and balls, ensuring excellent corrosion resistance.
Its sealed design keeps out contaminants, making it ideal for precision applications.
The single-row construction provides reliable radial load support, with a dynamic radial load capacity of 339 lbf.
With a maximum speed of 20,000 rpm, it delivers smooth and efficient performance.

Application

Where Is W 63801-2RS1 Bearing Used?
W 63801-2RS1 Bearing is commonly found in small industrial equipment, like compact pumps and electric motors, where its sealed design keeps out dust and moisture. The stainless steel construction makes it suitable for environments where corrosion resistance is needed.

In automotive applications, W 63801-2RS1 Bearing works well in components like window regulators and small gear systems. Its compact size and radial load capacity ensure reliable performance in tight spaces.

For medical devices, W 63801-2RS1 Bearing’s smooth operation is ideal for precision instruments like dental tools or lab equipment. The grease lubrication helps maintain quiet and efficient movement over time.

Around the home, W 63801-2RS1 Bearing can be used in appliances like fans or small power tools. Its durability and low maintenance make it a practical choice for everyday devices.
