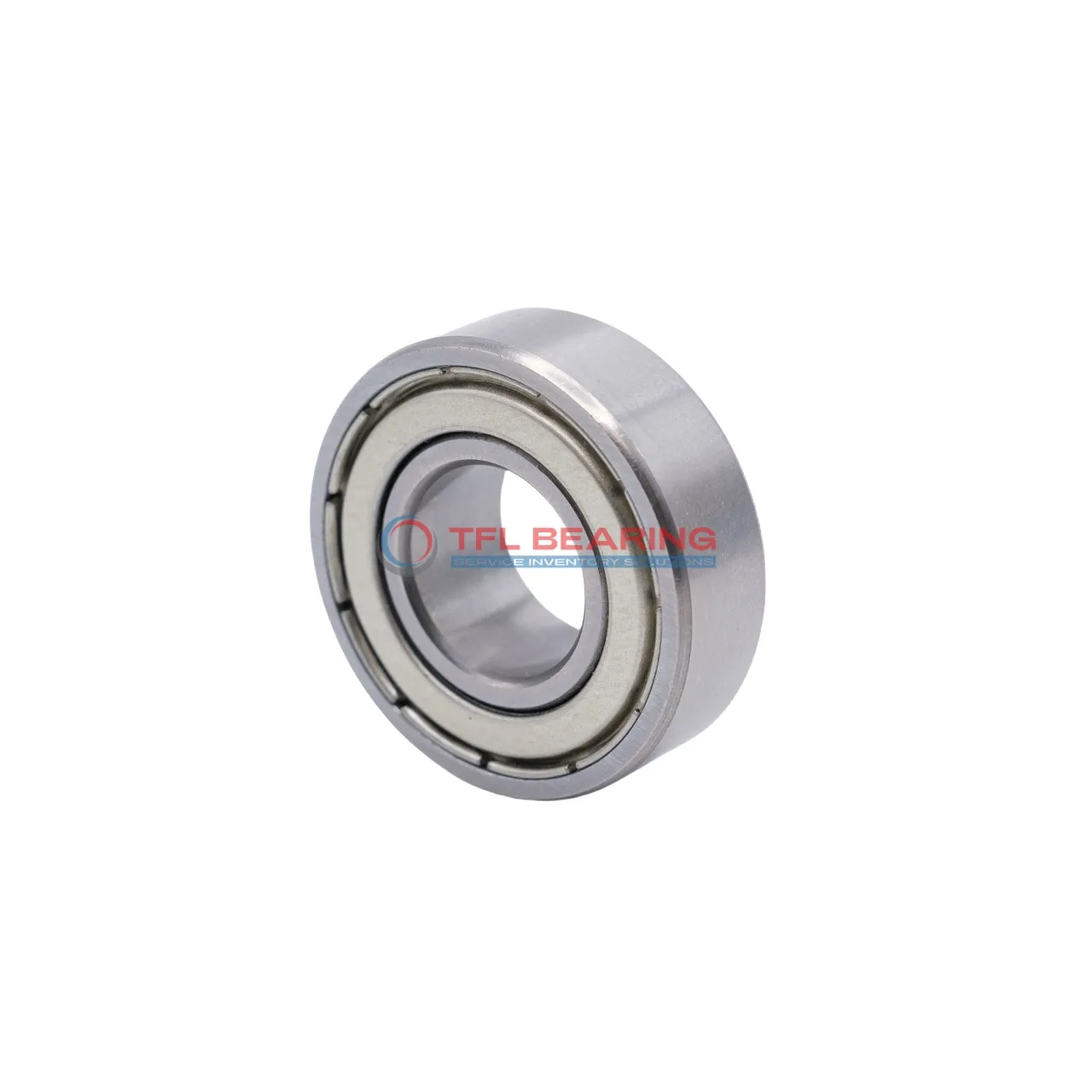

Stainless Steel Deep Groove Ball Bearings W 6304-2Z

Stainless Steel Deep Groove Ball Bearings W 6304-2Z

The W 6304-2Z is a stainless steel deep groove ball bearing with a 20mm bore and 52mm outer diameter, designed for radial loads. It handles dynamic loads up to 3102 lbf and spins smoothly at speeds up to 17000 RPM.

Its shielded design keeps dirt out while retaining grease, making it low-maintenance. The all-stainless construction ensures corrosion resistance and durability in harsh conditions.

This bearing works well in temperatures from -30°C to 120°C and is interchangeable with SKF models. Ideal for food processing equipment or marine applications where rust resistance is key.

Weighing just 0.14kg, it’s a lightweight yet sturdy choice. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number W 6304-2Z
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 20 mm
  • Bore Dia Tolerance -0.01mm to 0
  • Outer Dia 52 mm
  • Outer Dia Tolerance -0.013mm to 0
  • Width 15 mm
  • Width Tolerance -0.12mm to 0
  • System of Measurement Metric
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Shielded
  • Tolerance Class P0
  • Radial Clearance Trade No CN
  • Ring Material Stainless Steel
  • Ball Material Stainless Steel
  • Cage Material Stainless Steel
  • Dynamic Radial Load 3102 lbf
  • Static Radial Load 1754 lbf
  • Temperature Range -30° to 120 °C
  • Lubrication Grease
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 17000 rpm
  • Weight 0.14 kg
Stainless Steel Deep Groove Ball Bearings W 6304-2Z dimension drawing
Download DWG Download PDF

Features

How Does W 6304-2Z Bearing Reduce Friction?

W 6304-2Z Bearing features stainless steel construction, which helps minimise friction during operation.
Its shielded design keeps contaminants out while maintaining smooth movement.

The single-row deep groove design ensures even load distribution, reducing wear over time.
With a maximum speed of 17,000 rpm, it offers efficient performance in various applications.

W 6304-2Z Bearing’s grease lubrication further enhances its smooth operation.
Its dynamic radial load capacity of 3102 lbf makes it suitable for demanding tasks.

Application

Common Applications of W 6304-2Z Bearing
W 6304-2Z Bearing is widely used in industrial equipment like pumps and electric motors, where its shielded design helps keep contaminants out. The stainless steel construction ensures it performs well in wet or corrosive environments.

In automotive applications, W 6304-2Z Bearing fits well in components such as alternators and water pumps, offering reliable radial load support. Its grease lubrication reduces maintenance needs, making it a cost-effective choice for vehicle systems.

For home appliances, W 6304-2Z Bearing works smoothly in items like washing machines and fans, where quiet operation is important. The metric sizing ensures compatibility with a variety of consumer products.

Automation systems benefit from W 6304-2Z Bearing in robotic arms and conveyor belts, where its durability supports continuous operation. The P0 tolerance class provides consistent performance in precision-driven tasks.

Medical devices like dental drills and lab equipment often use W 6304-2Z Bearing for its corrosion-resistant properties. The stainless steel materials meet hygiene standards while maintaining smooth rotation under load.
