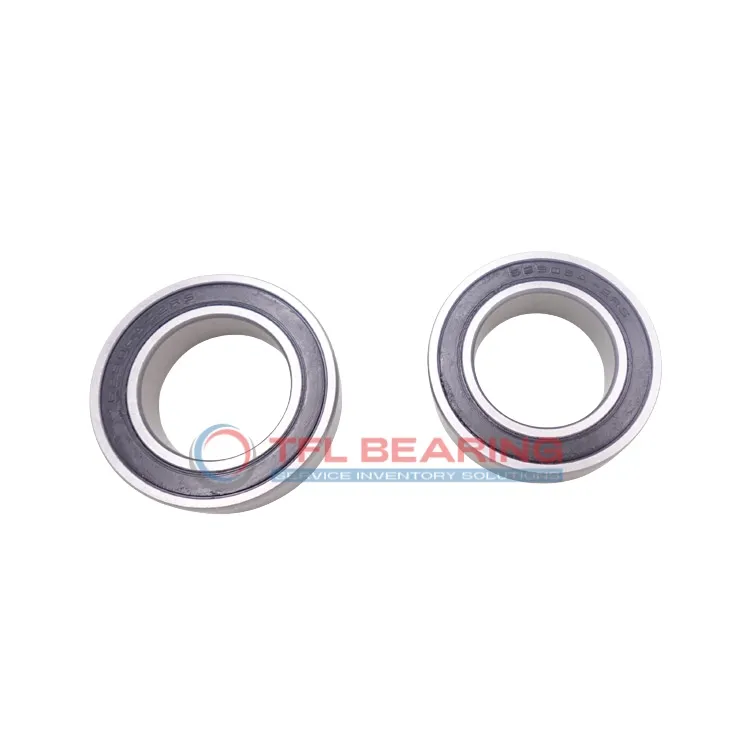

Stainless Steel Deep Groove Ball Bearings W 6303-2RS1/W64

Stainless Steel Deep Groove Ball Bearings W 6303-2RS1/W64

The W 6303-2RS1/W64 is a stainless steel deep groove ball bearing with a 17mm bore and 47mm outer diameter, measuring 14mm wide. Its sealed design keeps dirt out and solid oil lubrication ensures smooth operation.

This bearing handles radial loads up to 2630 lbf and spins at speeds up to 22,000 RPM. Made entirely of stainless steel, it resists corrosion and works in temperatures from -30°C to 120°C.

The chrome steel cage adds durability while maintaining precise ball alignment. It meets ISO P0 standards for reliable performance in various conditions.

Ideal for food processing equipment or marine applications where moisture resistance matters. Compatible with SKF bearings for easy replacement, weighing just 0.11kg for its size.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number W 6303-2RS1/W64
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 17 mm
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 47 mm
  • Outer Dia Tolerance -0.011mm to 0
  • Width 14 mm
  • Width Tolerance -0.12mm to 0
  • System of Measurement Metric
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Sealed
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No CN
  • Ring Material Stainless Steel
  • Ball Material Stainless Steel
  • Cage Material Chrome Steel
  • Dynamic Radial Load 2630 lbf
  • Static Radial Load 1472 lbf
  • Temperature Range -30°to 120 °C
  • Lubrication Soild Oil
  • REACH Compliant
  • Max Speed 22000 rpm
  • Weight 0.11 kg
Stainless Steel Deep Groove Ball Bearings W 6303-2RS1/W64 dimension drawing
Download DWG Download PDF

Features

Why Choose W 6303-2RS1/W64 Bearing for Precision Tasks?

W 6303-2RS1/W64 Bearing is crafted with stainless steel rings and balls, ensuring excellent corrosion resistance.
Its sealed design keeps contaminants out, making it ideal for clean or harsh environments.

The ABEC 1 tolerance class ensures reliable performance in precision applications.
With a dynamic radial load capacity of 2630 lbf, it handles demanding radial loads with ease.

W 6303-2RS1/W64 Bearing operates smoothly at speeds up to 22,000 rpm.
Its solid oil lubrication reduces maintenance needs while ensuring consistent performance.

The chrome steel cage provides durability and keeps the balls aligned.
This design extends the bearing’s service life, even under continuous use.

Application

Common Applications of W 6303-2RS1/W64 Bearing
W 6303-2RS1/W64 Bearing is widely used in industrial equipment like conveyor systems and pumps, where its sealed design keeps contaminants out. The stainless steel construction ensures it handles moisture and chemicals well.

In automotive applications, W 6303-2RS1/W64 Bearing fits well in electric motors and gearboxes, providing smooth rotation under radial loads. Its solid oil lubrication means less maintenance over time.

For home appliances, W 6303-2RS1/W64 Bearing works quietly in washing machines and fans. The ABEC 1 tolerance offers reliable performance without unnecessary precision costs.

Medical devices benefit from W 6303-2RS1/W64 Bearing’s corrosion resistance, especially in lab equipment. The sealed design also helps maintain cleanliness in sensitive environments.
