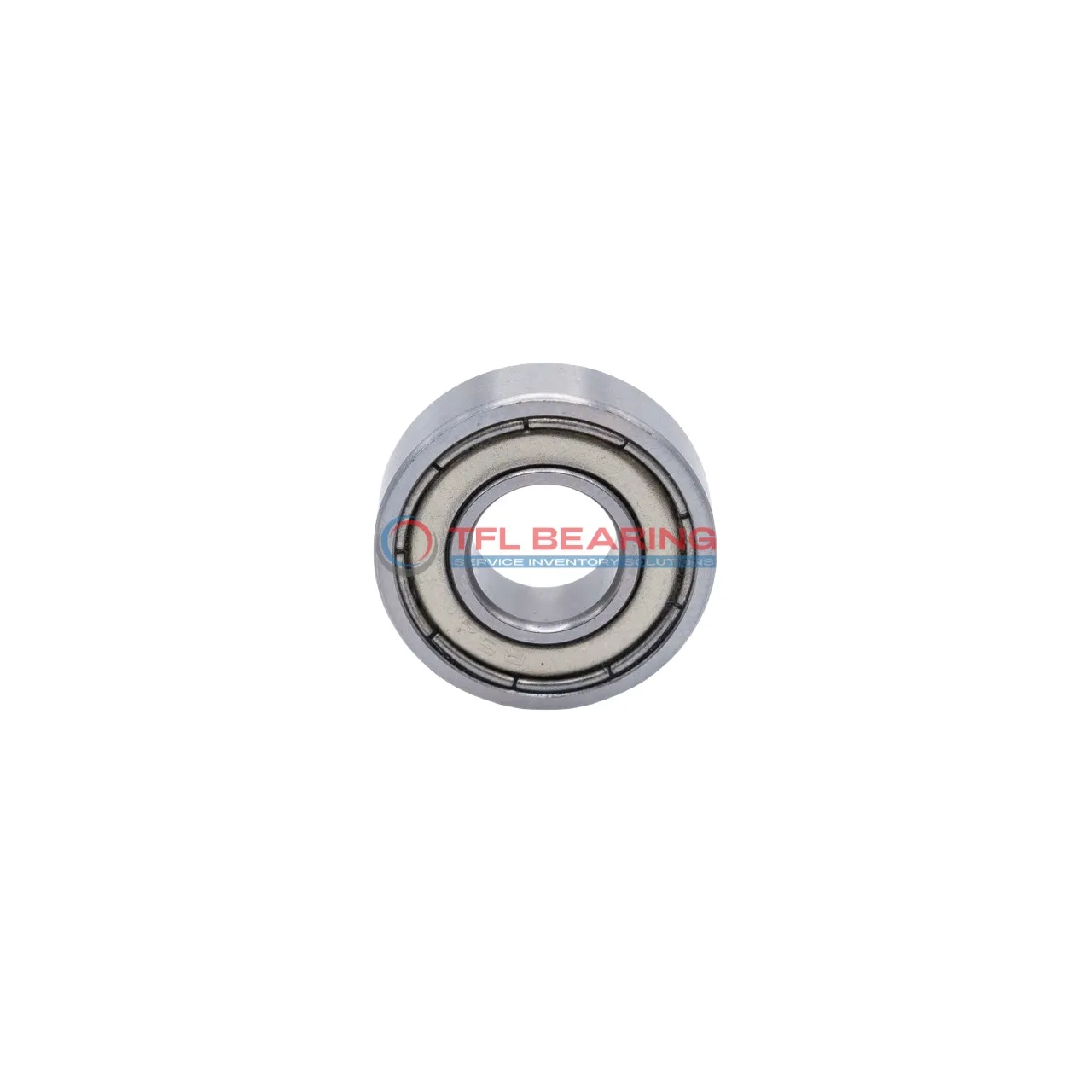

Stainless Steel Deep Groove Ball Bearings W 625-2Z/VT378

Stainless Steel Deep Groove Ball Bearings W 625-2Z/VT378

The W 625-2Z/VT378 is a compact stainless steel deep groove ball bearing, measuring just 5mm by 16mm by 5mm. Its shielded design keeps grease in and dirt out, making it low-maintenance and durable.

With a dynamic radial load capacity of 321 lbf, it handles moderate loads while spinning smoothly at up to 50,000 RPM. The stainless steel construction resists corrosion and works in temperatures from -30°C to 120°C.

This single-row bearing is interchangeable with SKF models, offering a reliable replacement option. Its small size and shielded seals make it ideal for applications like small motors or medical devices where space is limited.

Weighing only 0.0049kg, it’s lightweight yet robust. Compliant with RoHS and REACH standards, it’s a safe choice for various industries.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number W 625-2Z/VT378
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 5 mm
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 16 mm
  • Outer Dia Tolerance -0.008mm to 0
  • Width 5 mm
  • Width Tolerance -0.12mm to 0
  • System of Measurement Metric
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Shielded
  • Tolerance Class P0
  • Radial Clearance Trade No CN
  • Ring Material Stainless Steel
  • Ball Material Stainless Steel
  • Cage Material Stainless Steel
  • Dynamic Radial Load 321 lbf
  • Static Radial Load 142 lbf
  • Temperature Range -30° to 120 °C
  • Lubrication Grease
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 50000 rpm
  • Weight 0.0049 kg
Stainless Steel Deep Groove Ball Bearings W 625-2Z/VT378 dimension drawing
Download DWG Download PDF

Features

How Does W 625-2Z/VT378 Bearing Reduce Friction?

W 625-2Z/VT378 Bearing features stainless steel construction, ensuring smooth operation with minimal friction.

Its shielded design protects against contaminants, maintaining performance in various environments.

The single-row deep groove design enhances radial load capacity, supporting up to 321 lbf dynamic load.

With a maximum speed of 50,000 rpm, it offers efficient performance for high-speed applications.

Application

Industrial Uses of W 625-2Z/VT378 Bearing
W 625-2Z/VT378 Bearing is commonly used in small industrial equipment like pumps and compressors, where its stainless steel construction resists corrosion. The shielded design keeps contaminants out, ensuring smooth operation in dusty environments.

How Does W 625-2Z/VT378 Bearing Improve Performance?
In automotive applications, W 625-2Z/VT378 Bearing enhances the efficiency of small electric motors and fans. Its compact size and high-speed capability make it ideal for tight spaces requiring reliable performance.

Perfect Fit for Automation: W 625-2Z/VT378 Bearing
W 625-2Z/VT378 Bearing works well in robotic arms and 3D printers, where precision and durability are key. The grease lubrication ensures quiet operation, perfect for noise-sensitive environments.

Medical vs Industrial: Where W 625-2Z/VT378 Bearing Excels
W 625-2Z/VT378 Bearing is suitable for medical devices like dental tools, thanks to its hygienic stainless steel build. In industrial settings, it handles light loads in conveyor systems with ease.

Essential Roles of W 625-2Z/VT378 Bearing
For household appliances like fans and printers, W 625-2Z/VT378 Bearing offers long-lasting performance. Its metric sizing ensures compatibility with a variety of consumer electronics.
