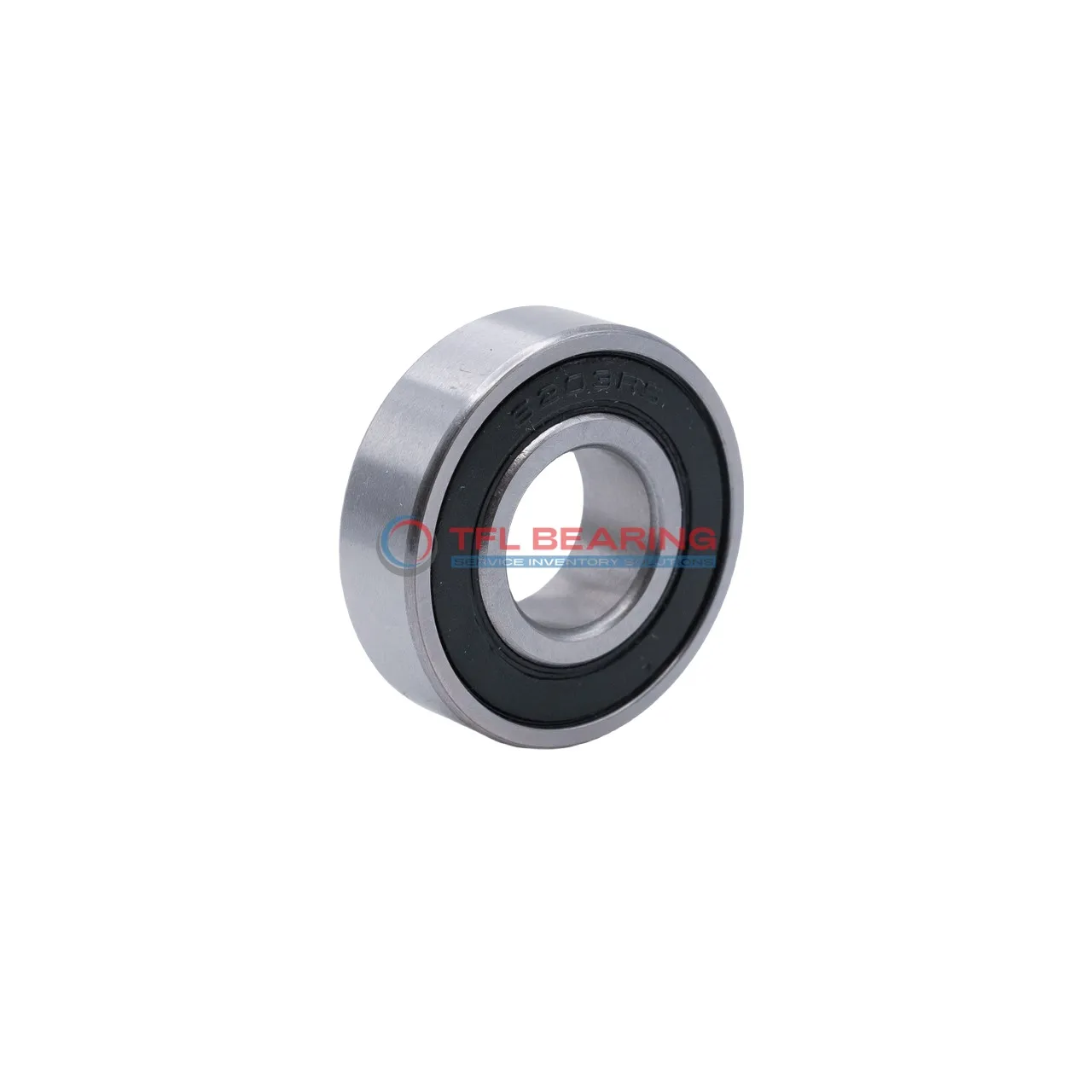

Stainless Steel Deep Groove Ball Bearings W 6209-2RS1

Stainless Steel Deep Groove Ball Bearings W 6209-2RS1

The W 6209-2RS1 is a stainless steel deep groove ball bearing with a 45mm bore and 85mm outer diameter, designed for radial loads. It handles up to 6317 lbf dynamic load and runs smoothly at speeds up to 5000 RPM.

Its sealed design keeps grease in and dirt out, making it low-maintenance and durable. The all-stainless construction resists corrosion, ideal for harsh environments.

This bearing works well in temperatures from -30°C to 120°C, suitable for food processing or marine applications. It’s interchangeable with SKF models for easy replacement.

Weighing 0.39kg, it’s a sturdy choice for machinery requiring reliable performance. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number W 6209-2RS1
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 45 mm
  • Bore Dia Tolerance -0.012mm to 0
  • Outer Dia 85 mm
  • Outer Dia Tolerance -0.015mm to 0
  • Width 19 mm
  • Width Tolerance -0.12mm to 0
  • System of Measurement Metric
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Sealed
  • Tolerance Class P0
  • Radial Clearance Trade No CN
  • Ring Material Stainless Steel
  • Ball Material Stainless Steel
  • Cage Material Stainless Steel
  • Dynamic Radial Load 6317 lbf
  • Static Radial Load 4586 lbf
  • Temperature Range -30° to 120 °C
  • Lubrication Grease
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 5000 rpm
  • Weight 0.39 kg
  • Price（$） 41.88
Stainless Steel Deep Groove Ball Bearings W 6209-2RS1 dimension drawing
Download DWG Download PDF

Features

How Does W 6209-2RS1 Bearing Resist Wear?

W 6209-2RS1 Bearing is made entirely of stainless steel, offering excellent resistance to wear and corrosion.

Its sealed design protects against contaminants, ensuring smooth operation in harsh environments.

With a dynamic radial load capacity of 6317 lbf, it handles heavy loads reliably.

The grease lubrication reduces friction, extending the bearing’s service life.

Application

Industrial Uses of W 6209-2RS1 Bearing
W 6209-2RS1 Bearing is commonly used in industrial machinery, such as pumps and compressors, where its sealed design helps keep contaminants out. The stainless steel construction ensures it performs well in humid or corrosive environments.

What Makes W 6209-2RS1 Bearing a Preferred Choice?
In automotive applications, W 6209-2RS1 Bearing works well in electric motors and alternators due to its reliable radial load capacity. The grease lubrication also reduces maintenance needs, making it a hassle-free option.

Perfect Fit for Automation: W 6209-2RS1 Bearing
For automated systems like conveyor belts, W 6209-2RS1 Bearing offers smooth operation and long service life. Its metric sizing ensures compatibility with a variety of equipment.

Medical vs Industrial: Where W 6209-2RS1 Bearing Excels
In medical devices, W 6209-2RS1 Bearing provides quiet and precise performance, ideal for diagnostic equipment. Its stainless steel materials also meet hygiene standards in sensitive environments.

Where to Use W 6209-2RS1 Bearing
In household appliances like washing machines, W 6209-2RS1 Bearing ensures quiet and efficient operation. The sealed design protects against dust and moisture, extending its lifespan.
