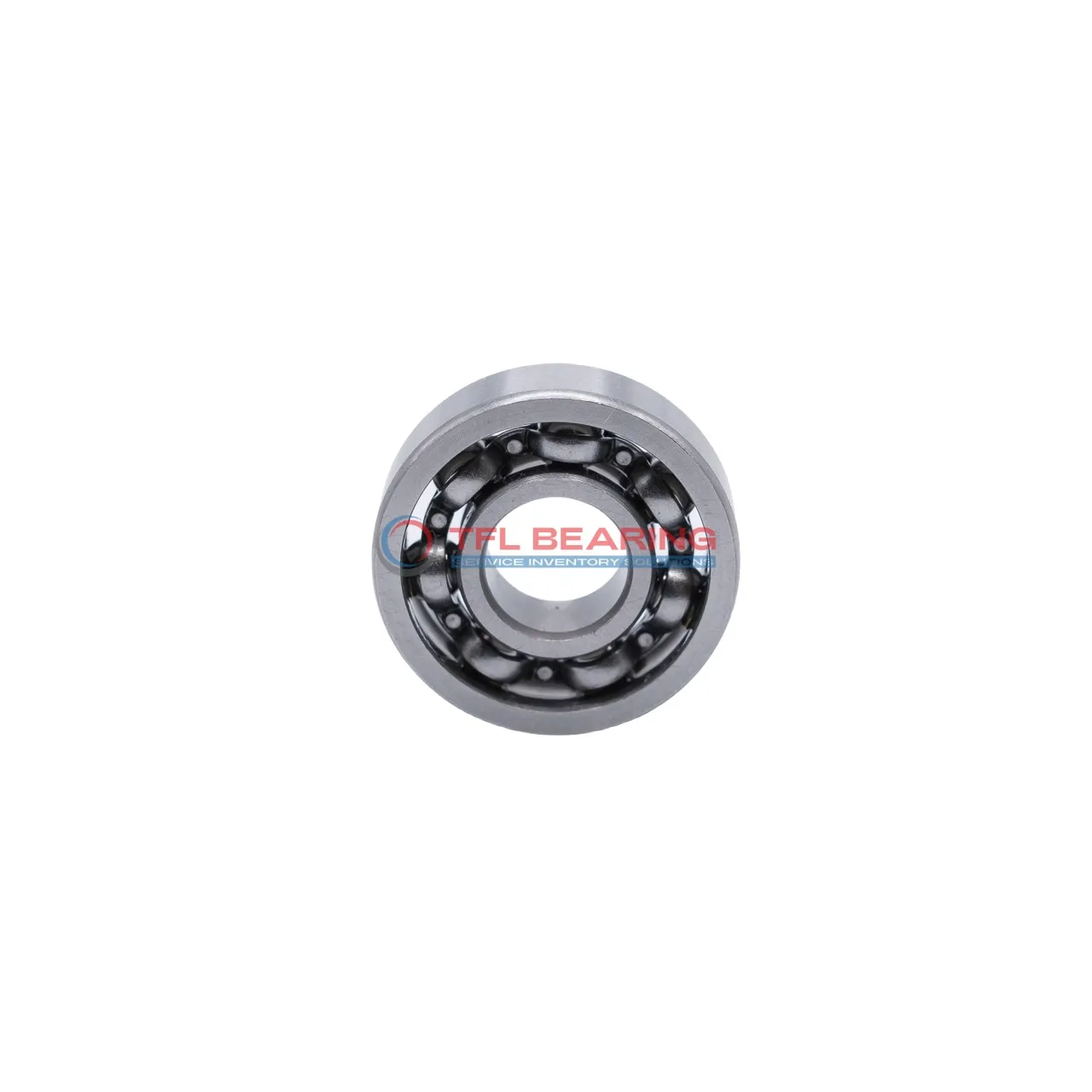

Stainless Steel Deep Groove Ball Bearings W 6206/W64

Stainless Steel Deep Groove Ball Bearings W 6206/W64

The W 6206/W64 is a stainless steel deep groove ball bearing with a 30mm bore and 62mm outer diameter, designed for radial loads. It handles dynamic loads up to 3709 lbf and spins smoothly at speeds up to 16,000 RPM.

Its open design and solid oil lubrication ensure low maintenance, while the stainless steel construction offers excellent corrosion resistance. The bearing operates well in temperatures from -30°C to 120°C.

This model is interchangeable with SKF bearings, making it a versatile choice for replacements. Ideal for applications like food processing or marine equipment where rust resistance is key.

Weighing just 0.19kg, it’s a lightweight yet durable option for various industrial uses. Compliant with REACH standards for safe handling.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number W 6206/W64
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 30 mm
  • Bore Dia Tolerance -0.01mm to 0
  • Outer Dia 62 mm
  • Outer Dia Tolerance -0.013mm to 0
  • Width 16 mm
  • Width Tolerance -0.12mm to 0
  • System of Measurement Metric
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Open
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No CN
  • Ring Material Stainless Steel
  • Ball Material Stainless Steel
  • Cage Material Chrome Steel
  • Dynamic Radial Load 3709 lbf
  • Static Radial Load 2518 lbf
  • Temperature Range -30°to 120 °C
  • Lubrication Soild Oil
  • REACH Compliant
  • Max Speed 16000 rpm
  • Weight 0.19 kg
Stainless Steel Deep Groove Ball Bearings W 6206/W64 dimension drawing
Download DWG Download PDF

Features

Core Advantages of W 6206/W64 Bearing

W 6206/W64 Bearing is crafted from stainless steel, offering excellent resistance to corrosion and wear.
Its single-row deep groove design ensures smooth radial load handling, ideal for various applications.

The chrome steel cage maintains ball alignment, enhancing durability and reducing friction.
With a dynamic radial load capacity of 3709 lbf, it delivers reliable performance under stress.

W 6206/W64 Bearing operates efficiently at speeds up to 16,000 rpm, balancing speed and stability.
Its solid oil lubrication reduces maintenance needs, making it a practical choice for long-term use.

Application

Industrial Uses of W 6206/W64 Bearing
W 6206/W64 Bearing is commonly used in industrial machinery like pumps and electric motors, where its stainless steel construction offers good corrosion resistance. The open design allows for easy lubrication, making it suitable for environments with high humidity or exposure to chemicals.

What Makes W 6206/W64 Bearing a Preferred Choice?
In automotive applications, W 6206/W64 Bearing works well in components like alternators and water pumps due to its radial load capacity. The metric sizing ensures compatibility with a variety of vehicle models, both in Europe and Asia.

Perfect Fit for Automation: W 6206/W64 Bearing
For automation systems, W 6206/W64 Bearing provides reliable performance in robotic arms and conveyor belts. Its solid oil lubrication reduces maintenance needs, making it a practical choice for continuous operation.

Medical vs Industrial: Where W 6206/W64 Bearing Excels
In medical devices like dental drills, W 6206/W64 Bearing’s smooth operation is essential for precision. Meanwhile, in industrial settings, its durability makes it ideal for food processing equipment where hygiene and reliability are key.
