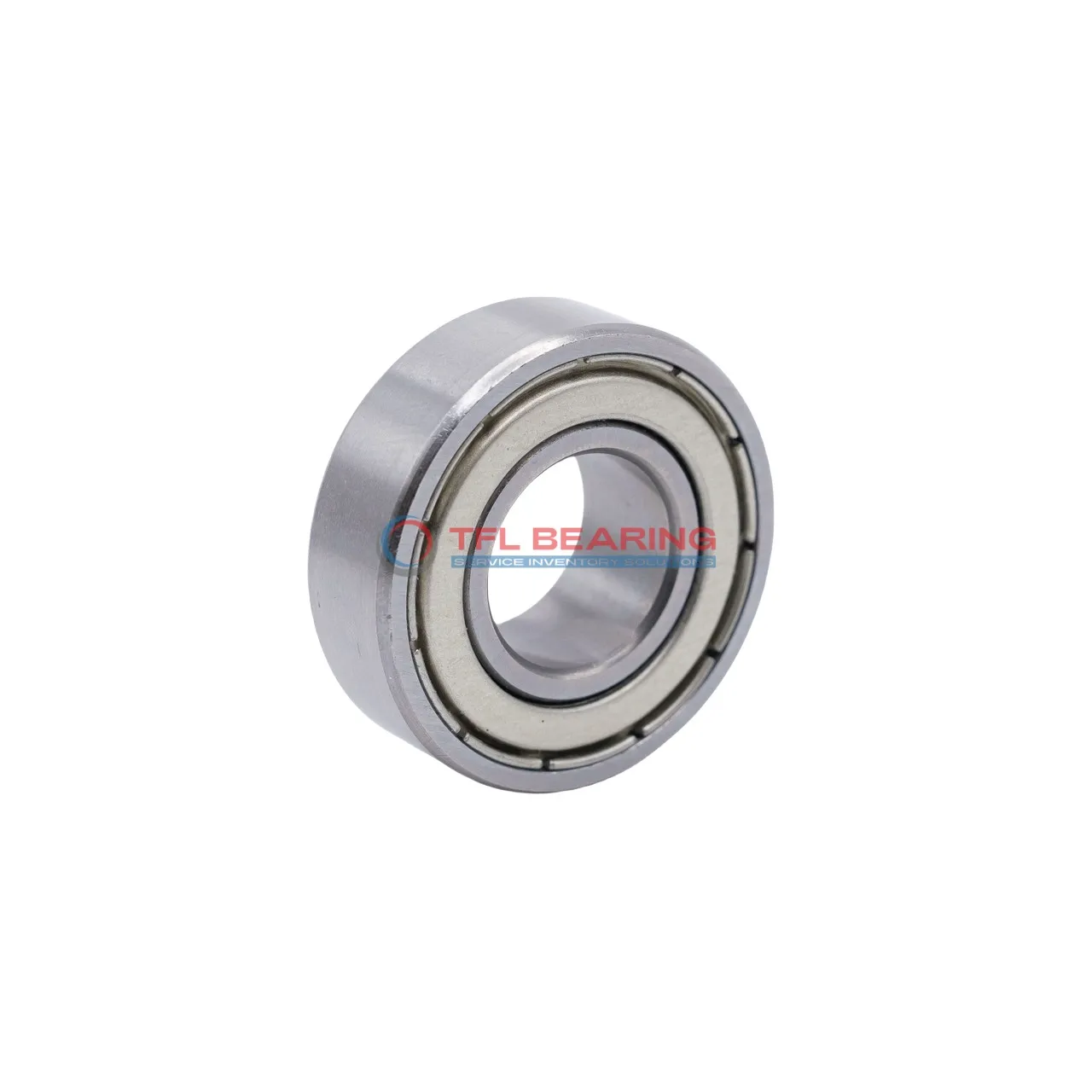

Stainless Steel Deep Groove Ball Bearings W 6204-2Z/R799

Stainless Steel Deep Groove Ball Bearings W 6204-2Z/R799

The W 6204-2Z/R799 is a stainless steel deep groove ball bearing with a 20mm bore and 47mm outer diameter, designed for radial loads. Its compact 14mm width makes it suitable for tight spaces, while the shielded design keeps contaminants out.

This bearing handles dynamic radial loads up to 2428 lbf and can reach speeds of 22,000 RPM, thanks to its durable stainless steel construction. The chrome steel cage adds strength and longevity.

Ideal for applications like food processing or marine equipment where corrosion resistance is key. It operates smoothly in temperatures from -30°C to 120°C.

Weighing just 0.1kg, it’s a lightweight yet robust choice. Compliant with REACH standards, it’s interchangeable with SKF bearings for easy replacement.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number W 6204-2Z/R799
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 20 mm
  • Bore Dia Tolerance -0.01mm to 0
  • Outer Dia 47 mm
  • Outer Dia Tolerance -0.011mm to 0
  • Width 14 mm
  • Width Tolerance -0.12mm to 0
  • System of Measurement Metric
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Shielded
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No CN
  • Ring Material Stainless Steel
  • Ball Material Stainless Steel
  • Cage Material Chrome Steel
  • Dynamic Radial Load 2428 lbf
  • Static Radial Load 1472 lbf
  • Temperature Range -30°to 120 °C
  • REACH Compliant
  • Max Speed 22000 rpm
  • Weight 0.1 kg
  • Price（$） 15.79
Stainless Steel Deep Groove Ball Bearings W 6204-2Z/R799 dimension drawing
Download DWG Download PDF

Features

How Does W 6204-2Z/R799 Bearing Reduce Friction?

W 6204-2Z/R799 Bearing features stainless steel rings and balls, ensuring smooth operation with minimal friction.

The shielded design helps keep contaminants out, maintaining consistent performance over time.

With a dynamic radial load capacity of 2428 lbf, it handles demanding applications efficiently.

Its maximum speed of 22,000 rpm makes it suitable for high-speed operations.

Application

Industrial Uses of W 6204-2Z/R799 Bearing
W 6204-2Z/R799 Bearing is commonly used in industrial settings, such as conveyor systems and electric motors, where its shielded design helps keep contaminants out. The stainless steel construction ensures it can handle moderate loads while resisting corrosion.

What Makes W 6204-2Z/R799 Bearing a Preferred Choice?
In automotive applications, W 6204-2Z/R799 Bearing works well in alternators and water pumps due to its reliable radial load capacity. The metric sizing makes it easy to fit into various vehicle models without modifications.

Perfect Fit for Automation: W 6204-2Z/R799 Bearing
For robotics and automated machinery, W 6204-2Z/R799 Bearing offers smooth operation in joints and pivots. Its ABEC 1 tolerance ensures consistent performance without unnecessary precision costs.

Medical vs Industrial: Where W 6204-2Z/R799 Bearing Excels
While W 6204-2Z/R799 Bearing suits industrial gearboxes, it also fits medical devices like dental drills where hygiene matters. The stainless steel material meets cleanliness standards while maintaining durability.

How Does W 6204-2Z/R799 Bearing Support High-Speed Operations?
In household appliances like washing machines, W 6204-2Z/R799 Bearing handles high-speed spinning with minimal noise. The shielded design keeps lint and dust from affecting its performance over time.
