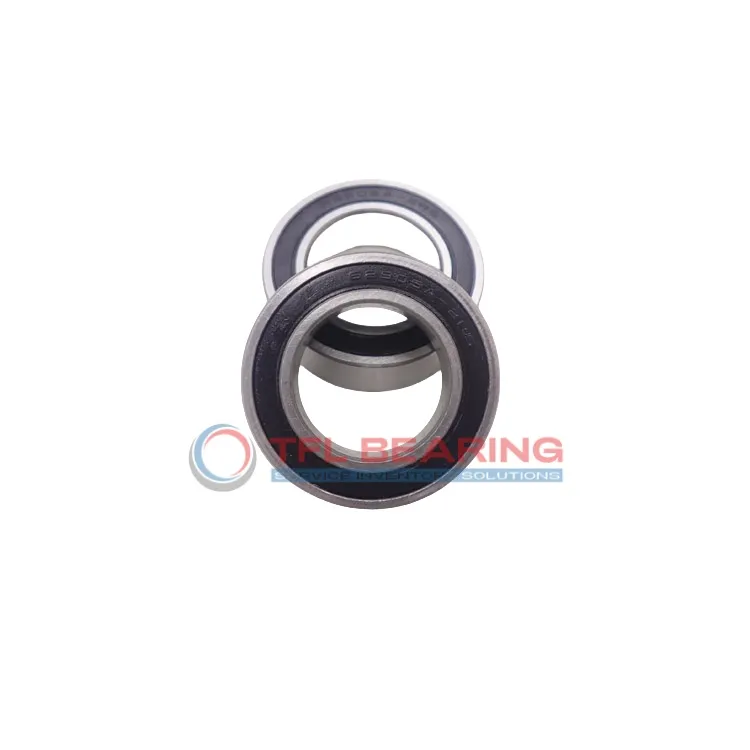

Stainless Steel Deep Groove Ball Bearings W 6204-2RS1

Stainless Steel Deep Groove Ball Bearings W 6204-2RS1

The W 6204-2RS1 is a stainless steel deep groove ball bearing measuring 20mm by 47mm by 14mm, designed for radial loads. It handles dynamic loads up to 2428 lbf and spins smoothly at speeds up to 10,000 RPM.

Its sealed design keeps grease in and dirt out, making it low-maintenance and durable. The all-stainless construction resists corrosion, ideal for damp or harsh environments.

This bearing works in temperatures from -30°C to 120°C and is interchangeable with SKF models. Perfect for food processing equipment or marine applications where rust resistance matters.

Weighing just 0.1kg, it’s a lightweight yet robust choice. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number W 6204-2RS1
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 20 mm
  • Bore Dia Tolerance -0.01mm to 0
  • Outer Dia 47 mm
  • Outer Dia Tolerance -0.011mm to 0
  • Width 14 mm
  • Width Tolerance -0.12mm to 0
  • System of Measurement Metric
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Sealed
  • Tolerance Class P0
  • Radial Clearance Trade No CN
  • Ring Material Stainless Steel
  • Ball Material Stainless Steel
  • Cage Material Stainless Steel
  • Dynamic Radial Load 2428 lbf
  • Static Radial Load 1472 lbf
  • Temperature Range -30° to 120 °C
  • Lubrication Grease
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 10000 rpm
  • Weight 0.1 kg
  • Price（$） 17.44
Stainless Steel Deep Groove Ball Bearings W 6204-2RS1 dimension drawing
Download DWG Download PDF

Features

Performance Features of W 6204-2RS1 Bearing

W 6204-2RS1 Bearing is constructed with stainless steel rings and balls, offering excellent resistance to corrosion.
Its sealed design keeps contaminants out, ensuring smooth operation in various environments.

The dynamic radial load capacity of 2428 lbf makes it suitable for demanding radial applications.
With a maximum speed of 10,000 rpm, it delivers reliable performance without compromising efficiency.

W 6204-2RS1 Bearing’s grease lubrication reduces maintenance needs, extending its service life.
The stainless steel cage ensures proper ball alignment, minimising wear and noise during operation.

Application

Industrial Uses of W 6204-2RS1 Bearing
W 6204-2RS1 Bearing is commonly used in industrial machinery, such as pumps and conveyors, where its sealed design helps keep contaminants out. The stainless steel construction ensures durability in humid or corrosive environments.

Where Is W 6204-2RS1 Bearing Used?
In automotive applications, W 6204-2RS1 Bearing can be found in electric motors and alternators, providing smooth rotation under radial loads. Its metric sizing makes it a versatile choice for various vehicle models.

Perfect Fit for Automation: W 6204-2RS1 Bearing
W 6204-2RS1 Bearing works well in robotic arms and automated systems, thanks to its reliable performance and low maintenance needs. The grease lubrication ensures long-lasting operation even in high-speed scenarios.

Medical vs Industrial: Where W 6204-2RS1 Bearing Excels
In medical devices like lab equipment, W 6204-2RS1 Bearing offers quiet and precise movement. Its stainless steel materials also make it suitable for food processing machinery where hygiene is important.

Key Fields for W 6204-2RS1 Bearing
W 6204-2RS1 Bearing is a great fit for household appliances like washing machines, where its sealed design prevents grease leakage. The corrosion-resistant materials ensure it lasts even with frequent use.
