Stainless Steel Deep Groove Ball Bearings W 6202-2RS1/W64

Stainless Steel Deep Groove Ball Bearings W 6202-2RS1/W64

The W 6202-2RS1/W64 is a stainless steel deep groove ball bearing with a 15mm bore and 35mm outer diameter, measuring 11mm wide. Its sealed design keeps dirt out and lubrication in, making it low-maintenance.

Made from durable stainless steel, it handles radial loads up to 1432 lbf and spins smoothly at speeds up to 30,000 RPM. The solid oil lubrication ensures long-lasting performance without frequent re-greasing.

This bearing is interchangeable with SKF models, ideal for replacements in machinery or pumps. Its compact size and corrosion resistance make it suitable for food processing or marine environments.

Weighing just 41 grams, it’s lightweight yet robust. It operates in temperatures from -30°C to 120°C and complies with REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number W 6202-2RS1/W64
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 15 mm
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 35 mm
  • Outer Dia Tolerance -0.011mm to 0
  • Width 11 mm
  • Width Tolerance -0.12mm to 0
  • System of Measurement Metric
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Sealed
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No CN
  • Ring Material Stainless Steel
  • Ball Material Stainless Steel
  • Cage Material Chrome Steel
  • Dynamic Radial Load 1432 lbf
  • Static Radial Load 809 lbf
  • Temperature Range -30°to 120 °C
  • Lubrication Soild Oil
  • REACH Compliant
  • Max Speed 30000 rpm
  • Weight 0.041 kg

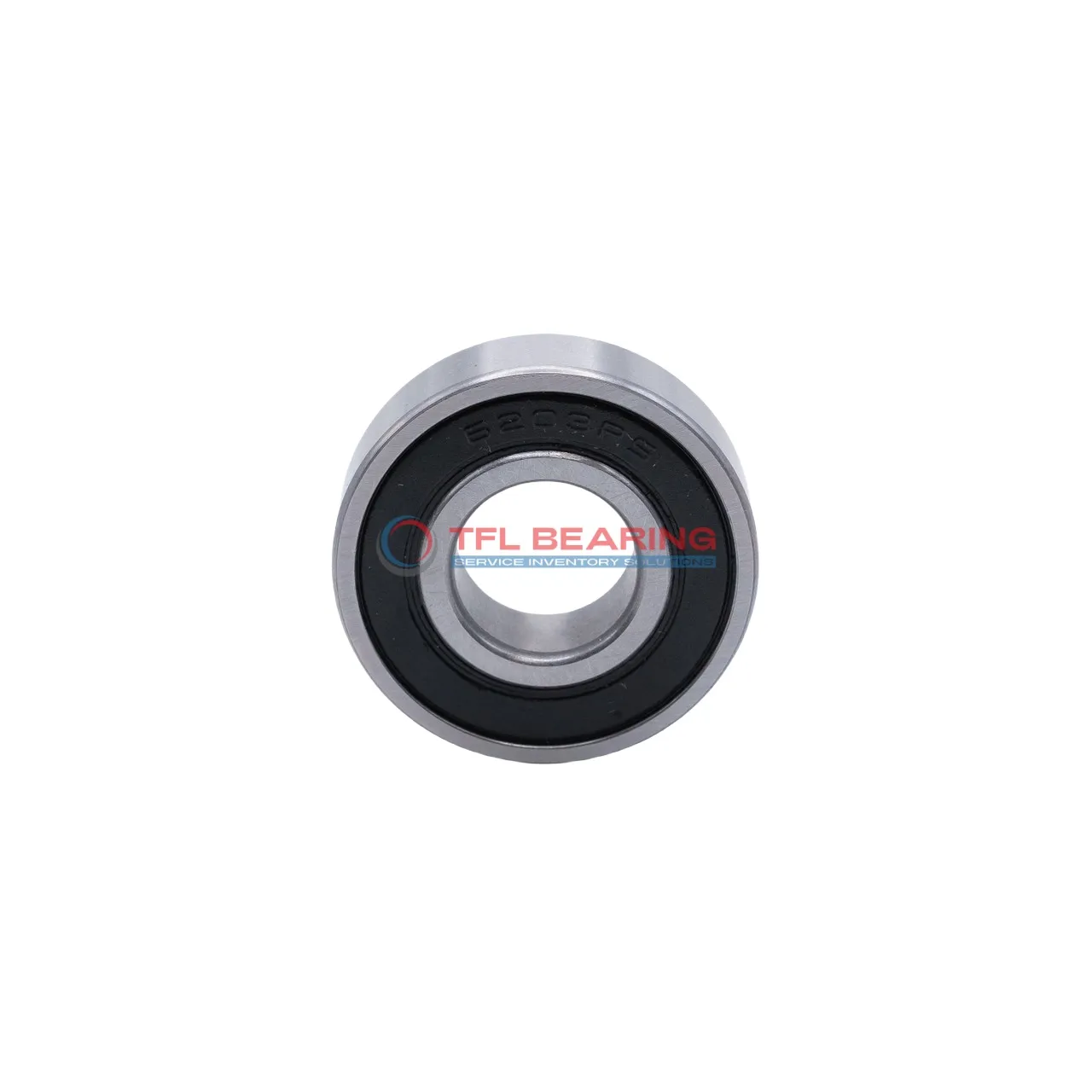

Stainless Steel Deep Groove Ball Bearings W 6202-2RS1/W64 dimension drawing
Download DWG Download PDF

Features

Why Choose W 6202-2RS1/W64 Bearing for Precision Tasks?

W 6202-2RS1/W64 Bearing is crafted with stainless steel rings and balls, offering excellent corrosion resistance.
Its sealed design keeps out contaminants, ensuring smooth operation in various environments.
The solid oil lubrication reduces maintenance needs while providing consistent performance.
With a maximum speed of 30,000 rpm, it delivers reliable efficiency for precision applications.

Application

Industrial Uses of W 6202-2RS1/W64 Bearing
W 6202-2RS1/W64 Bearing is commonly used in conveyor systems, where its sealed design helps keep out dust and debris. The stainless steel construction also makes it suitable for food processing equipment, where hygiene is a priority.

In automotive applications, W 6202-2RS1/W64 Bearing works well in electric motors and pumps, thanks to its solid oil lubrication. The ABEC 1 tolerance ensures reliable performance without needing frequent adjustments.

For home appliances like washing machines, W 6202-2RS1/W64 Bearing’s radial load capacity handles the constant motion smoothly. Its compact size fits neatly into tight spaces, making it a versatile choice for various household gadgets.

Medical devices such as dental tools benefit from W 6202-2RS1/W64 Bearing’s quiet operation and corrosion resistance. The sealed design also prevents contamination, which is crucial in sterile environments.
