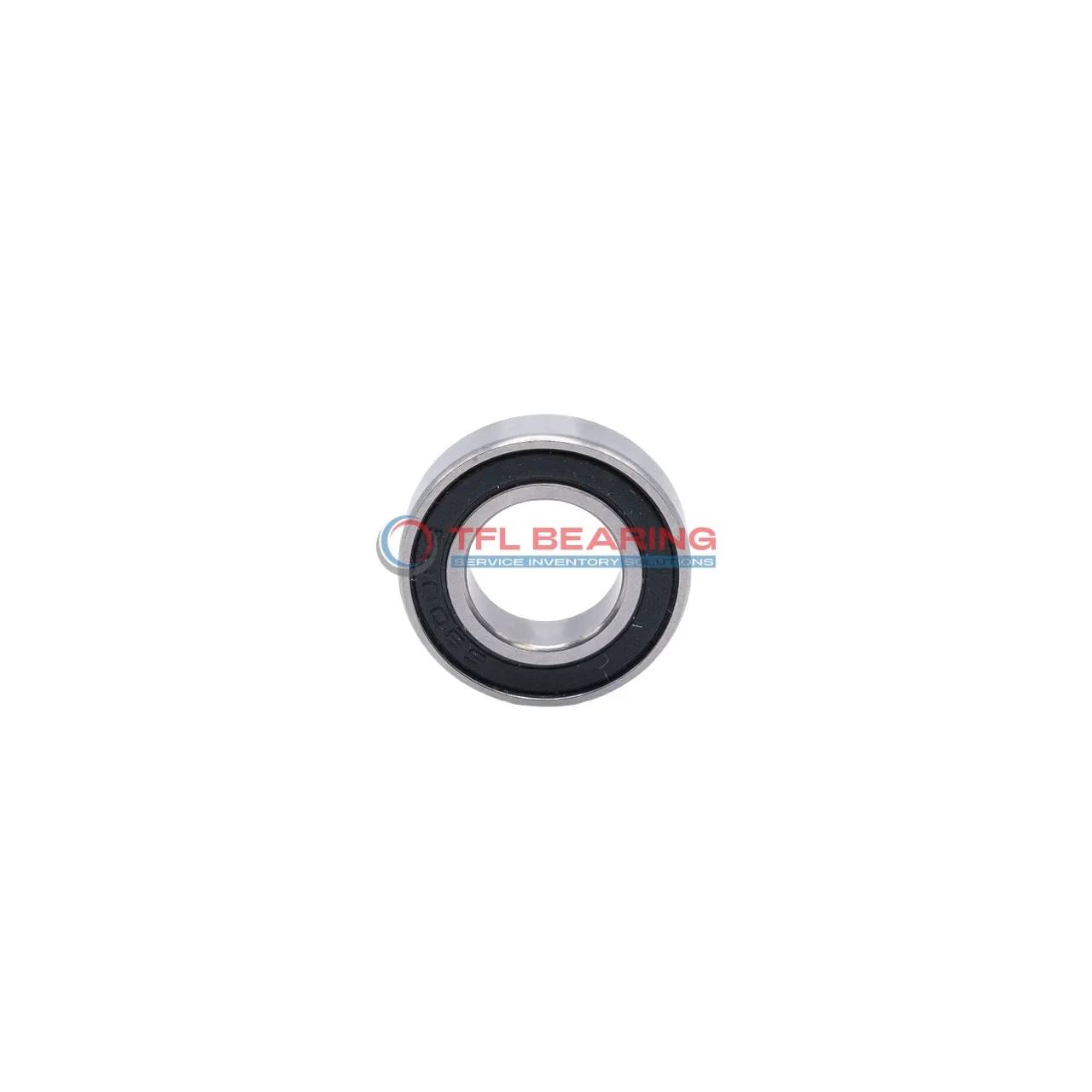

Stainless Steel Deep Groove Ball Bearings W 6201-2RS1/W64

Stainless Steel Deep Groove Ball Bearings W 6201-2RS1/W64

The W 6201-2RS1/W64 is a compact stainless steel deep groove ball bearing, measuring 12mm by 32mm by 10mm. It handles radial loads up to 1286 lbf and spins smoothly at speeds up to 34,000 RPM.

Its sealed design with solid oil lubrication keeps dirt out and reduces maintenance needs. The stainless steel construction offers good corrosion resistance for harsh environments.

This bearing is interchangeable with SKF models, making replacements straightforward. It works well in applications like small motors or food processing equipment where cleanliness matters.

Weighing just 34 grams, it’s lightweight yet durable. The bearing operates in temperatures from -30°C to 120°C and meets REACH compliance standards.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number W 6201-2RS1/W64
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 12 mm
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 32 mm
  • Outer Dia Tolerance -0.011mm to 0
  • Width 10 mm
  • Width Tolerance -0.12mm to 0
  • System of Measurement Metric
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Sealed
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No CN
  • Ring Material Stainless Steel
  • Ball Material Stainless Steel
  • Cage Material Chrome Steel
  • Dynamic Radial Load 1286 lbf
  • Static Radial Load 674 lbf
  • Temperature Range -30°to 120 °C
  • Lubrication Soild Oil
  • REACH Compliant
  • Max Speed 34000 rpm
  • Weight 0.034 kg
Stainless Steel Deep Groove Ball Bearings W 6201-2RS1/W64 dimension drawing
Download DWG Download PDF

Features

Why Choose W 6201-2RS1/W64 Bearing for Precision Tasks?

W 6201-2RS1/W64 Bearing is crafted with stainless steel rings and balls, offering excellent resistance to corrosion and wear.
Its sealed design keeps contaminants out, ensuring smooth operation in various environments.

The solid oil lubrication reduces maintenance needs while providing consistent performance.
With a maximum speed of 34,000 rpm, it delivers reliable efficiency for precision applications.

W 6201-2RS1/W64 Bearing’s dynamic radial load capacity of 1286 lbf makes it suitable for demanding radial loads.
Its compact size (12 mm×32 mm×10 mm) allows for easy integration into tight spaces.

Application

Common Applications of W 6201-2RS1/W64 Bearing
W 6201-2RS1/W64 Bearing is widely used in industrial equipment like conveyor systems and small electric motors, where its sealed design keeps contaminants out. The stainless steel construction ensures it performs well in humid or corrosive environments.

In the automotive sector, W 6201-2RS1/W64 Bearing fits well in components like alternators and water pumps, offering reliable radial load support. Its solid oil lubrication reduces maintenance needs, making it a hassle-free option for vehicle systems.

For home appliances, W 6201-2RS1/W64 Bearing works smoothly in devices like fans and washing machines, thanks to its quiet operation. The ABEC 1 tolerance ensures consistent performance without unnecessary complexity.

Automation systems benefit from W 6201-2RS1/W64 Bearing’s precision in robotic arms and small actuators. The compact size and metric measurements make it easy to integrate into various designs.

Medical devices like dental tools often use W 6201-2RS1/W64 Bearing for its corrosion resistance and smooth rotation. The sealed design also helps maintain hygiene in sensitive applications.
