Stainless Steel Deep Groove Ball Bearings W 61910

Stainless Steel Deep Groove Ball Bearings W 61910

The W 61910 is a stainless steel deep groove ball bearing with a 50mm bore and 72mm outer diameter, designed for radial loads. It handles dynamic loads up to 2810 lbf and operates smoothly at speeds up to 12000 RPM.

Its open design allows for easy lubrication, while the all-stainless steel construction ensures corrosion resistance. The bearing performs well in temperatures ranging from -30°C to 120°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Suitable for applications like food processing or marine equipment where rust resistance is key.

Weighing just 0.12kg, it’s lightweight yet durable. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number W 61910
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 50 mm
  • Bore Dia Tolerance -0.012mm to 0
  • Outer Dia 72 mm
  • Outer Dia Tolerance -0.013mm to 0
  • Width 12 mm
  • Width Tolerance -0.12mm to 0
  • System of Measurement Metric
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Open
  • Tolerance Class P0
  • Radial Clearance Trade No CN
  • Ring Material Stainless Steel
  • Ball Material Stainless Steel
  • Cage Material Stainless Steel
  • Dynamic Radial Load 2810 lbf
  • Static Radial Load 2608 lbf
  • Temperature Range -30° to 120 °C
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 12000 rpm
  • Weight 0.12 kg

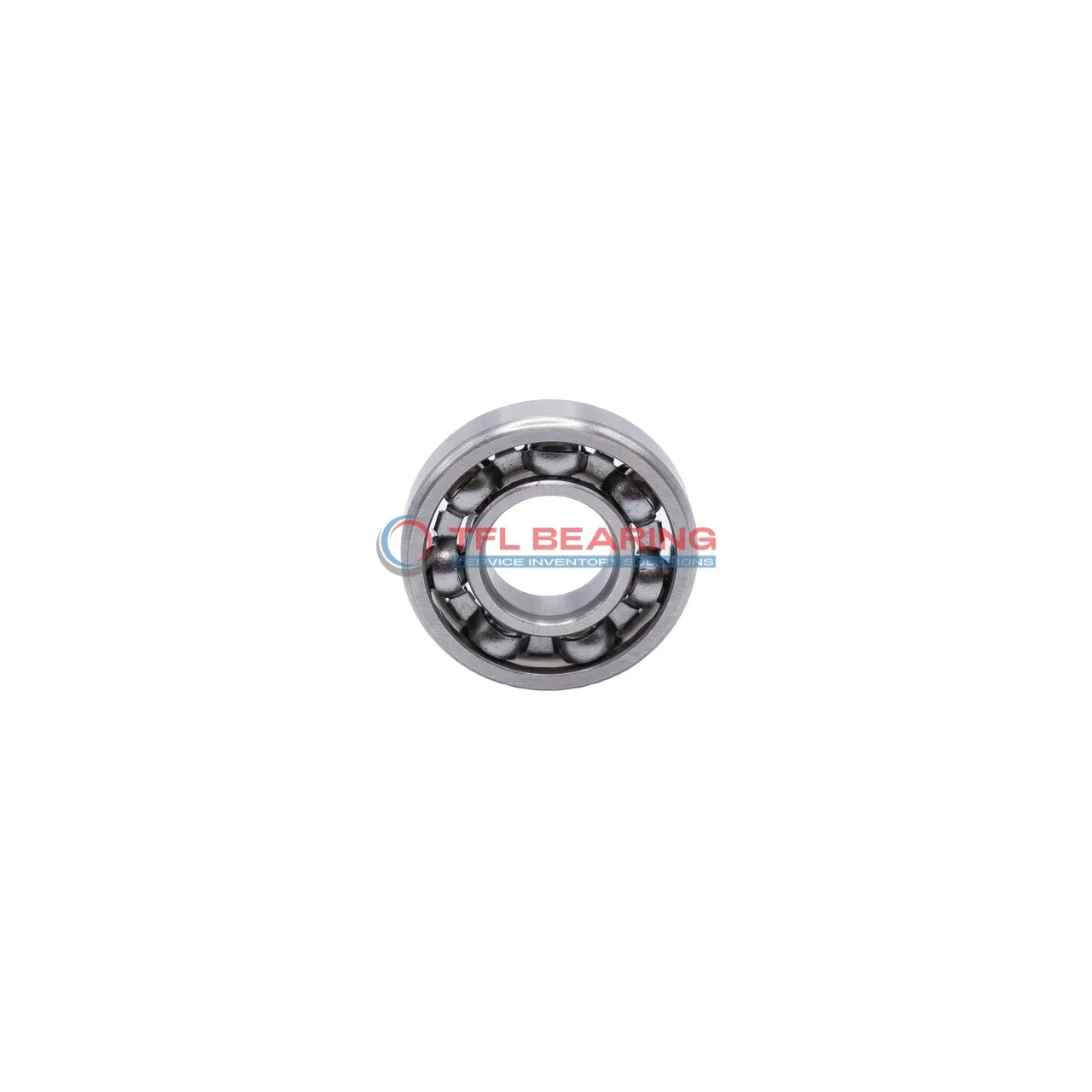

Stainless Steel Deep Groove Ball Bearings W 61910 dimension drawing
Download DWG Download PDF

Features

Why Choose W 61910 Bearing for Precision Tasks?

W 61910 Bearing is crafted from stainless steel, offering excellent resistance to corrosion and wear.
Its single-row design ensures smooth radial load handling, making it ideal for precision applications.

The bearing’s dynamic radial load capacity of 2810 lbf provides reliable performance under stress.
With a maximum speed of 12,000 rpm, it delivers both efficiency and durability.

W 61910 Bearing operates in temperatures from -30° to 120°C, suitable for various environments.
Its open seal type allows for easy maintenance and reduces operational costs.

The stainless steel cage keeps the balls aligned, minimising friction and extending service life.
This design ensures quiet operation, perfect for sensitive machinery.

Application

Industrial Uses of W 61910 Bearing
W 61910 Bearing is commonly used in industrial machinery like pumps and compressors, where its stainless steel construction resists corrosion in harsh environments. The single-row design ensures smooth radial load handling for consistent performance.

What Makes W 61910 Bearing a Preferred Choice?
In automotive applications, W 61910 Bearing fits well in electric motors and alternators, offering reliable operation under high speeds. Its metric dimensions make it a versatile option for various vehicle models.

Perfect Fit for Automation: W 61910 Bearing
For robotics and automation systems, W 61910 Bearing provides precise movement in components like robotic arms. The open seal type allows for easy lubrication, extending its service life.

Medical vs Industrial: Where W 61910 Bearing Excels
In medical devices, W 61910 Bearing’s stainless steel materials ensure hygiene and durability for equipment like centrifuges. Industrial settings benefit from its ability to handle moderate radial loads with low maintenance.

Where to Use W 61910 Bearing
Household appliances like washing machines often use W 61910 Bearing for its quiet operation and resistance to moisture. The compact size fits neatly into tight spaces without compromising performance.
