Stainless Steel Deep Groove Ball Bearings W 61908-2Z

The W 61908-2Z is a stainless steel deep groove ball bearing, measuring 40mm by 62mm by 12mm. It handles radial loads up to 2675 lbf and spins smoothly at speeds up to 12000 RPM.

Its shielded design keeps out dust and dirt, while the stainless steel construction resists corrosion. The bearing comes pre-lubricated with grease for easy maintenance.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. It works well in temperatures from -30°C to 120°C, suitable for food processing or marine applications.

Weighing just 0.11kg, it’s lightweight yet durable. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote

Description

Features

Application

Q&A

Product Parameters

Part Number W 61908-2Z
Brand TFL
Interchangeable SKF
Bore Dia 40 mm
Bore Dia Tolerance -0.012mm to 0
Outer Dia 62 mm
Outer Dia Tolerance -0.013mm to 0
Width 12 mm
Width Tolerance -0.12mm to 0
System of Measurement Metric
Bearing Type Ball
For Load Direction Radial
Construction Single Row
Seal Type Shielded
Tolerance Class P0
Radial Clearance Trade No CN
Ring Material Stainless Steel
Ball Material Stainless Steel
Cage Material Stainless Steel
Dynamic Radial Load 2675 lbf
Static Radial Load 2203 lbf
Temperature Range -30° to 120 °C
Lubrication Grease
RoHS Compliant
REACH Compliant
Max Speed 12000 rpm
Weight 0.11 kg

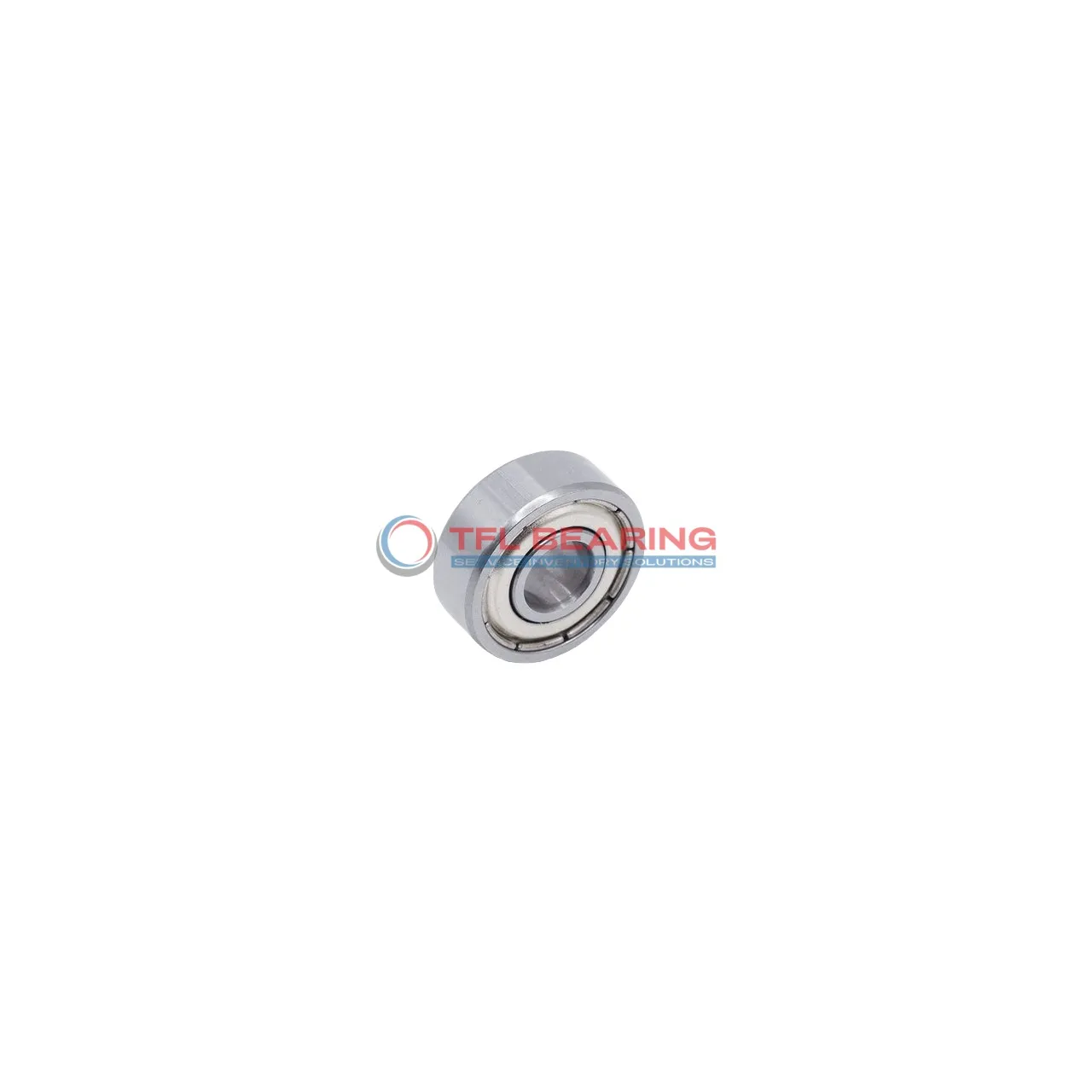

Stainless Steel Deep Groove Ball Bearings W 61908-2Z dimension drawing

Download DWG Download PDF

Features

Why Choose W 61908-2Z Bearing for Precision Tasks?

W 61908-2Z Bearing features stainless steel construction, offering excellent resistance to corrosion and wear.

Its shielded design helps keep contaminants out while retaining lubrication for smooth operation.

With a dynamic radial load capacity of 2675 lbf, it handles demanding radial loads with ease.

The bearing operates efficiently at speeds up to 12,000 rpm, making it suitable for high-speed applications.

Application

Key Fields for W 61908-2Z Bearing
W 61908-2Z Bearing is commonly used in industrial equipment like pumps and compressors, where its stainless steel construction resists corrosion in harsh environments. The shielded design helps keep contaminants out, extending its service life.

In automotive applications, W 61908-2Z Bearing fits well in electric motors and alternators, providing smooth rotation under radial loads. Its metric sizing ensures compatibility with a variety of vehicle designs.

For medical devices, W 61908-2Z Bearing offers reliable performance in equipment like centrifuges, where precision and hygiene are essential. The grease lubrication ensures quiet operation, ideal for sensitive environments.

In home appliances, W 61908-2Z Bearing can be found in washing machines and fans, where durability and low maintenance are key. The stainless steel materials prevent rust, even in humid conditions.
