Stainless Steel Deep Groove Ball Bearings W 61900-2Z

Stainless Steel Deep Groove Ball Bearings W 61900-2Z

The W 61900-2Z is a compact stainless steel deep groove ball bearing, measuring 10mm by 22mm by 6mm. It handles radial loads up to 526 lbf and spins smoothly at speeds up to 36,000 RPM.

Its shielded design keeps grease in and dirt out, making it low-maintenance. The all-stainless construction resists corrosion, ideal for damp or harsh environments.

This model is interchangeable with SKF bearings, offering a reliable alternative. Perfect for small machinery, electric motors, or medical devices where hygiene matters.

Weighing just 9.4 grams, it’s lightweight yet durable. Compliant with RoHS and REACH standards, it operates in temperatures from -30°C to 120°C.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number W 61900-2Z
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 10 mm
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 22 mm
  • Outer Dia Tolerance -0.009mm to 0
  • Width 6 mm
  • Width Tolerance -0.12mm to 0
  • System of Measurement Metric
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Shielded
  • Tolerance Class P0
  • Radial Clearance Trade No CN
  • Ring Material Stainless Steel
  • Ball Material Stainless Steel
  • Cage Material Stainless Steel
  • Dynamic Radial Load 526 lbf
  • Static Radial Load 281 lbf
  • Temperature Range -30° to 120 °C
  • Lubrication Grease
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 36000 rpm
  • Weight 0.0094 kg
  • Price（$） 6.58

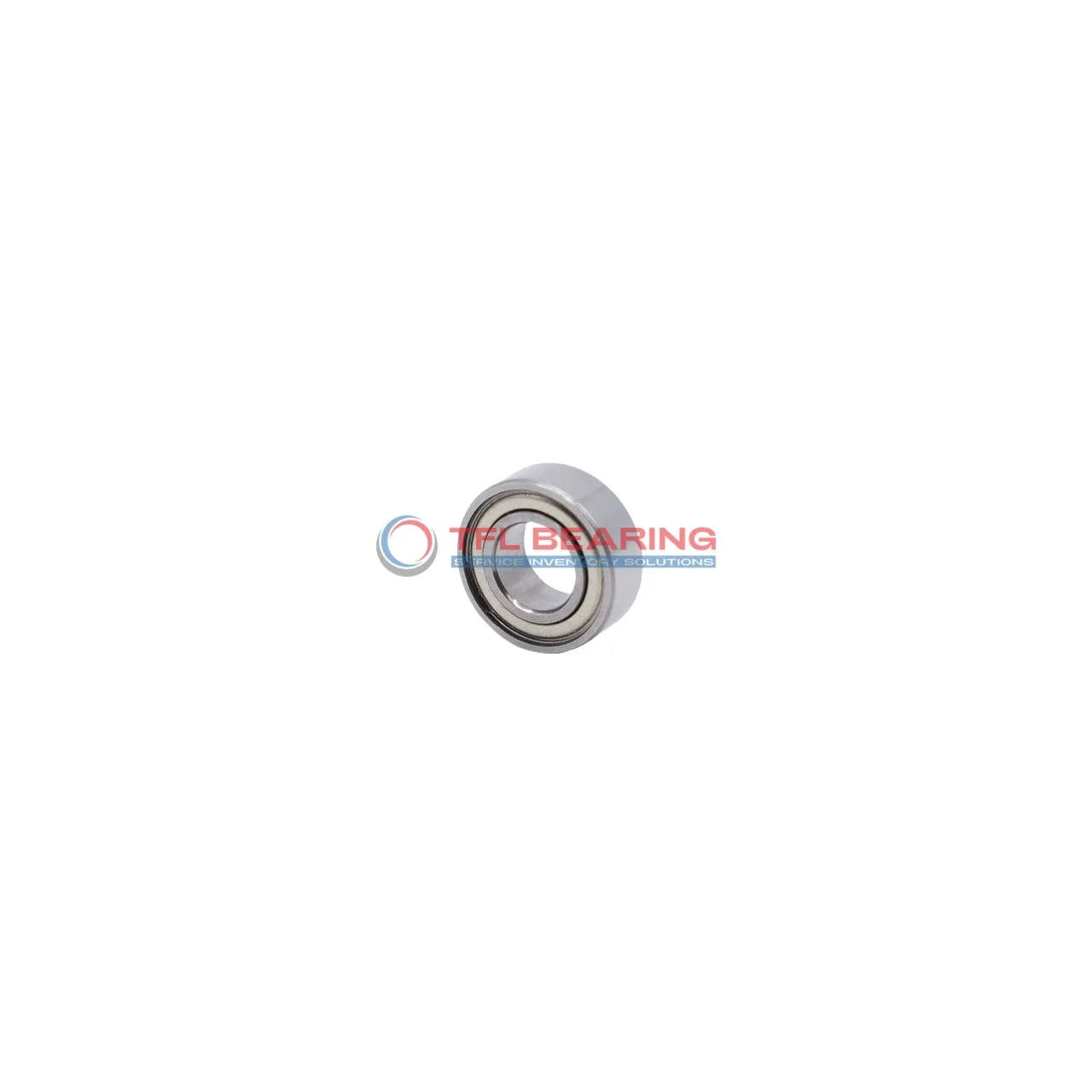

Stainless Steel Deep Groove Ball Bearings W 61900-2Z dimension drawing
Download DWG Download PDF

Features

Performance Features of W 61900-2Z Bearing

W 61900-2Z Bearing is crafted from stainless steel, offering excellent resistance to corrosion and wear.
Its shielded design protects against contaminants, ensuring smooth operation in various environments.

The bearing handles dynamic radial loads up to 526 lbf, making it suitable for demanding applications.
With a maximum speed of 36,000 rpm, it delivers reliable performance in high-speed scenarios.

W 61900-2Z Bearing’s compact size (10 mm×22 mm×6 mm) allows for easy integration into tight spaces.
Its grease lubrication reduces maintenance needs, providing long-lasting efficiency.

Application

Common Applications of W 61900-2Z Bearing
W 61900-2Z Bearing is widely used in small electric motors, such as those found in household appliances like blenders and mixers. Its stainless steel construction ensures resistance to corrosion, making it ideal for damp environments.

In industrial settings, W 61900-2Z Bearing fits well in compact machinery where space is limited, such as conveyor belt rollers. The shielded design helps keep contaminants out, extending the bearing’s lifespan.

For medical devices, W 61900-2Z Bearing provides smooth operation in equipment like dental drills or lab centrifuges. Its grease lubrication ensures quiet performance, which is essential in sensitive environments.

Automotive applications include small components like window regulators or wiper motors, where reliability and low maintenance are key. The metric sizing makes it easy to integrate into various vehicle designs.
